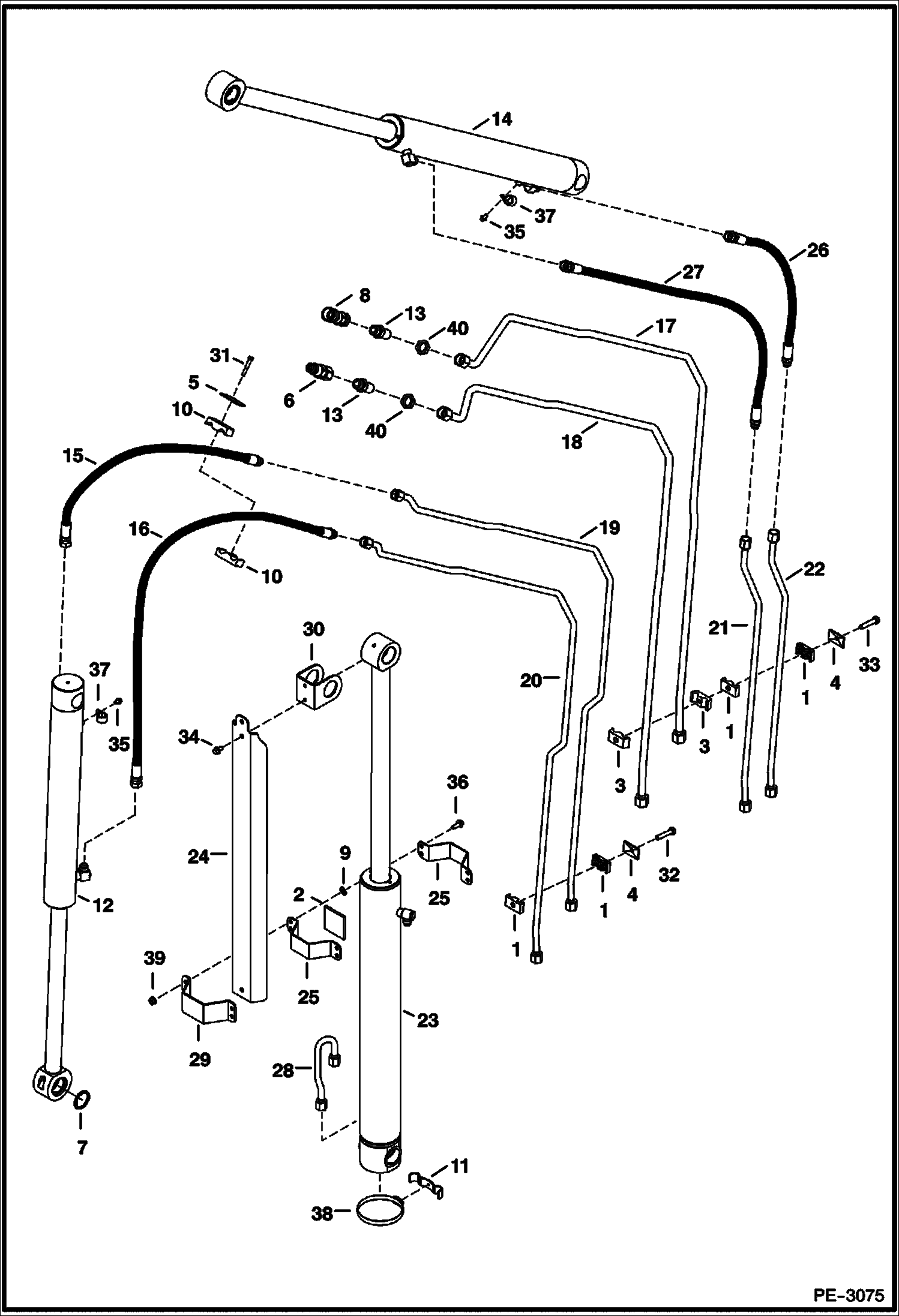

Запчасти Bobcat 335 HYDRAULIC CIRCUITRY (Work Contd) HYDRAULIC SYSTEM

1

6577697

CLAMP

2

6578278

PAD

3

6592506

CLAMP

4

6652521

PLATE

5

6653493

COVER

6

6674688

COUPLER, FF MALE straight - Was 6667808 - A

7

6669287

SEAL

8

6672960

COUPLER, FF FEMALE straight

9

6674264

RETAINER NUT

10

6683610

CLAMP

11

6806461

CLAMP

12

CYLINDER See Illustration BUCKET CYLINDER/ PE2005 Also Order Ref 7 (2)

13

6812823

ADAPTER

13

79K12

O RING 10

14

CYLINDER See Illustration ARM CYLINDER/ PE2003

15

6814098

HOSE std arm

15

7100898

HOSE long arm

16

6814099

HOSE std arm

16

7100899

HOSE long arm

17

6814345

TUBE

18

6814346

TUBE

19

6814347

TUBE

20

6814348

TUBE

21

6814349

TUBE

22

6814350

TUBE

23

CYLINDER

24

6814642

CHANNEL

25

6814644

CLAMP

26

6815301

HOSE

27

6815302

HOSE

28

6815315

TUBE

29

6815936

CLAMP

30

6816283

CHANNEL

31

17C532

BOLT 5

32

1CM1050

SCREW

33

1CM1090

BOLT

34

26GM10020

BOLT

35

29CM812

BOLT

36

29CM1025

BOLT

37

30H49

CLAMP

38

42H72

CLAMP

39

51DM10

NUT

40

86F8

NUT 5
