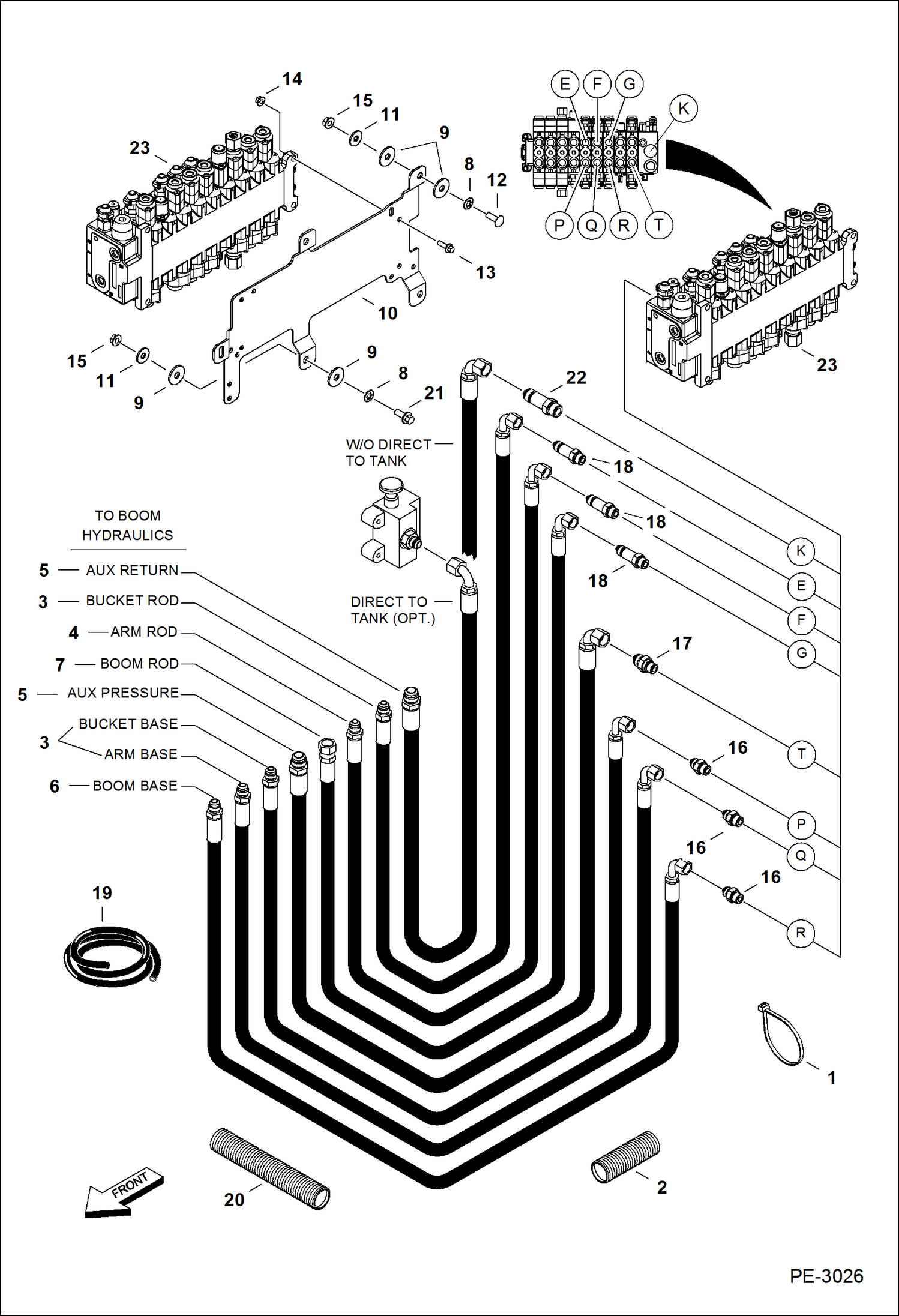

Запчасти Bobcat 335 HYDRAULIC CIRCUITRY (Work) HYDRAULIC SYSTEM

1

6624289

STRAP, TIE

2

CONDUIT NLA - 7.5'' (191 mm) long - Order Ref. 19

3

7128693

HOSE

4

7128694

HOSE

5

7128695

HOSE

6

7128696

HOSE

7

7128697

HOSE

8

6674264

RETAINER NUT

9

6806720

INSULATOR

10

7123862

MOUNT

11

17EM100

WASHER

12

21CM1035

BOLT

13

29CM825

BOLT

14

43DM8

NUT

15

51DM10

NUT

16

15KB0808

FITTING, HYD CONNECTOR

16

79K8

O RING 10

17

15KB1008

FITTING, HYD CONNECTOR

17

79K8

O RING 10

18

16KB0808

FITTING, HYD CONNECTOR

18

79K8

O RING 10

19

6643249

CONDUIT bulk - sold per foot

20

CONDUIT NLA - 13'' (330 mm) long - Order Ref. 19

21

29CM1025

BOLT Was 59CM1035 - B

22

16KB1008

FITTING, HYD ELBOW

23

6690475

VALVE, CONTROL See Illustration CONTROL VALVE/ MS2272
