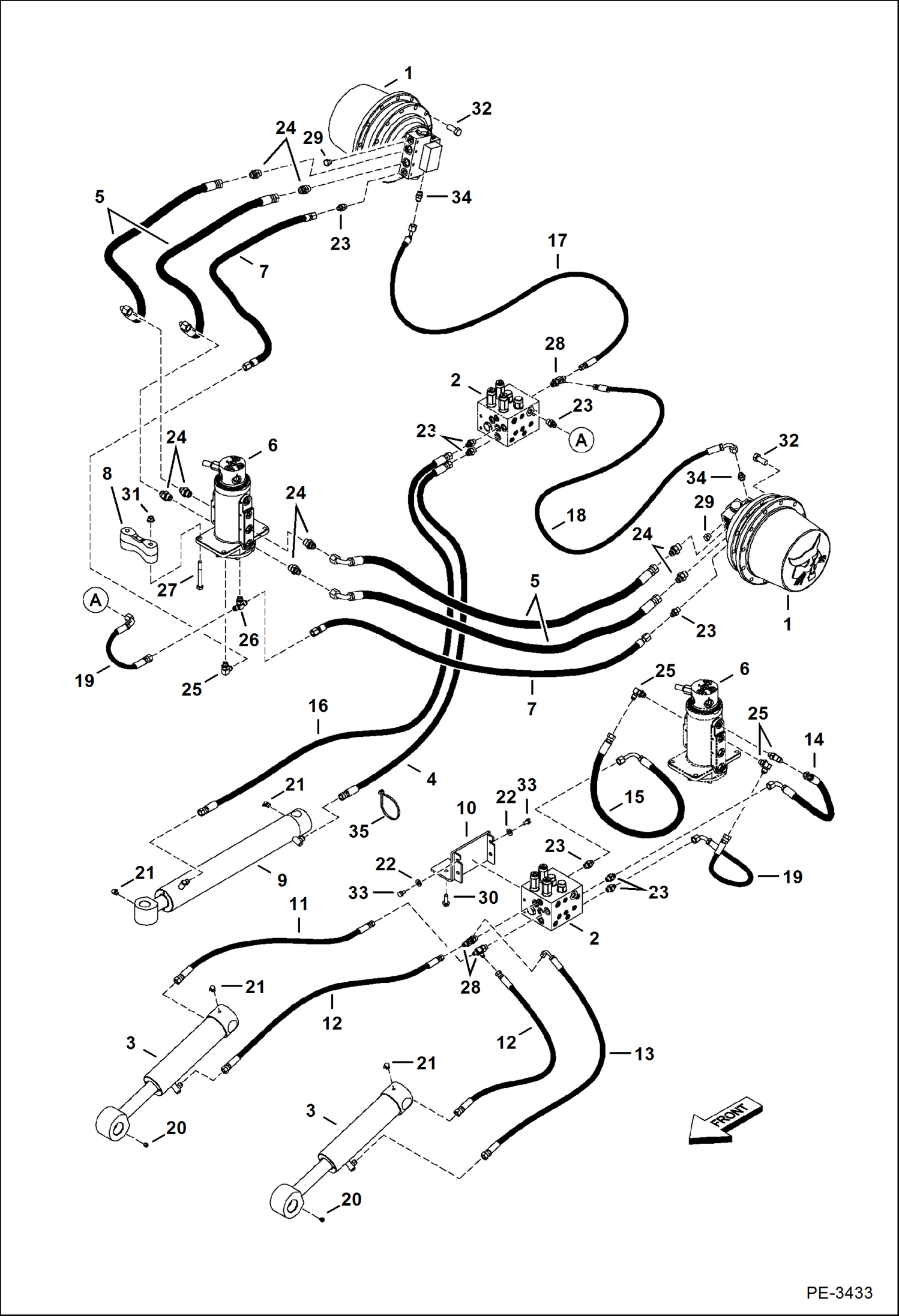

Запчасти Bobcat 335 HYDRAULIC CIRCUITRY (Lower)(W/Angle Blade Option) HYDRAULIC SYSTEM

1

6691497

DRIVE MOTOR See Illustration TRAVEL MOTOR/ D2403

2

6691716

VALVE See Illustration ANGLE BLADE VALVE/ MS2585

3

7121065

CYL ASMBLY blade

4

7152118

HOSE, HYD

5

7101091

HOSE

6

7123864

SWIVEL ASSY

7

7123871

HOSE

8

7128115

BLOCK MACH

9

7134017

CYLINDER angle blade

10

7139102

MOUNT

11

7139106

HOSE

12

7139107

HOSE

13

7139108

HOSE

14

7139109

HOSE

15

7139110

HOSE

16

7152119

HOSE, HYD

17

7143783

HOSE

18

7143784

HOSE

19

7143793

HOSE

20

10H25

FITTING, GREASE 5

21

12H15

FITTING, GREASE 5

22

15EM80

WASHER

23

15KB0606

FITTING, HYD CONNECTOR

23

79K6

O RING 10

24

15KB0808

FITTING, HYD CONNECTOR

24

79K8

O RING 10

25

17KB0606

FITTING

25

79K6

O RING 10

26

19KB0606

TEE

26

79K6

O RING 10

27

1CM1090

BOLT

28

21KB0406

FTG HYD STRAIGHT TEE

28

79K6

O RING 10

29

24K5

PLUG

29

79K6

O RING 10

30

26GM10030

BOLT

31

51DM10

NUT

32

55CM1435

SCREW

33

55CM816

BOLT

34

NIPPLE See Illustration TRAVEL MOTOR/ D2403

35

6678669

STRAP
