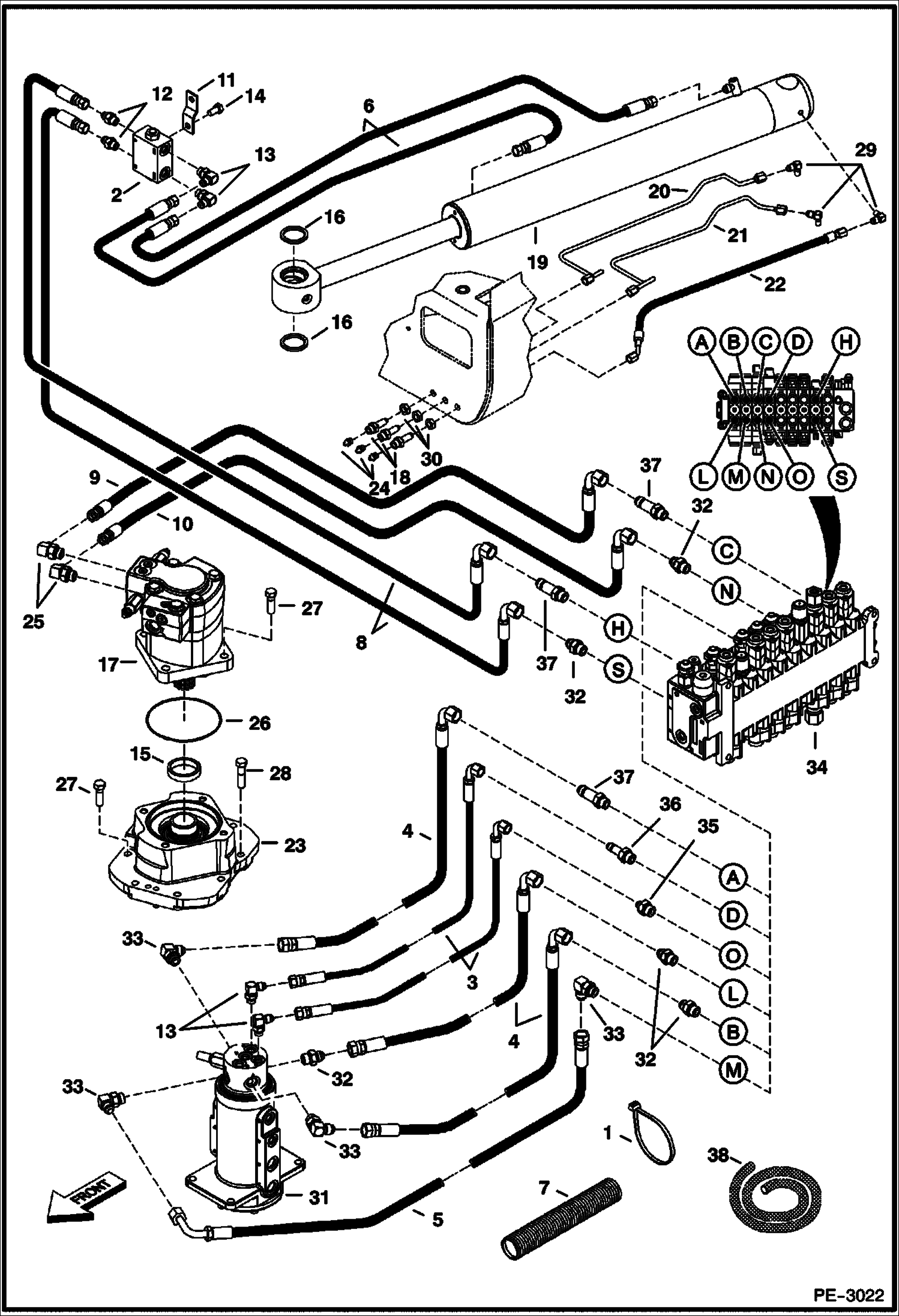

Запчасти Bobcat 335 HYDRAULIC CIRCUITRY (Upper/Swing) HYDRAULIC SYSTEM

1

6624289

STRAP, TIE

2

6676167

VALVE See Illustration LOCK VALVE/ C3475

3

6808696

HOSE

4

6808697

HOSE

5

6808698

HOSE

6

6809093

HOSE

7

CONDUIT NLA - 7.5''(191mm) long - Order Ref 38

8

6815034

HOSE

9

6817819

HOSE

10

6817820

HOSE

11

7106777

BRACKET

12

15KB0606

FITTING, HYD CONNECTOR

12

79K6

O RING 10

13

17KB0606

FITTING

13

79K6

O RING 10

14

1CM1020

BOLT

15

6513681

BEARING

16

6660075

SEAL

17

7001956

MOTOR SLEW See Illustration SWING MOTOR/ MS1847 - Also Order Ref 15 - Was 6690316 - A

18

6807184

FITTING

19

CYLINDER See Illustration SWING CYLINDER/ PE3653

20

7102801

TUBE

21

7102802

TUBE

22

7106607

HOSE

23

7123865

CARRIER ASSY See Illustration MOTOR CARRIER/ PE2446

24

10H25

FITTING, GREASE 5

25

17KB0608

FITTING, HYD ELBOW

25

79K8

O RING 10

26

25K30508

O-RING, 10

27

55CM1240

SCREW

28

55CM1250

SCREW

29

83F3

ELBOW 5

30

86F3

LOCKNUT

31

7123864

SWIVEL ASSY See Illustration SWIVEL JOINT/ PE3057

32

15KB0808

FITTING, HYD CONNECTOR

32

79K8

O RING 10

33

17KB0808

FITTING, HYD ELBOW

33

79K8

O RING 10

34

6690475

VALVE, CONTROL See Illustration CONTROL VALVE/ MS2272

35

15KB0608

FITTING, HYD CONNECTOR

35

79K8

O RING 10

36

16KB0608

FITTING, HYD CONNECTOR

36

79K8

O RING 10

37

16KB0808

FITTING, HYD CONNECTOR

37

79K8

O RING 10

38

6643249

CONDUIT bulk - sold per foot
