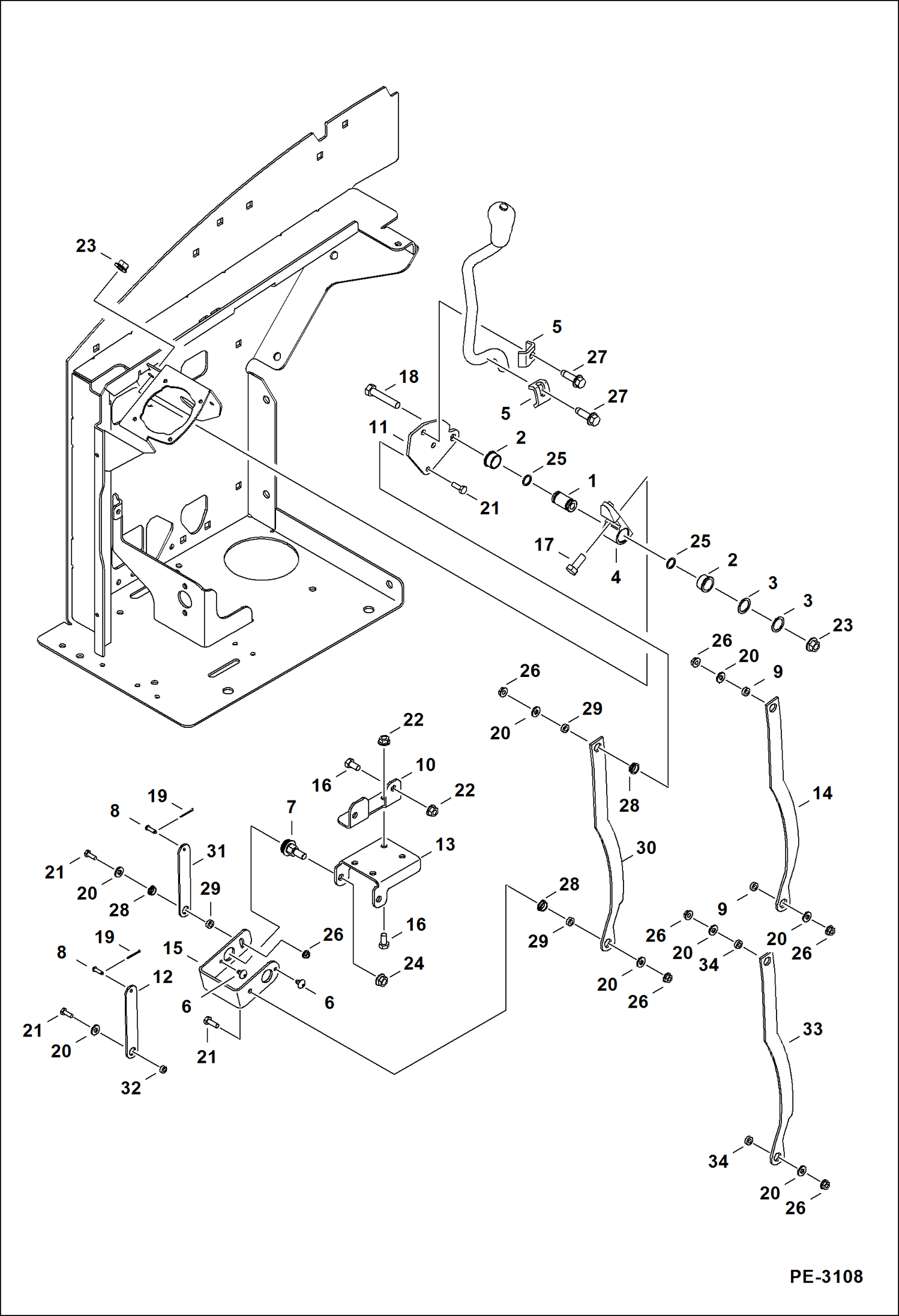

Запчасти Bobcat 335 CONTROLS (Blade) CONTROLS

1

6536545

SLEEVE

2

6536801

BUSHING

3

6536802

WASHER

4

6537481

MOUNT

5

6562266

CLAMP

6

6589675

SCREW

7

6675992

BEARING

8

6801068

PIN

9

6808003

SPACER Use only W/Ref. 14 (7134332 link) - Use W/O Ref. 28

10

7133567

ANGLE

11

7100534

PLATE

11

7137687

PLATE

12

LINK NLA - original design Use W/O Ref. 28 - Order Ref. 28, 29, & 31 - Was 7134058 - A

13

7134197

SUPPORT

14

7134332

LINK Use W/ 6808003 spacer

15

7134200

CHANNEL

16

1CM816

BOLT

17

1CM1025

BOLT

18

1CM1055

BOLT

19

1F212

PIN

20

25E13

WASHER 5

21

2C412

SCREW

22

51DM8

NUT Was 43DM8 - A

23

51DM10

NUT Was 43DM10 - A

24

83D6

NUT 5 Was 57D6 - A

25

58K015

O-RING 10

26

98D4

NUT Was 62D4 - A

27

84G3720

BOLT

28

6698186

BEARING, CLIP modified design - Use W/Ref. 29-31

29

7155449

SPACER modified design

30

7157678

LINK, FORMED modified design - Use W/Ref. 28

31

7157677

LINK, SPOOL modified design - Use W/Ref. 28

32

SPACER NLA- original design - Order Ref. 28, 29, & 31 - Was 6808003 - A

33

LINK NLA - original design Use W/O Ref. 28 - Order Ref. 28-30 - Was 7137688 - A

34

SPACER NLA- original design Use W/O Ref. 28 - Order Ref. 28-30 - Was 6808003 - A
