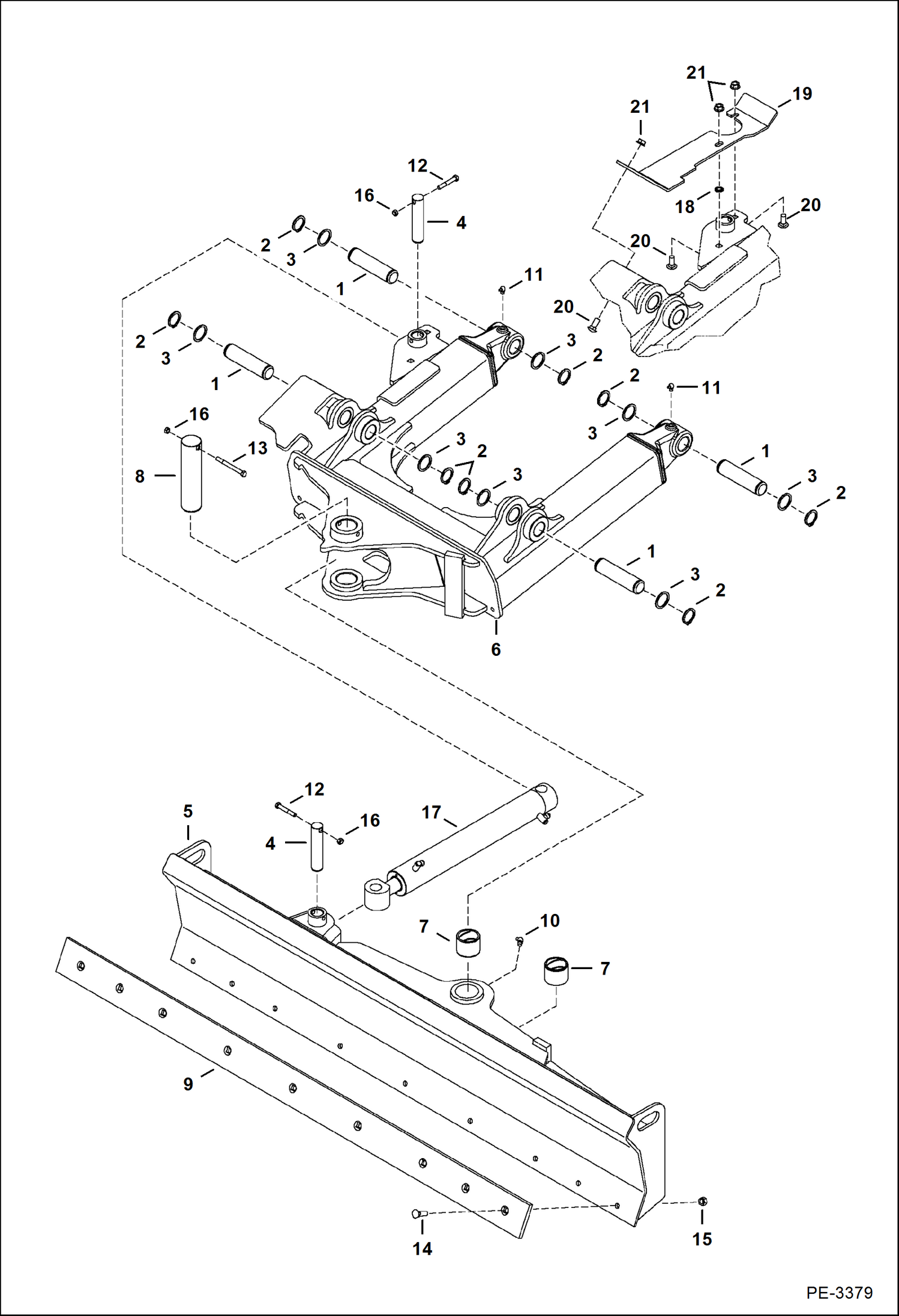

Запчасти Bobcat 335 ANGLE BLADE (S/N A16U11543 & Above) WORK EQUIPMENT

1

6597461

PIN

2

6665618

RING

3

6666549

WASHER

4

6702935

PIN, PIVOT

5

7139138

BLADE FACE W/Ref. 7

6

7139139

BLADE ARM

7

7139166

BUSHING

8

7139167

PIN

9

7143432

EDGE, CUTTING BOLT ON 70''

10

11H15

GREASE FITTING

11

12H15

FITTING, GREASE 5

12

17C640

BOLT 5

13

17C664

BOLT

14

39C828

BOLT

15

63D8

NUT

16

85D6

NUT, 5

17

7134017

CYLINDER

18

6685062

RETAINER Was 6697963 - A

19

7152788

GUARD, ANGLE BLADE

20

37C820

BOLT

21

97D8

NUT
