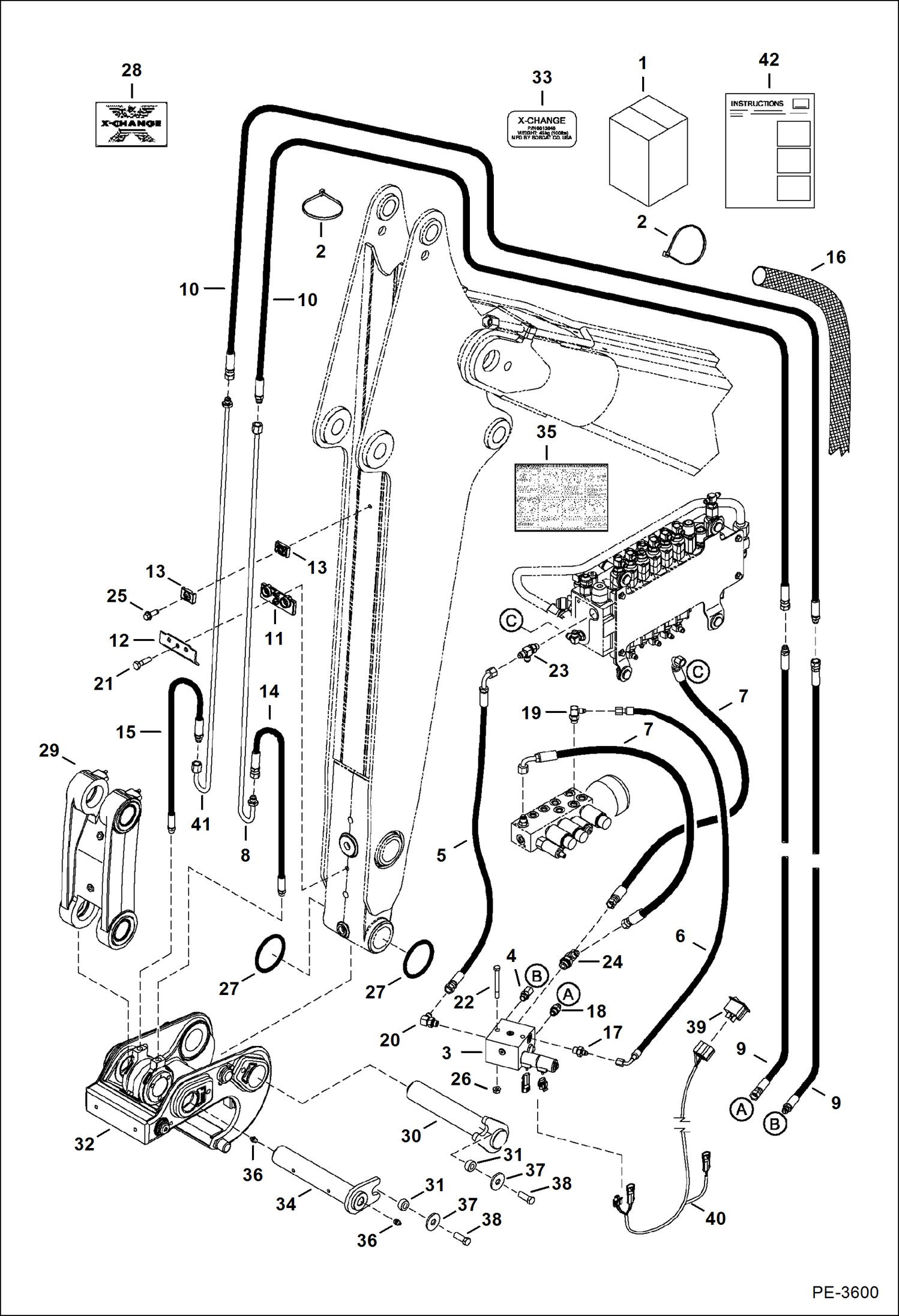

Запчасти Bobcat 335 X-CHANGE (Hydraulic) (Kit) ACCESSORIES & OPTIONS

1

7137342

KIT, X-CHANGE HYD SHORT ARM for standard arm - W/Ref. 2-42

1

7137343

KIT, X-CHANGE HYD LONG ARM for long arm - W/Ref. 2-42

2

6624289

STRAP, TIE

3

6688821

MANIFOLD See Illustration X-CHANGE/ MS1461

4

6732089

CONNECTOR

4

79K4

O RING 10

5

6813911

HOSE

6

7106588

HOSE

7

7108586

HOSE

8

7115617

TUBELINE

9

7114637

HOSE

10

7140688

HOSE for standard arm

10

7140689

HOSE for long arm

11

7114712

CLAMP

12

7114713

PLATE COVER

13

7115645

CLAMP

14

7117184

HOSE

15

7117185

HOSE

16

7120119

GUARD

17

15KB0406

FTG HYD S CONNECTOR

17

79K6

O RING 10

18

15KB0606

FITTING, HYD CONNECTOR

18

79K6

O RING 10

19

17KB0406

FITTING, HYD ELBOW

19

79K6

O RING 10

20

17KB0606

FITTING

20

79K6

O RING 10

21

1CM1040

BOLT

22

1CM880

BOLT

23

21KB0606

FTG HYD STRAIGHT TEE

23

79K6

O RING 10

24

21KB0608

FTG Hyd Straight Tee

24

79K8

O RING 10

25

26GM10030

BOLT

26

43DM8

NUT

27

6674145

O-RING

28

6803760

DECAL X-Change

29

LINK See Illustration X-CHANGE/ PE2630 NLA - Order components - Was 6813005 - A

30

6813401

PIN

31

6816368

SPACER

32

7135873

X-CHG SWIVEL ASSY See Illustration X-CHANGE/ PE2630

33

7116756

DECAL X-Change

34

7121252

PIN

35

7134587

DECAL, X-CHANGE using X-Change

36

10H25

FITTING, GREASE 5

37

17EM120

WASHER

38

1CM1235

BOLT

39

6688667

SWITCH

40

7113694

HARNESS

41

7115618

TUBELINE

42

6904972

INSTRUCTIONS
