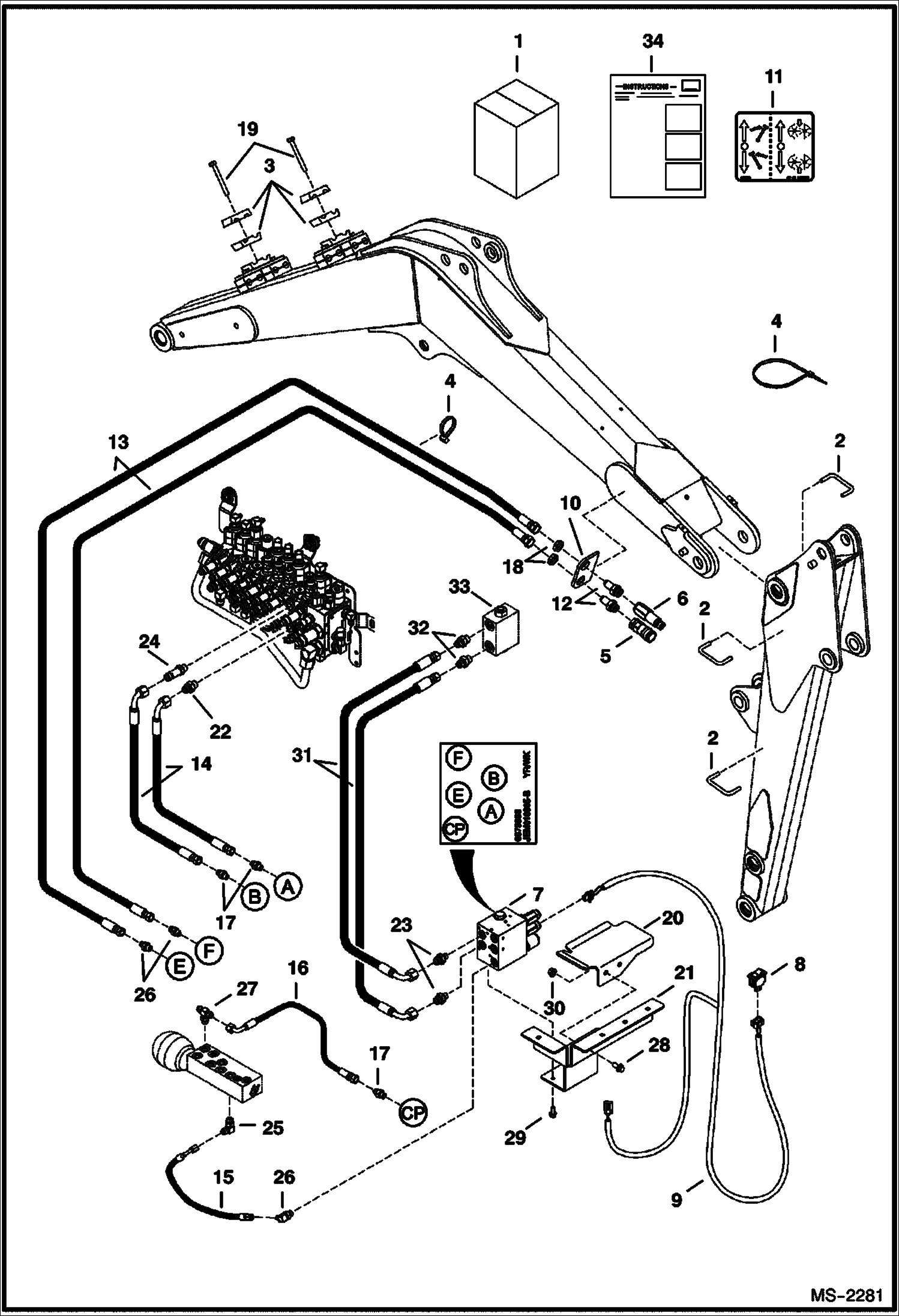

Запчасти Bobcat 335 SECONDARY AUXILIARY (Kit) ACCESSORIES & OPTIONS

1

7132590

KIT, SECOND AUX.

2

6586391

GUIDE weld-on

3

6592506

CLAMP

4

6624289

STRAP, TIE

5

6672960

COUPLER, FF FEMALE straight

6

6674688

COUPLER, FF MALE straight

7

6679888

VALVE ASSY See Illustration SECONDARY AUXILIARY VALVE/ MS1471

8

6679906

SWITCH

9

6958338

HARNESS

10

6958354

PLATE

11

6958363

DECAL

12

6812816

ADAPTER

12

79K12

O RING 10

13

7132589

HOSE

14

6958350

HOSE

15

6958351

HOSE

16

6958352

HOSE

17

15KB0606

FITTING, HYD CONNECTOR

17

79K6

O RING 10

18

86F7

LOCK NUT

19

1CM8100

SCREW

20

7162987

BRACKET, BATTERY Was 7109867 - A

21

7162986

BRACKET, BATTERY Was 7110808 - A

22

15KB0608

FITTING, HYD CONNECTOR

22

79K8

O RING 10

23

15KB0806

FITTING, HYD CONNECTOR

23

79K6

O RING 10

24

16KB0608

FITTING, HYD CONNECTOR

24

79K8

O RING 10

25

17KB0606

FITTING

25

79K6

O RING 10

26

17KB0406

FITTING, HYD ELBOW

26

79K6

O RING 10

27

19KB0406

FITTING, HYD TEE

27

79K6

O RING 10

28

29CM1020

BOLT

29

35C512

BOLT

30

43DM10

NUT

31

HOSE See Illustration HYDRAULIC CIRCUITRY/ PE3022 existing part

32

FITTING See Illustration HYDRAULIC CIRCUITRY/ PE3022 existing part

33

VALVE See Illustration HYDRAULIC CIRCUITRY/ PE3022 existing part

34

6904917

INSTRUCTIONS
