Запчасти Bobcat 335 EUROPEAN ACCESSORIES (Slew Lock) ACCESSORIES & OPTIONS

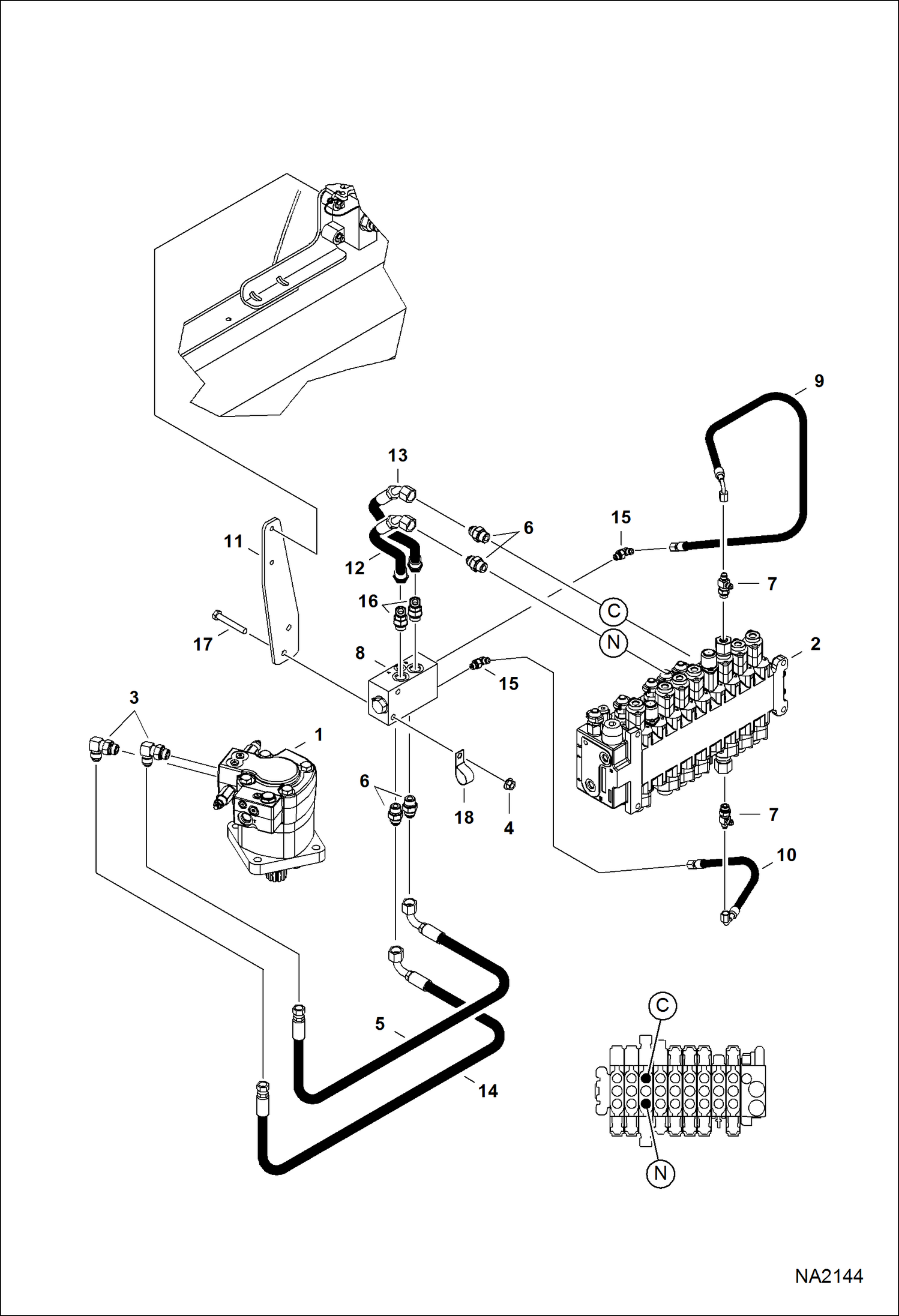

Схема запчастей Bobcat 335 - EUROPEAN ACCESSORIES (Slew Lock) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

6690316

MOTOR SLEW See Illustration SWING MOTOR/ MS1847

2

6690475

VALVE, CONTROL See Illustration CONTROL VALVE/ MS2272

3

17KB0608

FITTING, HYD ELBOW

3

79K8

O RING 10

4

51DM10

NUT

5

6817820

HOSE

6

15KB0808

FITTING, HYD CONNECTOR

6

79K8

O RING 10

7

21KB0406

FTG HYD STRAIGHT TEE

7

79K6

O RING 10

8

7003480

VALVE, LOCK SLEW See Illustration EUROPEAN ACCESSORIES/ NA1334

9

7107666

HOSE

10

7125143

HOSE

11

7170338

BRACKET

12

7170906

HOSE, HYD ASSY

13

7170907

HOSE, HYD ASSY

14

7170908

HOSE, HYD ASSY

15

17KB0404

FTG HYD ELBOW 90

15

79K4

O RING 10

16

18KB0808

FTG HYD ELBOW 45

16

79K8

O RING 10

17

1CM1070

BOLT

18

30HJ616

CLIP

Выбрано товаров: 23
