Запчасти Bobcat 335 A/C UPGRADE KIT ACCESSORIES & OPTIONS

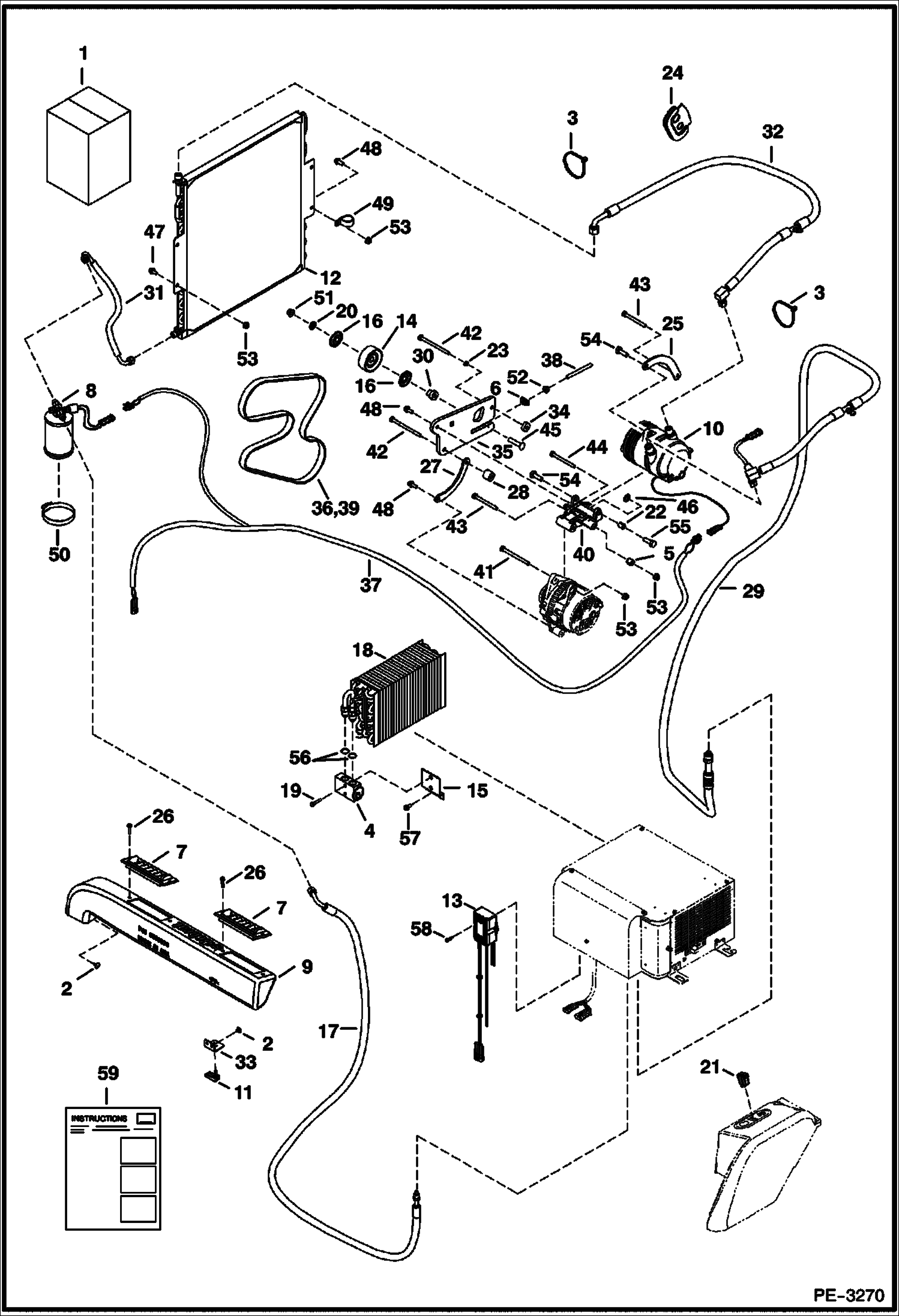

Схема запчастей Bobcat 335 - A/C UPGRADE KIT ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

7137271

KIT A/C UPGRADE W/Ref. 2-56 & 59

2

6589675

SCREW

3

6624289

STRAP, TIE

4

6675534

BLOCK, VALVE A/C

5

6675838

BUSHING

6

6676169

NUT

7

6676713

LOUVER

8

6680311

RECEIVER

9

6680976

DUCT

10

6681716

COMPRESSOR, A/C

11

6681878

LATCH

12

6682037

CONDENSER

13

6683004

THERMOSTAT

14

6684418

IDLER

15

6684559

BRACKET

16

6685132

SHIELD

17

6688529

HOSE

18

6691533

EVAPORATOR

19

6691534

SCREW

20

6704444

WASHER

21

7169112

SWITCH, ROCKER A/C Was 6719176 - A

22

6732732

BUSHING

23

6807220

SPACER

24

6808436

GROMMET

25

6813975

PLATE

26

6814024

SCREW

27

6814859

TENSIONER

28

6814861

SPACER

29

6816871

HOSE W/ 6679085 switch

29

6679085

SWITCH

29

6697949

HOSE, A/C Use on 337 & 341

29

7001433

CAP, END charge port cap

30

6817028

SPACER

31

6817088

HOSE

32

6817091

HOSE

32

6697948

HOSE, A/C Use on 337 & 341

32

7001433

CAP, END charge port cap

33

6817093

ANGLE

34

6818176

SPACER

35

7151981

TENSIONER W/A

35

6818217

TENSIONER not used on this model - used on older models

36

6818326

BELT

36

6697876

BELT EMEA Only

36

6697879

BELT, A/C not used on this model

37

6818334

HARNESS

38

6818366

SCREW

39

7101068

BELT not used on this model - used on older models

40

7103231

BRACKET

41

1CM8100

SCREW

42

1CM8110

HEX CAP S

43

1CM880

BOLT

44

1CM885

BOLT

45

28CM1050

BOLT

46

29E6

WASHER Was 28E6 - A

47

29CM816

SCREW

48

29CM820

SCREW

49

30H57

CLAMP

50

42H48

CLAMP 5

51

43DM10

NUT

52

43DM8

NUT

53

51DM8

NUT

54

5CM1025

BOLT

55

5CM1035

BOLT

56

7009977

O-RING #8 - Was 6675538 - A

57

6691532

SCREW not in kit

58

6684556

SCREW not in kit

59

6904991

INSTRUCTIONS

Выбрано товаров: 67
