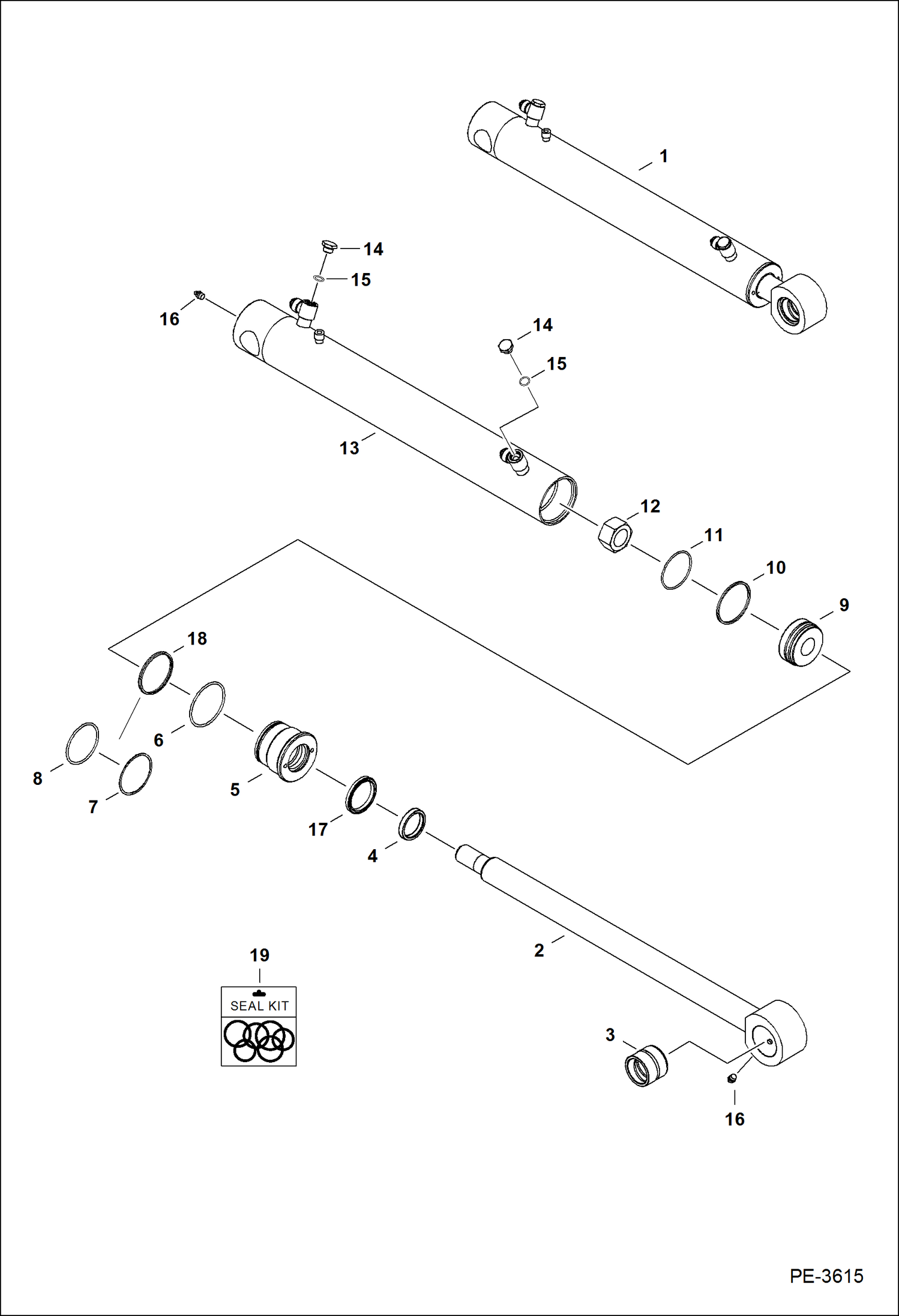

Запчасти Bobcat 335 BUCKET CYLINDER HYDRAULIC SYSTEM

1

7148324

CYLINDER W/Ref. 4-18 - Also Order Ref. 3 & (2) of 6669287 dust seals

2

7148325

ROD Also Order Ref. 3, 16, & (2) of 6669287 dust seal

3

6802371

BUSHING wear

4

6686999

WIPER, ROD CYL

5

6812526

HEAD

6

58K234

O RING 10

7

73K232

RING, BACK-UP back-up

8

25K40224

O RING 10

9

7147312

PISTON

10

25K30218

O RING 10

11

947088

RING, BACK-UP

12

6810540

NUT

13

HOUSING NLA - Order Ref. 1 - Was 6812522 - A

14

6812171

PLUG W/Ref 15

15

75K6

O-RING

16

10H25

FITTING, GREASE 5 grease

17

6667327

SEAL rod

18

7008355

SEAL, QUAD

19

7225639

KIT, SEAL Ref. 4, 6-8, 10-12 & 17 - Was 7137945 - A
