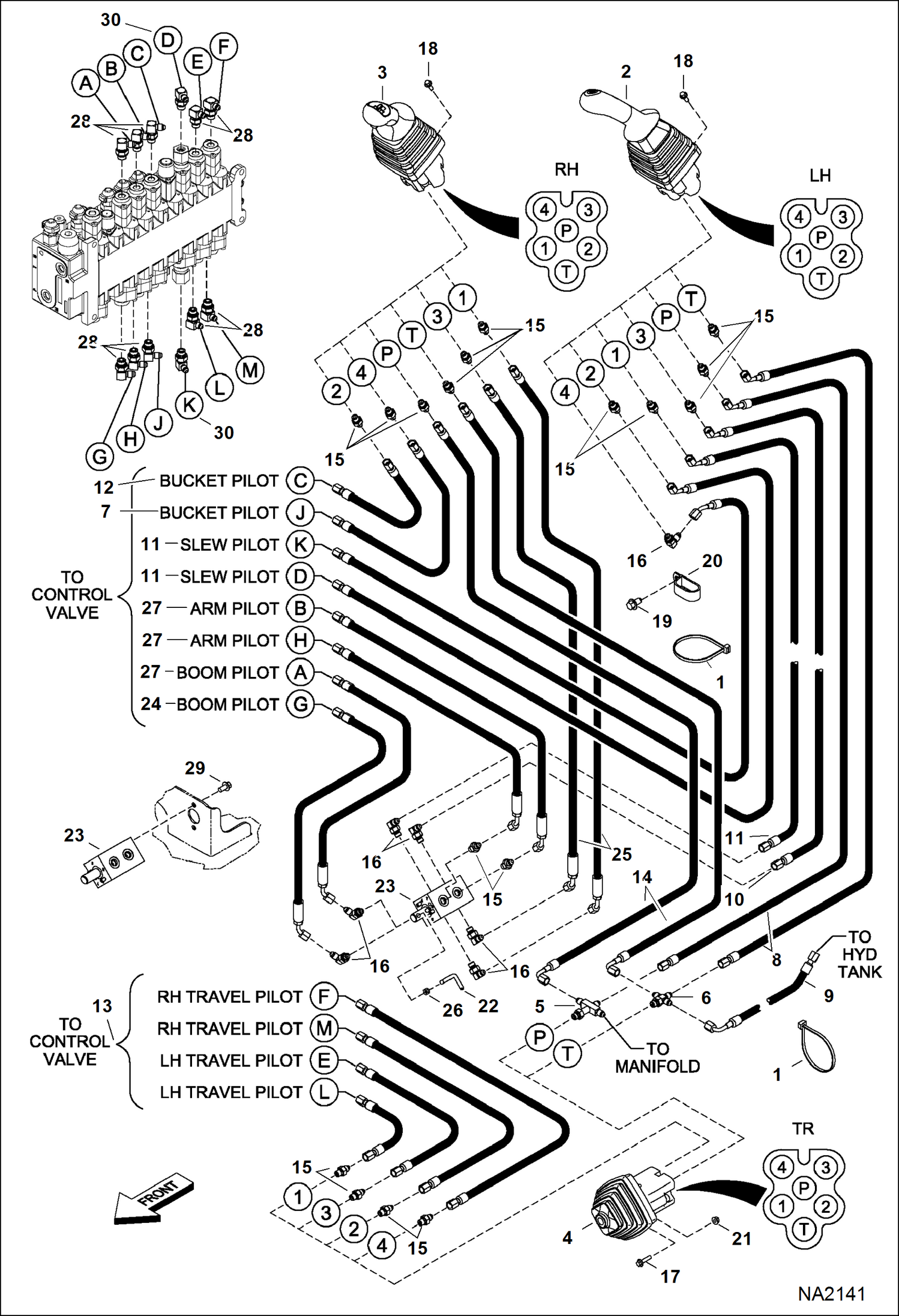

Запчасти Bobcat 335 HYDRAULIC CIRCUITRY (Pilot ISO/STD) HYDRAULIC SYSTEM

1

6624289

STRAP, TIE

2

6677894

JOYSTICK See Illustration LH JOYSTICK/ MS1354

3

6677895

JOYSTICK See Illustration RH JOYSTICK/ MS1352

4

6677896

JOYSTICK See Illustration TRAVEL CONTROLLER/ MS1351

5

6812829

CROSS

5

79K4

O RING 10

6

6812830

CROSS

6

79K4

O RING 10

7

7106604

HOSE

8

7106606

HOSE

9

7106608

HOSE

10

7106612

HOSE

11

7106614

HOSE

12

7106615

HOSE

13

7107647

HOSE

14

7107649

HOSE

15

15KB0404

FTG HYD S Connector

15

79K4

O RING 10

16

17KB0404

FTG HYD ELBOW 90

16

79K4

O RING 10

17

17C416

BOLT

18

26GM6020

SCREW

19

26GM8013

BOLT

20

30H85

CLAMP

21

83D4

NUT 10

22

6804251

HANDLE

23

6805768

VALVE See Illustration SELECTOR VALVE ASSY/ TS1353

24

7106619

HOSE

25

7106620

HOSE

26

53DM6

NUT Was 1DM6 - A

27

7106621

HOSE

28

7124150

ELBOW

28

79K6

O RING 10

29

29CM816

SCREW

30

7124150

ELBOW

30

TEE See Illustration EUROPEAN ACCESSORIES/ NA2144 - for Europe slew lock option

30

79K6

O RING 10
