Запчасти Bobcat 335 HYDRAULIC CIRCUITRY (Pilot) HYDRAULIC SYSTEM

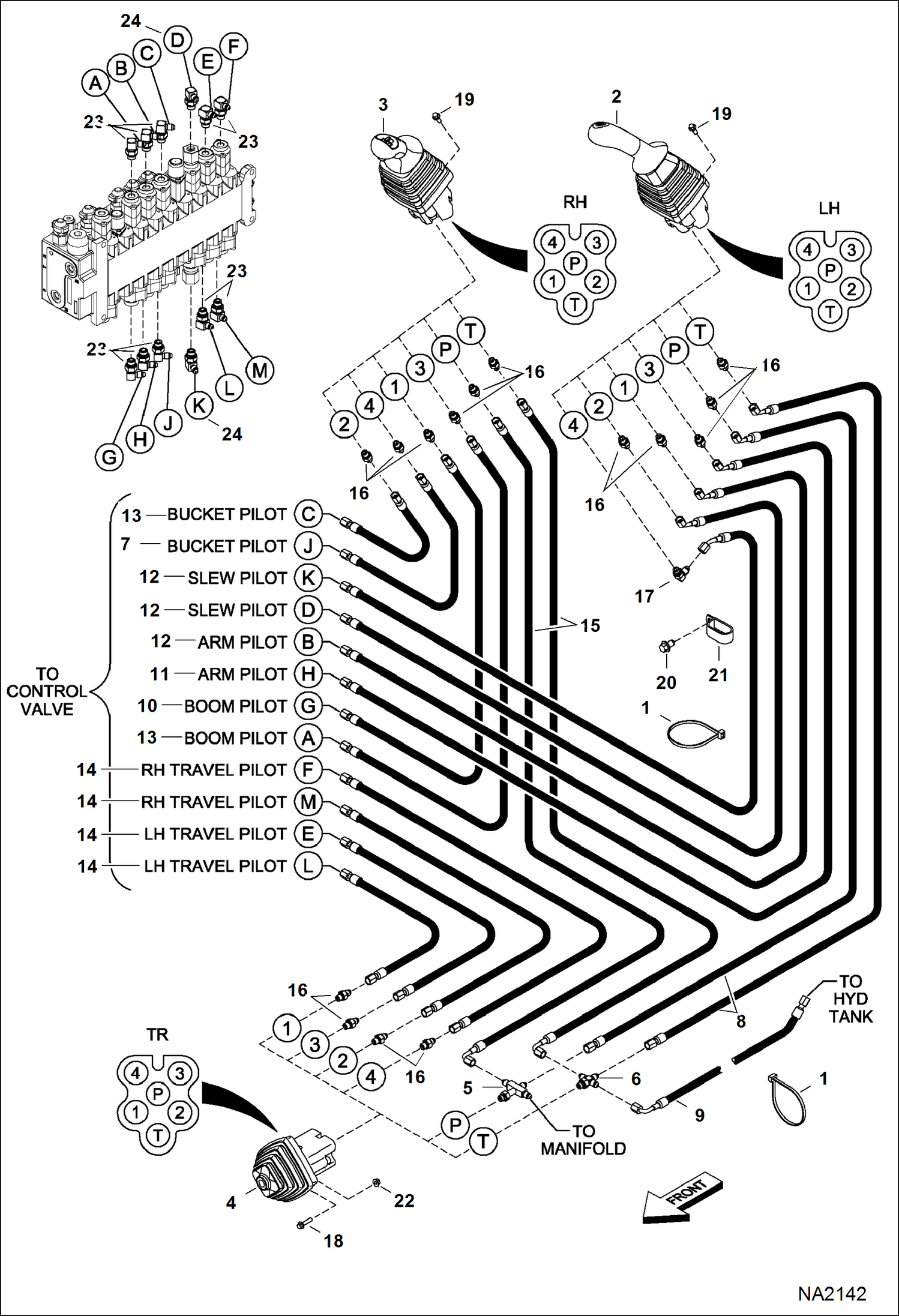

Схема запчастей Bobcat 335 - HYDRAULIC CIRCUITRY (Pilot) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6624289

STRAP, TIE

2

6677894

JOYSTICK See Illustration LH JOYSTICK/ MS1354 LH

3

6677895

JOYSTICK See Illustration RH JOYSTICK/ MS1352 RH

4

6677896

JOYSTICK See Illustration TRAVEL CONTROLLER/ MS1351 travel

5

6812829

CROSS

5

79K4

O RING 10

6

6812830

CROSS

6

79K4

O RING 10

7

7106604

HOSE

8

7106606

HOSE

9

7106608

HOSE

10

7106611

HOSE

11

7106612

HOSE

12

7106614

HOSE

13

7106615

HOSE

14

7107647

HOSE

15

7107649

HOSE

16

15KB0404

FTG HYD S Connector

16

79K4

O RING 10

17

17KB0404

FTG HYD ELBOW 90

17

79K4

O RING 10

18

17C416

BOLT

19

26GM6020

SCREW

20

26GM8013

BOLT

21

30H85

CLAMP

22

83D4

NUT 10

23

7124150

ELBOW

23

79K6

O RING 10

24

7124150

ELBOW

24

TEE See Illustration EUROPEAN ACCESSORIES/ NA2144 - for Europe slew lock option

24

79K6

O RING 10

Выбрано товаров: 31
