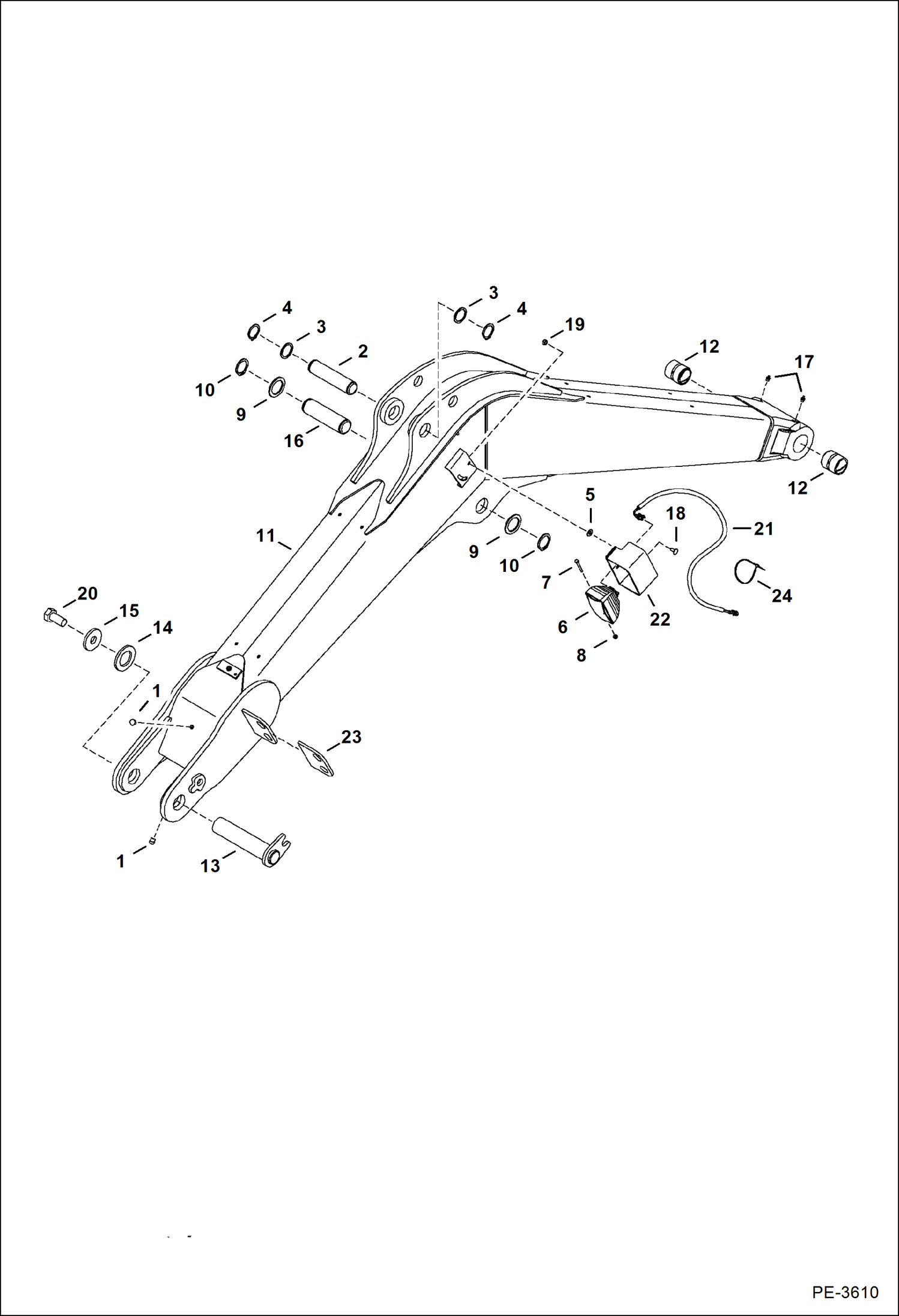

Запчасти Bobcat 335 BOOM WORK EQUIPMENT

1

6597572

BUMPER

2

6628002

PIN

3

6628547

WASHER

4

6668787

RING

5

6675859

RETAINER

6

6691410

LIGHT

6

6692400

BULB

7

1CM655

SCREW

8

51DM6

NUT

9

6812687

WASHER

10

6812713

RING

11

7134105

BOOM, ARM DIPPER

12

6813497

BUSHING

13

6813863

PIN

14

6813932

WASHER

15

6813933

WASHER

16

6814280

PIN

17

10H25

FITTING, GREASE 5 grease

18

28CM820

BOLT

19

51DM8

NUT

20

53CM2450

SCREW

21

7135896

HARNESS work light - 156'' (3962 mm) long - A

22

7133077

HOUSING, W/A W/notch in side

23

6597688

PLATE 3.86'' (98,0 mm) wide - weld on

24

6610510

TIE
