Запчасти Bobcat 335 LONG ARM KIT ACCESSORIES & OPTIONS

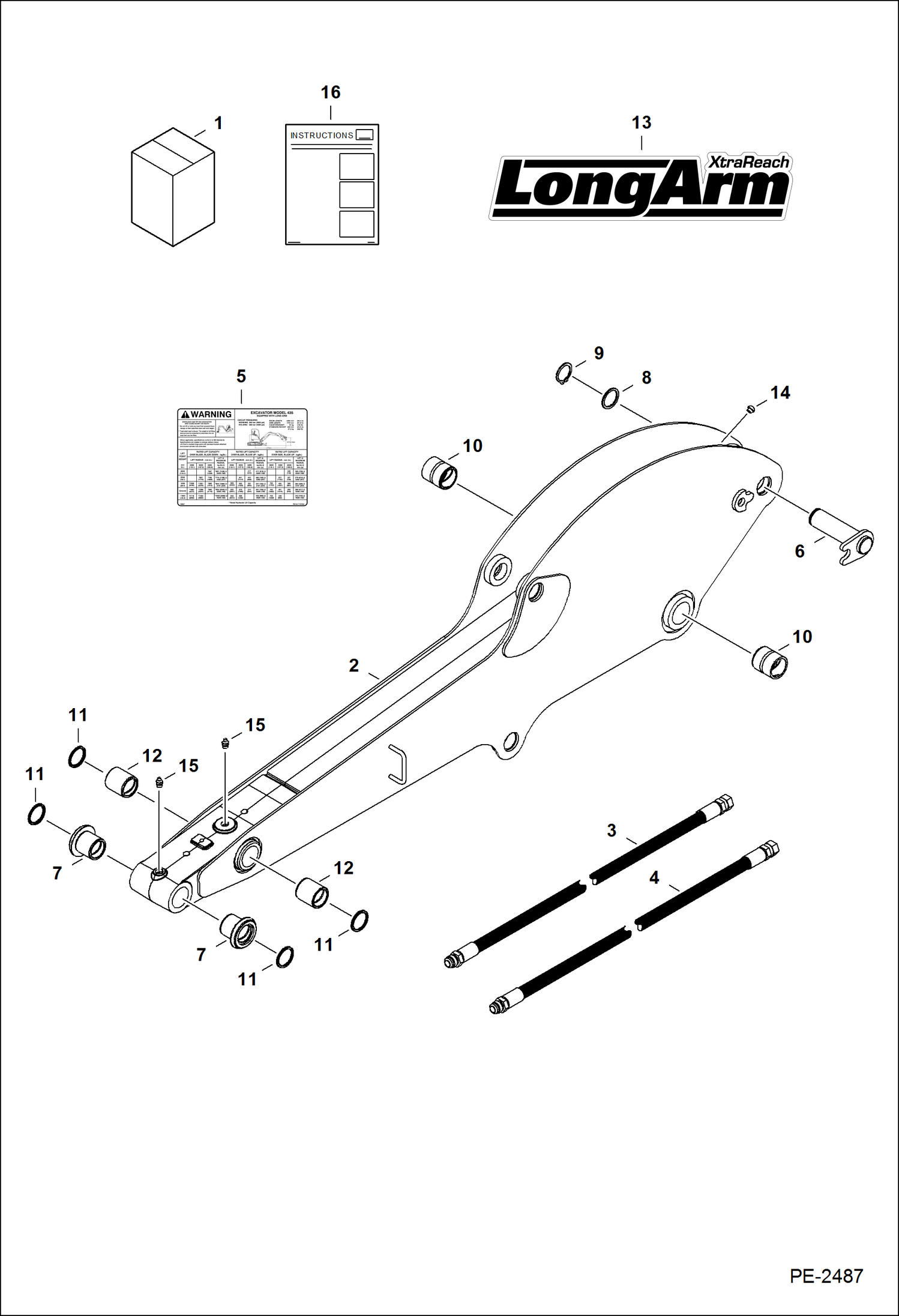

Схема запчастей Bobcat 335 - LONG ARM KIT ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

KIT NLA - long arm - Order components - Was Sales #7100958

2

7100135

ARM W/A - Also Order Ref 7, 10, 11 & 12

3

7100898

HOSE 51'' (1295mm) long

4

7100899

HOSE 73'' (1854mm) long

5

7107502

DECAL lift capacity - text - Model 435

5

7120927

DECAL lift capacity - ESA No-text - Model 435

5

7127922

DECAL lift capacity - text - Model 335

5

7131893

DECAL lift capacity - ESA No-text - Model 335

6

6818028

PIN

7

6805601

BUSHING press fit

8

6628547

WASHER

9

6668787

RING

10

6813497

BUSHING

11

6669287

SEAL dust

12

6628341

BUSHING, PRESS FIT press fit

13

7147433

DECAL, ARM LONG long arm

14

6597572

BUMPER

15

10H25

FITTING, GREASE 5

16

6902709

INSTRUCTIONS

Выбрано товаров: 19
