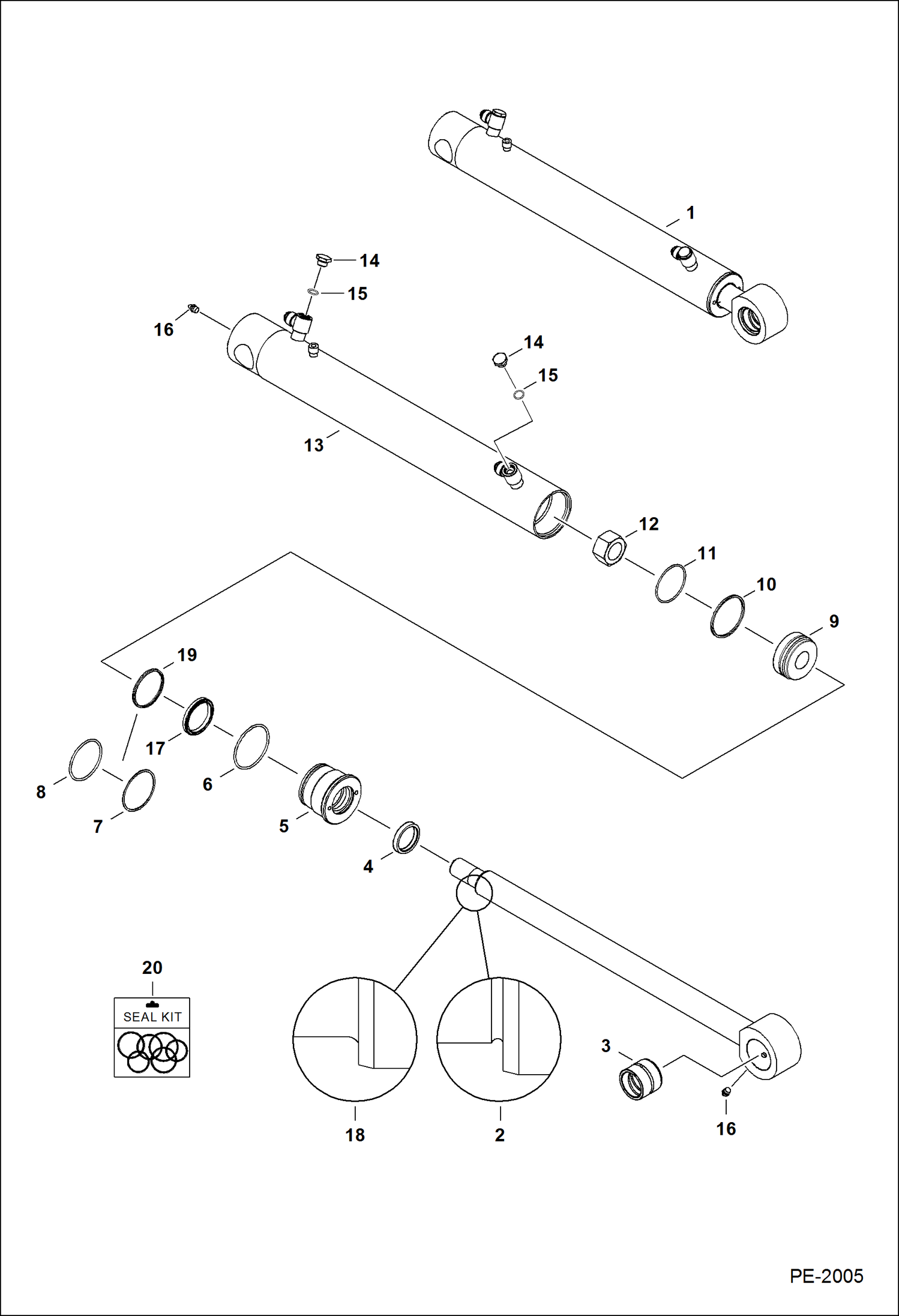

Запчасти Bobcat 335 BUCKET CYLINDER HYDRAULIC SYSTEM

1

CYLINDER See Illustration HYDRAULIC CIRCUITRY/ PE3075 - NLA - See link for dust seals (Ref. 7 6669287) - W/Ref. 2, 4-17 - Order 7148324 - Also Order Ref. 3 - Was 6812517 - A

1

7148324

CYLINDER W/Ref. 4-18 - Also Order Ref. 3 & (2) of 6669287 dust seals

2

ROD NLA - Order 7148325 rod & 7147312 piston - Also Order Ref. 3, 16, & (2) of 6669287 dust seals - Was 6812518 - A

3

6802371

BUSHING wear

4

6686999

WIPER, ROD CYL

5

6812526

HEAD

6

58K234

O RING 10 Was 54K40300 - B

7

73K232

RING, BACK-UP back-up - Was 80K232 - A

8

25K40224

O RING 10 Was 54K40224 - B

9

7147312

PISTON Was 6812525 - A

10

25K30218

O RING 10 Was 54K30218 - B

11

947088

RING, BACK-UP

12

6810540

NUT

13

HOUSING NLA - Order Ref. 1 - Was 6812522 - A

14

6812171

PLUG W/Ref 15

15

75K6

O-RING

16

10H25

FITTING, GREASE 5 grease

17

6667327

SEAL rod

18

7148325

ROD Also Order Ref. 3, 16, & (2) of 6669287 dust seal

19

7008355

SEAL, QUAD

20

7225639

KIT, SEAL Ref. 4, 6-8, 10-12 & 17 - Was 7137945 - A
