Запчасти Bobcat 335 BOOM CYLINDER HYDRAULIC SYSTEM

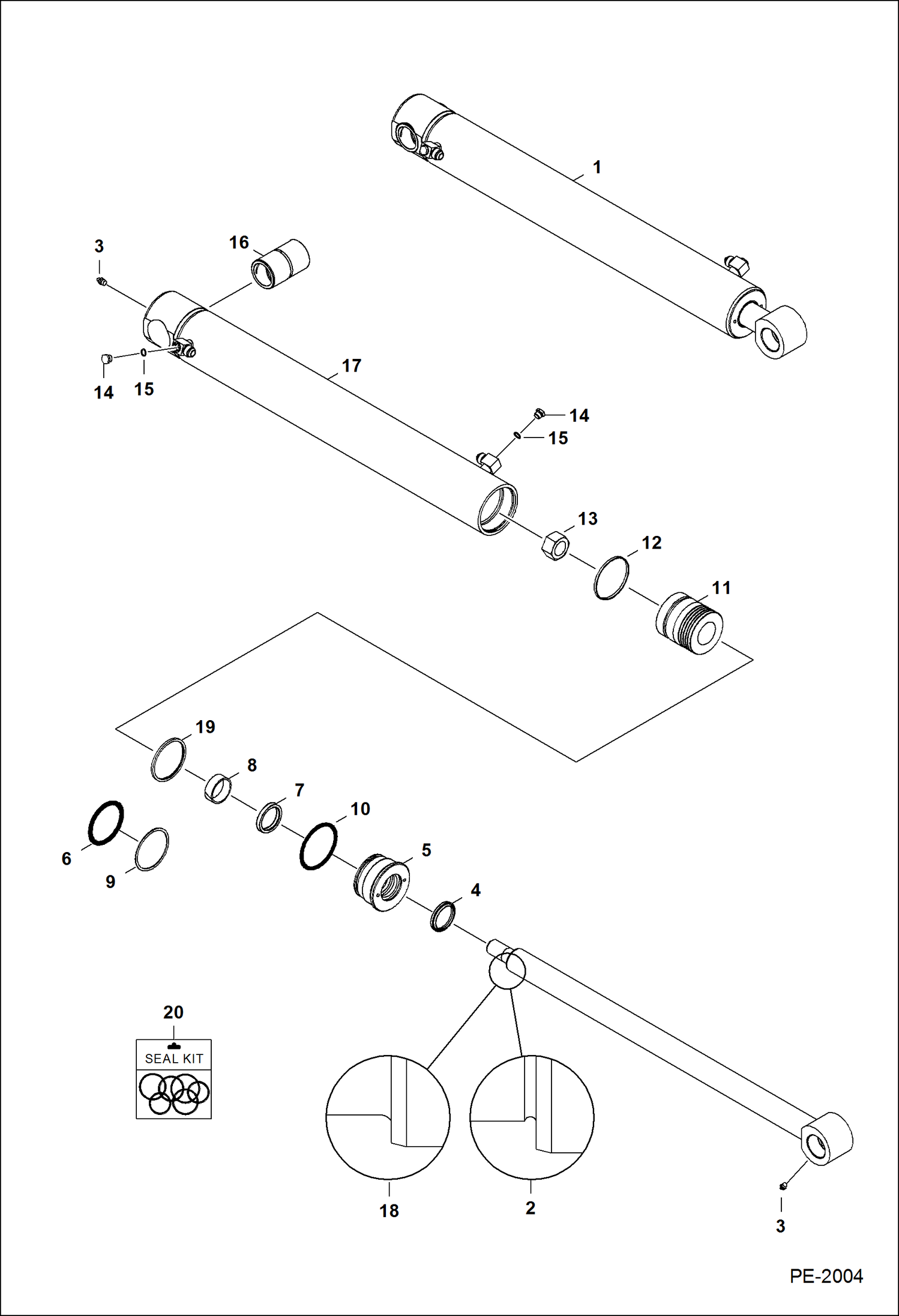

Схема запчастей Bobcat 335 - BOOM CYLINDER HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

CYLINDER NLA - assy - Ref. 2-17 - Order 7156126 cylijnder - Was 6814385 - A

1

7156126

CYLINDER, BOOM Ref. 2-5, 7, 8 & 10-19 - Was 7146691 - A

2

ROD NLA - Order 11 (6698182 piston) & Ref. 18 - Also Order Ref. 3 - Was 6814387 - A

3

10H25

FITTING, GREASE 5 grease

4

6686998

WIPER, ROD CYL Was 6666545 - A

5

6815090

HEAD

6

58K340

O RING 10

7

6667328

SEAL

8

7000772

RING, WEAR Was 6698134 - A

9

73K340

BKUP RING back-up

10

82K240

O-RING

11

PISTON ASMBLY NLA - Order 6698182 piston - Was 6693528 - A

11

6698182

PISTON, CYL BOOM W/Ref. 12 (6692807 seal) & 2 piece non-replaceable wear rings

12

6684628

SEAL nylon - For NLA piston - 3.192'' (81 mm) ID

12

6692807

SEAL For Ref. 11 (6698182 piston) - 3.375'' (85,7 mm) ID

13

6810540

NUT

14

6812171

PLUG W/Ref. 15 (75K6 O-ring) - 9/16'' (14,3 mm)

14

6816855

PLUG W/Ref. 15 (75K7 O-ring) - 5/8'' (19,9 mm)

15

75K6

O-RING W/Ref. 15 (75K6 O-ring) - 9/16'' (14,3 mm)

15

75K7

O-RING 5/8'' (19,9 mm)

16

6816676

BUSHING wear

17

6814386

HOUSING Also Order Ref. 16

18

7146692

ROD Also Order Ref. 3

19

7008352

SEAL, QUAD

20

7161987

KIT, SEAL Ref. 4, 7, 8, 10, 12, 13 & 19 - Was 7156127 - A

Выбрано товаров: 25
