Запчасти Bobcat 335 ARM CYLINDER HYDRAULIC SYSTEM

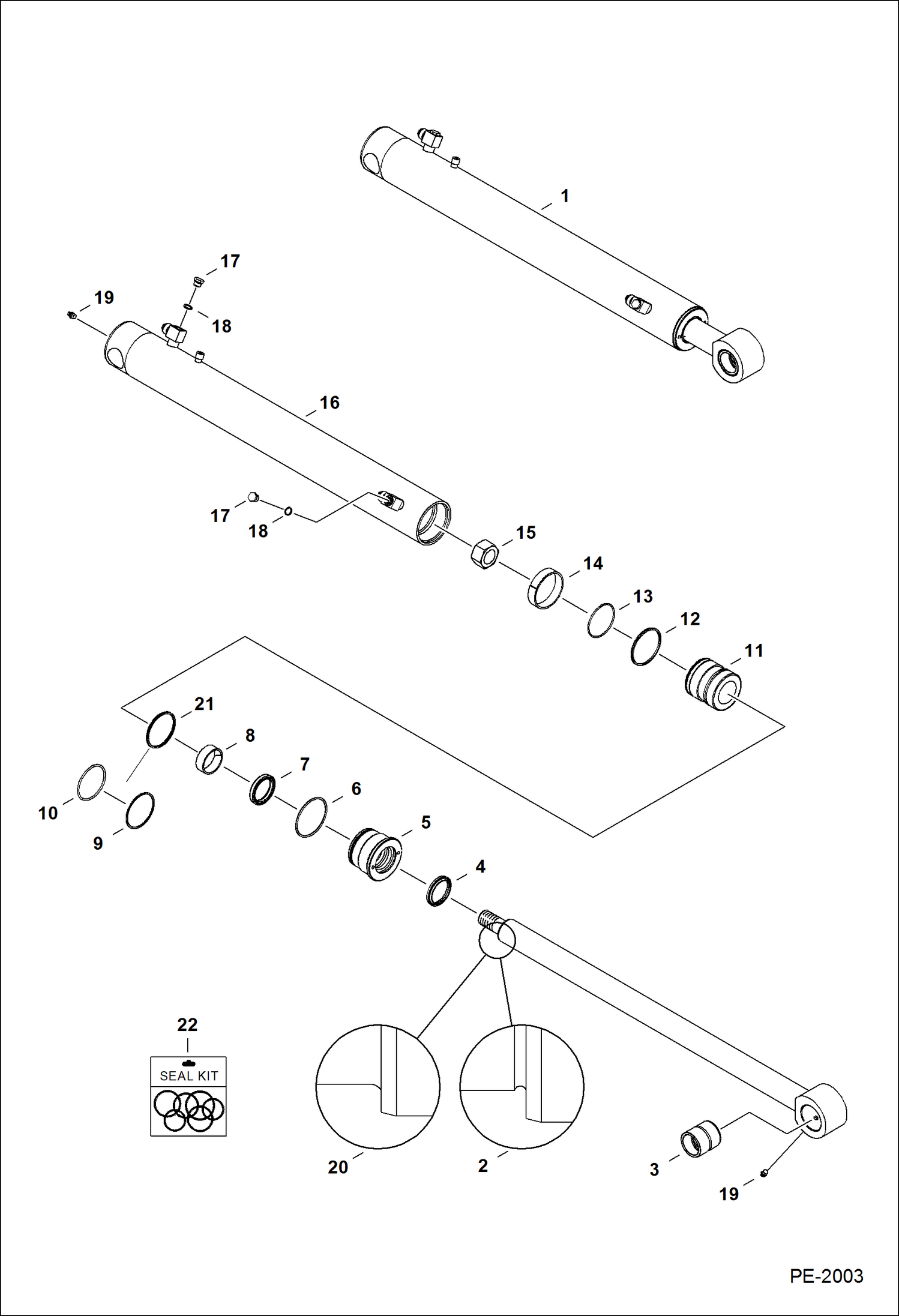

Схема запчастей Bobcat 335 - ARM CYLINDER HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

CYLINDER NLA - W/Ref. 2, 4-19 - Order 7167481 - Also Order Ref. 3 - Was 6816744 - A

1

CYLINDER, ARM NLA - W/ 35.91'' (912 mm) tube length - Order 7167481 - W/Ref. 4-20 - Also Order Ref. 3 - Was 7155447 - A

1

7167481

CYLINDER, ARM ASSY W/ 36.51'' (927 mm) tube length - Also Order Ref. 3

2

ROD NLA - Order Ref. 3, 11, 19, & 20 - BEFORE ORDERING SERVICE PARTS, NOTE THE DIFFERENCE IN TUBE LENGTHS WHICH DETERMINES THE CORRECT PISTON - Was 6816745 - A

3

6816829

BUSHING

4

6686998

WIPER, ROD CYL Was 6666545 - A

5

6817122

HEAD

6

82K236

O-RING Was 58K236 - A

7

6667328

SEAL

8

7000772

RING, WEAR Was 6698134 - A

9

73K234

BACK-UP RING back-up - Was 80K234 - A

10

58K234

O RING 10 Was 54K40300 - B

11

7147311

PISTON 3.19'' (81 mm) long - Use W/Ref. 16 (NLA tube) - Was 6816759 - A

11

7177230

PISTON, CYL 3.79'' (96.27 mm) long - Use W/Ref. 16 (7167482 tube, case cyl) - Was 7167484 - A

12

25K30226

O RING 10 Was 54K30226 - B

13

6513466

PISTON RG

14

7000778

RING, WEAR Was 6698180 - A

15

6810540

NUT

16

TUBE, CASE CYL NLA - 35.91'' (912 mm) tube length - Use W/Ref. 11 (7147311) - Order Ref. 1 - Was 6816826

16

7167482

TUBE, CASE CYL 36.51'' (927 mm) tube length - Use W/Ref. 11 (7167484)

17

6812171

PLUG W/Ref 18

18

75K6

O-RING

19

10H25

FITTING, GREASE 5

20

7146694

ROD Also Order Ref. 3 & 19

21

7008354

SEAL, QUAD

22

7162072

KIT, SEAL W/Ref. 4, 6-8, 12-15, & 21 - Was 7155669 - A
