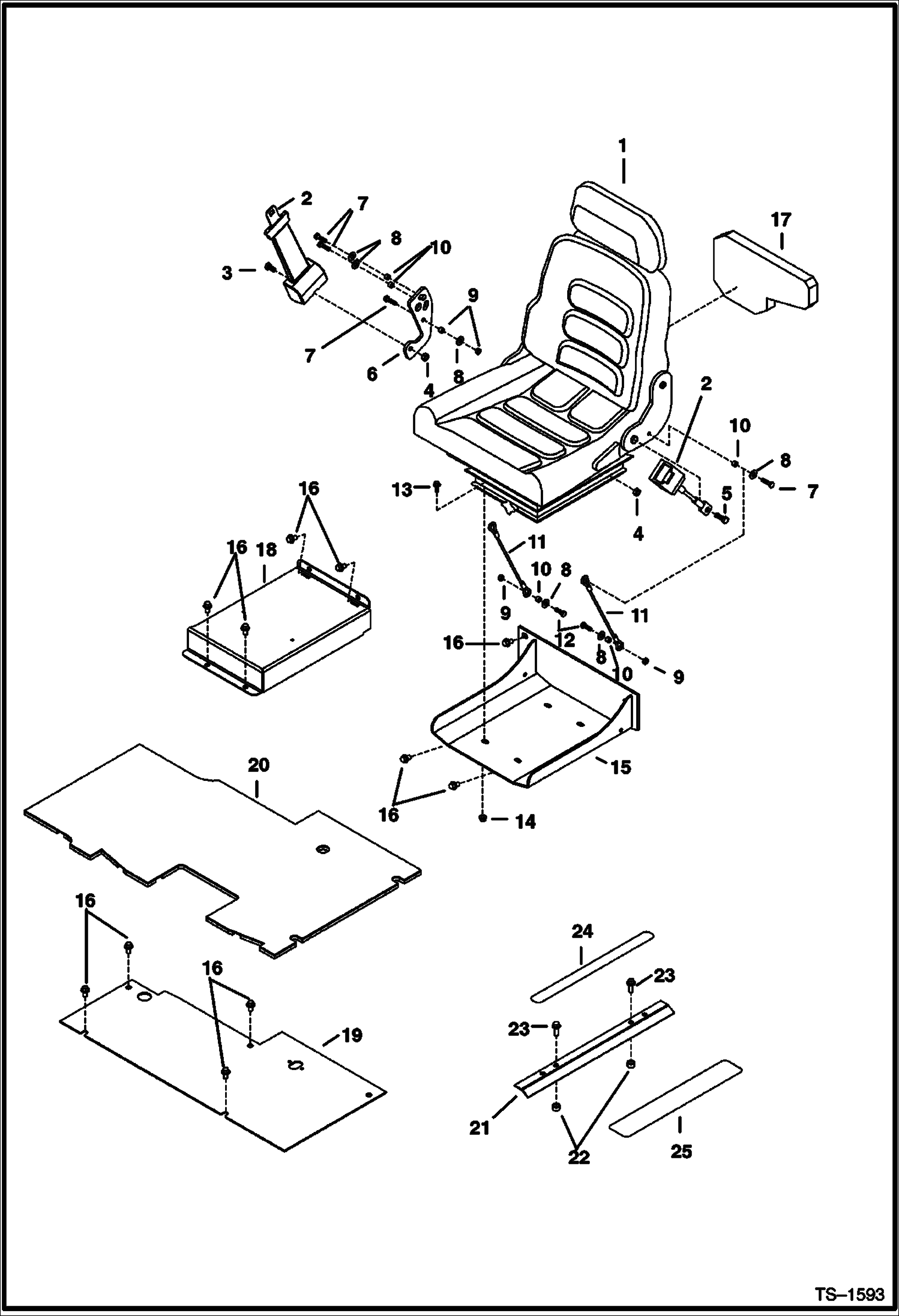

Запчасти Bobcat 334 SEAT, MOUNTING & FLOORPLATES (S/N 512915200 & Above, 517711001 & Above, and 516711001 & Above) CONTROLS

1

SEAT See Illustration SEAT/ D2132 NLA - vinyl - Order 6685657 & redrill mounting holes as required - Was 6672520 - A

1

SEAT See Illustration SEAT/ D2132 - NLA - complete - cloth covered - W/Refs. 2-66 - order 6685657, redrill mounting holes as required - Was 6672519 - A

2

6670865

SEAT BELT

3

1CM1020

BOLT

4

53DM10

NUT

5

1CM1030

BOLT

6

6803068

BRACKET

7

1CM835

BOLT Was 1CM00830B - B

8

25E16

WSHR

9

53DM8

NUT

10

6802539

SPACER

11

6589689

TETHERS

12

1CM825

BOLT

13

29CM820

SCREW Seat to Seat Mount

14

51DM8

NUT

15

6803361

MOUNT Seat

16

26GM10020

BOLT Was 26GM01020B - A

17

6803376

INSULATION

18

6801025

COVER

19

PLATE NLA - Floor - Order 6805302 - Was 6803364 - A

19

6805302

PLATE Floor

20

6803365

FLOORMAT

21

6802930

ANGLE Floormat Retainer

22

6503451

SPACER

23

26GM10030

BOLT

24

6593245

TREAD Installed on Ref. 21

25

6588953

TREAD Installed on Upperstructure
