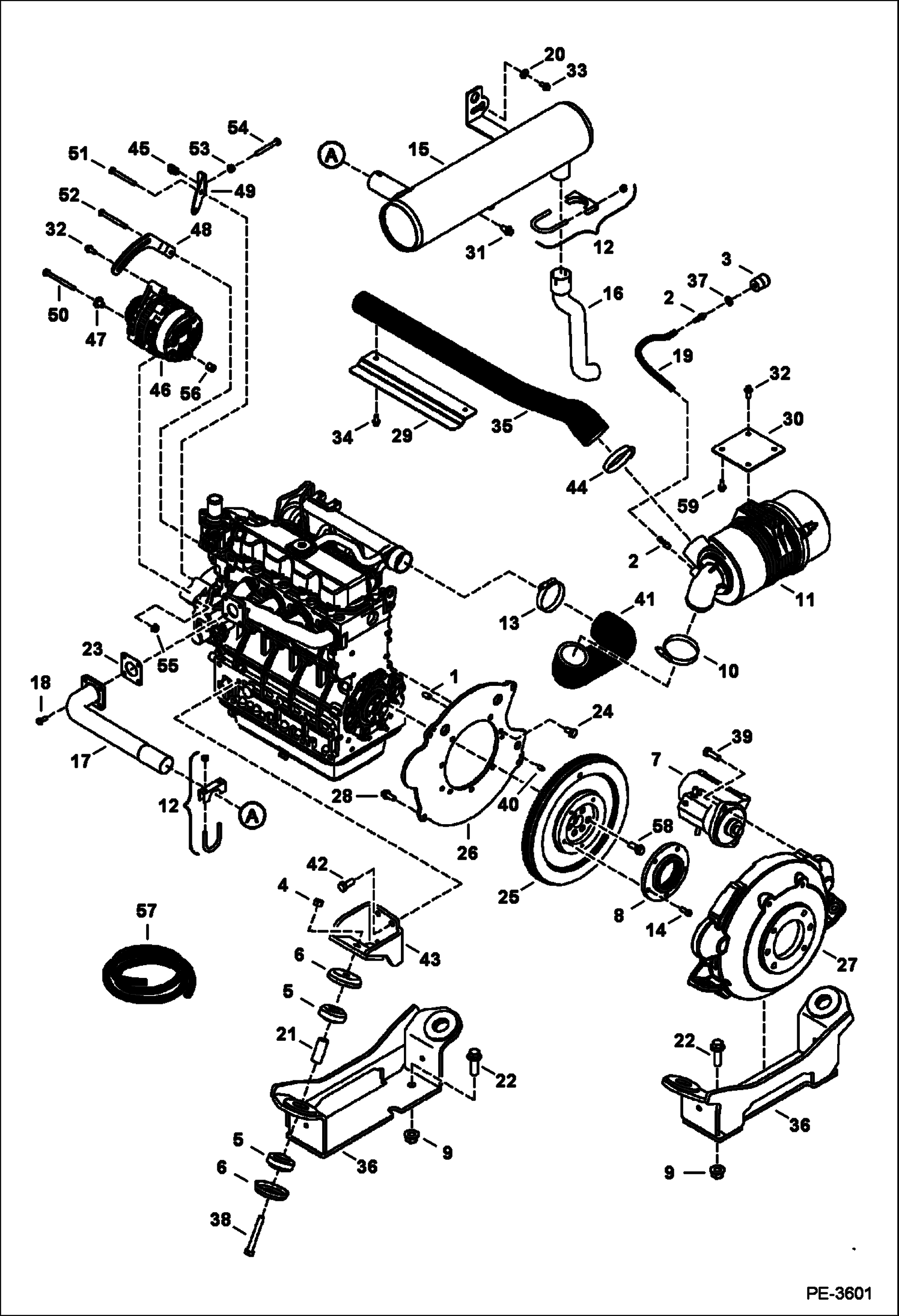

Запчасти Bobcat 334 ENGINE & ATTACHING PARTS (Air Cleaner, Muffler, Engine Mounts) POWER UNIT

1

23JM1024

PIN HARDENED PARALLE - Was 20JM1025 - B

2

6505813

CONNECTOR

3

6515007

GAUGE

4

53DM12

NUT

5

6688994

MOUNT engine

6

7116851

CUP

7

STARTER See Illustration STARTER/ D2437

8

6670757

COUPLER

9

51DM16

NUT

10

42HC325

CLAMP

11

6676705

FILTER See Illustration AIR CLEANER/ PE2909 air assy

12

6677363

CLAMP, FULL CIRCLE

13

42HC300

CLAMP

14

3GM820

SCREW

15

6698326

MUFFLER, EXHAUST

16

7140374

PIPE exhaust

17

6698299

TUBE, EXHAUST

18

6701123

SCREW

19

HOSE NLA - 11'' (280 mm) long - Order Ref. 57

20

17EM80

WASHER

21

7116850

SPACER

22

29CM1650

BOLT

23

6727752

GASKET

24

6733378

SCREW

25

7161404

FLYWHEEL, ENG ASSY

25

6510470

RING GEAR

26

7126918

PLATE

27

7121429

HOUSING MACH

28

29CM1025

BOLT

29

6810039

COVER

30

7125830

PLATE

31

29CM1020

BOLT

32

29CM820

SCREW

33

29CM816

SCREW

34

26GM8020

SCREW

35

6810466

HOSE

36

7156071

MOUNT, ENG

37

25E17

WASHER 5

38

7CM1290

SCREW

39

1CM1235

BOLT

40

7101341

PIN

41

6816551

HOSE

42

6719828

BOLT

43

6814278

MOUNT

44

42H40

HOSECLAM5

45

6676169

NUT

46

6681857

ALTERNATOR See Illustration ALTERNATOR/ B22386

47

6816532

SPACER

48

6817598

BRACKET

49

6817767

BRACKET

50

1CM8110

HEX CAP S

51

1CM875

BOLT

52

1CM880

BOLT

53

43DM8

NUT

54

4CM870

BOLT

55

51DM8

NUT

56

6675838

BUSHING

57

6557720

HOSE bulk - sold per foot

58

6598275

BOLT

59

26GM8016

SCREW
