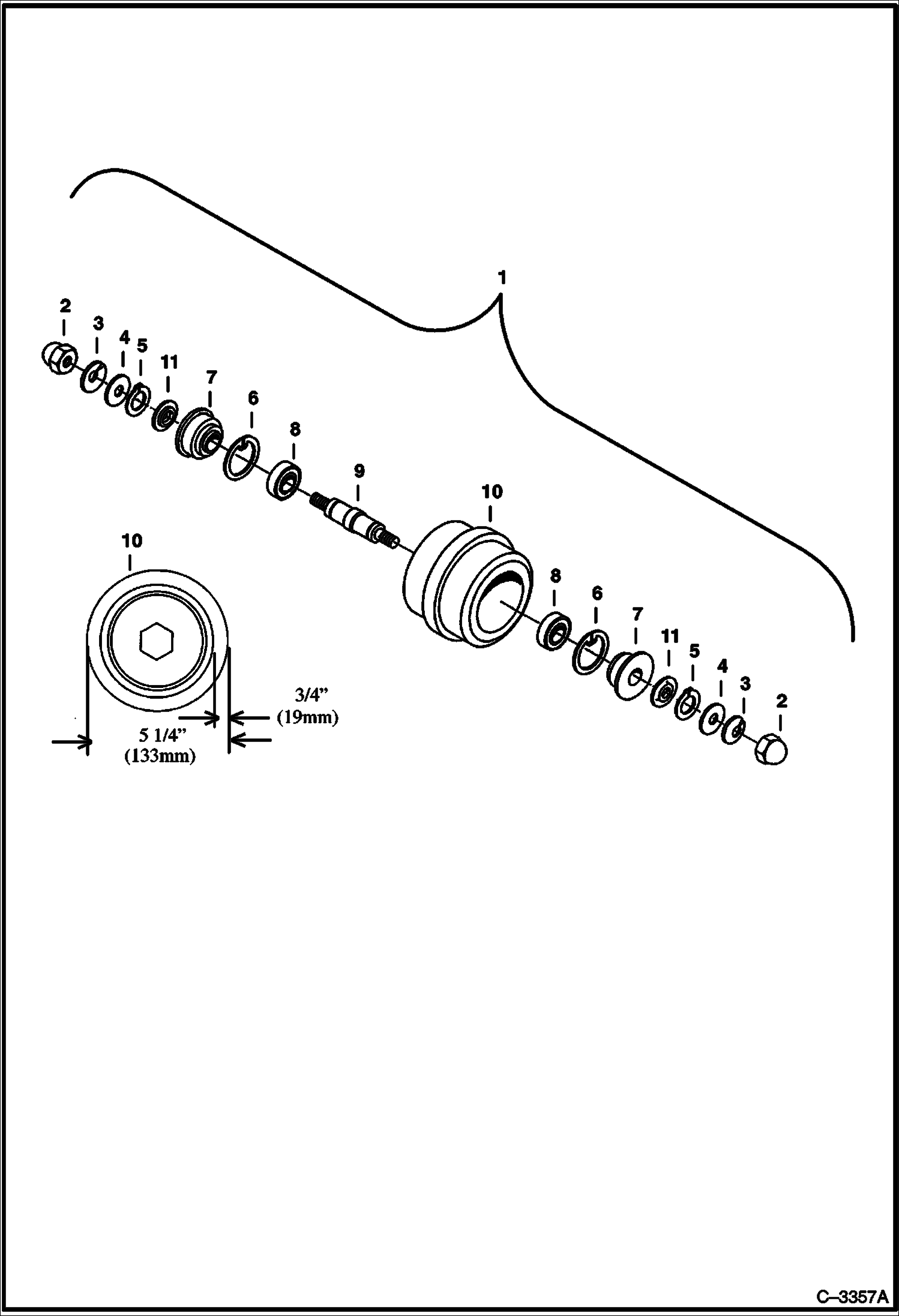

Запчасти Bobcat 334 TRACK ROLLER (Rubber Tracks) (W/O Oil Plug) UNDERCARRIAGE

1

ROLLER See Illustration TRACK ROLLER/ B17112 - NLA - Ref. 2-11 - Was 6589006 - A

2

36DM20

NUT

3

6EM200

WASHER

4

15EM200

WASHERS

5

5JM35

SNAPRING

6

7JM72

SNAP RING

7

6655061

SEAL

8

6655062

BEARING

9

SHAFT NLA - Order Ref. 1 - Was 6589003 - A

10

ROLLER See Illustration TRACK ROLLER/ D1958 - NLA - check outer diameter before ordering parts - See Illustration D-1958 for additional roller - Order 6810767 - Was 6589007 - A

11

6589646

SPACER
