Запчасти Bobcat 334 FRONT IDLER (W/ Holes In Idler) (S/N 512920148 & Below, 517711392 & Below, 516712419 & Below) UNDERCARRIAGE

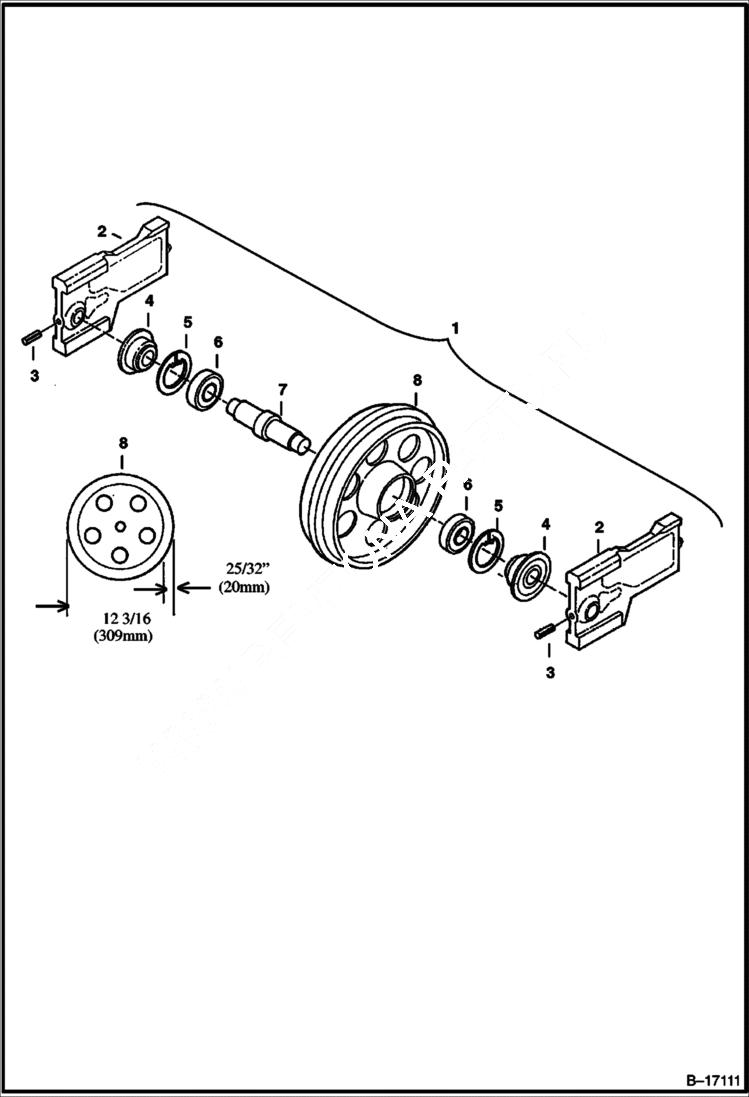

Схема запчастей Bobcat 334 - FRONT IDLER (W/ Holes In Idler) (S/N 512920148 & Below, 517711392 & Below, 516712419 & Below) UNDERCARRIAGE

Артикул

Название

Примечание

Количество

1

IDLER ASSY NLA - Assy. Ref. 2-8 - Rubber Track W/12 -3/16'' (309 mm) diameter order 6815117 - Was 6628410 - A

1

IDLER ASSY NLA - Assy. Ref. 2-8 - Steel Track W/11- 5/8'' (295 mm) diameter - order 6815121 - Was 6597373 - A

2

6596481

BLOCK

3

2JM1060

PIN

4

6655061

SEAL

5

7JM72

SNAP RING

6

6684339

BEARING Was 6655856 - A

7

6588997

SHAFT

8

IDLER NLA - Rubber Track - W/12 -3/16'' (309 mm) diameter - Order 6815117 - Was 6589000 - A

8

IDLER NLA - Steel Track - W11- 3/4'' (295 mm) diameter - Order 6815121 - Was 6588998 - A

Выбрано товаров: 10
