Запчасти Bobcat 334 DECALS (Outside) ACCESSORIES & OPTIONS

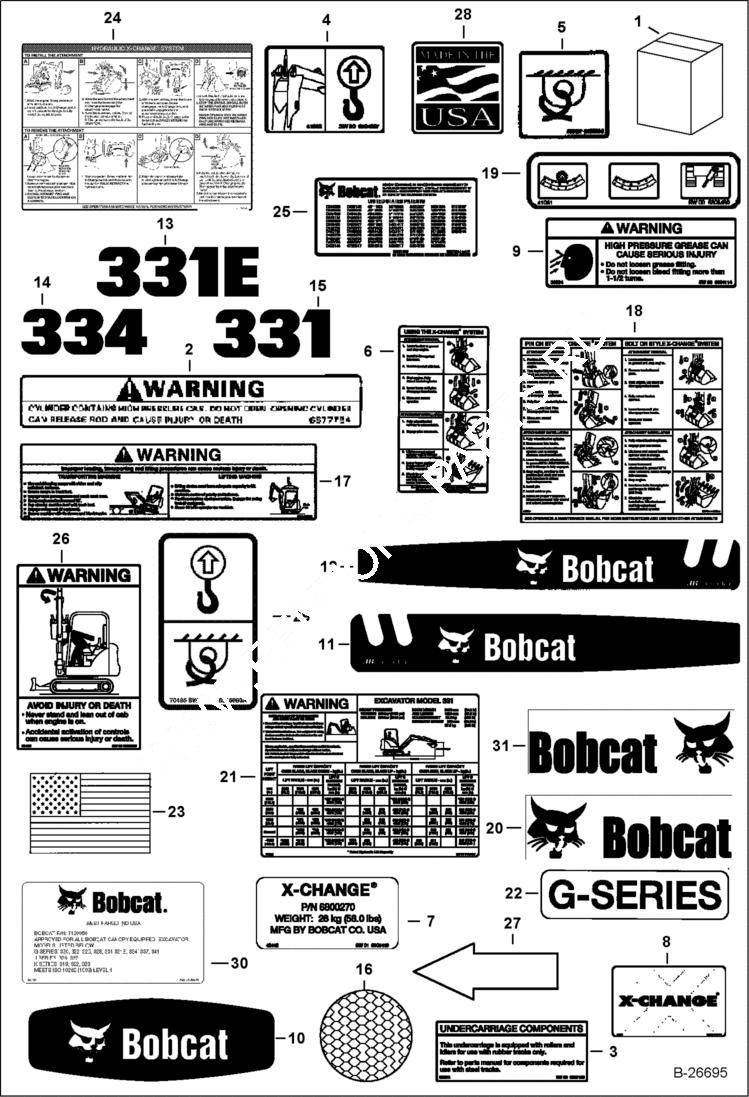

Схема запчастей Bobcat 334 - DECALS (Outside) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

6986665

KIT DECAL See Illustration DECALS/ B22756 includes Ref. 2-26 - Also includes Ref. 2-29 on this page

1

7120466AR

KIT DECAL

1

7120466BR

KIT DECAL

1

7120466JP

KIT DECAL

1

7120465AR

KIT TRANSLATION

1

7120465BR

KIT TRANSLATION

2

6577754

DECAL, WARNING 5 gas spring

3

6589129

DECAL track rubber

4

6594897

DECAL boom lift

5

6595014

DECAL tie down

6

6817816

DECAL using latching X-Change

7

6805416

DECAL latching X-Change

7

7107953

DECAL pin-on X-Change

7

7142034

DECAL hydraulic X-Change

8

6803760

DECAL X-Change

9

7168039

DECAL, WARNING See Illustration DECALS/ NA6216 - high pressure grease - Was 6804114 - A

10

6816948

DECAL logo rear

11

7156442

DECAL Logo - R.H. Was 6816950 - A

12

7156441

DECAL Logo - L.H. - Was 6816949 - A

13

6806165

DECAL 331E

14

6806164

DECAL 334

15

6806163

DECAL 331

16

7106627

DECAL, REFLECTIVE reflective

17

6808185

DECAL warning

18

7102651

DECAL using pin-on X-Change

19

6808480

DECAL remote grease

20

6815489

DECAL logo - 402 mm (15.81'') long

20

6727324

DECAL, LOGO BOBCAT AND HEAD 210 mm (8.25'') long

21

6810008

DECAL lift capacity

21

7110137

DECAL lift capacity

21

6810009

DECAL lift capacity - long arm

21

7110138

DECAL lift capacity - long arm

21

6810010

DECAL lift capacity - extendable arm

21

7110139

DECAL lift capacity - extendable arm

21

6810011

DECAL lift capacity - W/counterweight

21

7110140

DECAL lift capacity - W/counterweight

22

6817056

DECAL G series

23

6732026

DECAL U.S. Flag

24

7134587

DECAL, X-CHANGE using hydraulic X-Change

25

DECAL NLA - patent - Was 6557224 - C

26

6809829

DECAL warning

27

6533899

DECAL arrow

28

DECAL NLA - Was 7136123 - A

29

6815993

DECAL, LIFT tie down

30

7120679

DECAL spcl apps canopy - not in kit

30

7120680

DECAL spcl apps cab - not in kit

30

7120681

DECAL top guard - not in kit

31

6808546

DECAL logo - not in kit

Выбрано товаров: 48
