ELECTRICAL (Left Hand Console)

Запчасти Bobcat 334 ELECTRICAL (Left Hand Console) ELECTRICAL SYSTEM

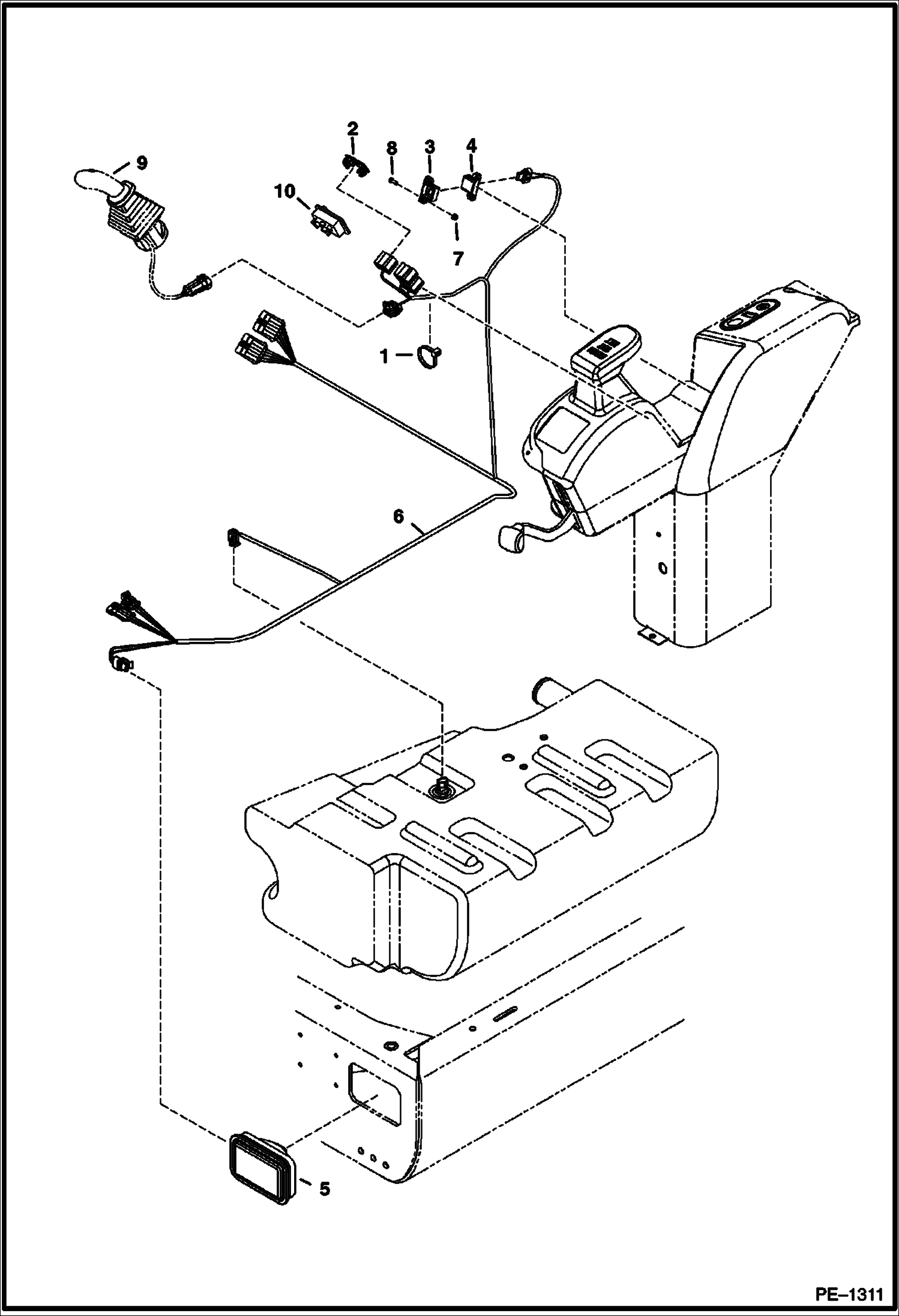

Схема запчастей Bobcat 334 - ELECTRICAL (Left Hand Console) ELECTRICAL SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

6624289

STRAP, TIE

2

6665314

PLUG

3

6680428

SENSOR lock out - Was 6675665 - A

4

6680427

SENSOR lock out - Was 6675666 - A

5

6676238

LIGHT assy - work in frame

5

6667934

BULB

5

6676725

BEZEL Rubber Mount

6

6809045

HARNESS L.H. console

7

50D8

NUT

8

87G808

SCREW

9

JOYSTICK See Illustration LH JOYSTICK/ B16423 - L.H.

10

6671113

SWITCH wiper

10

6668816

SWITCH beacon
