Запчасти Bobcat 334 VALVE SECTION (Left Travel) (S/N 232511812 & Below, 232711136 & Below, 232611452 & Below) HYDRAULIC SYSTEM

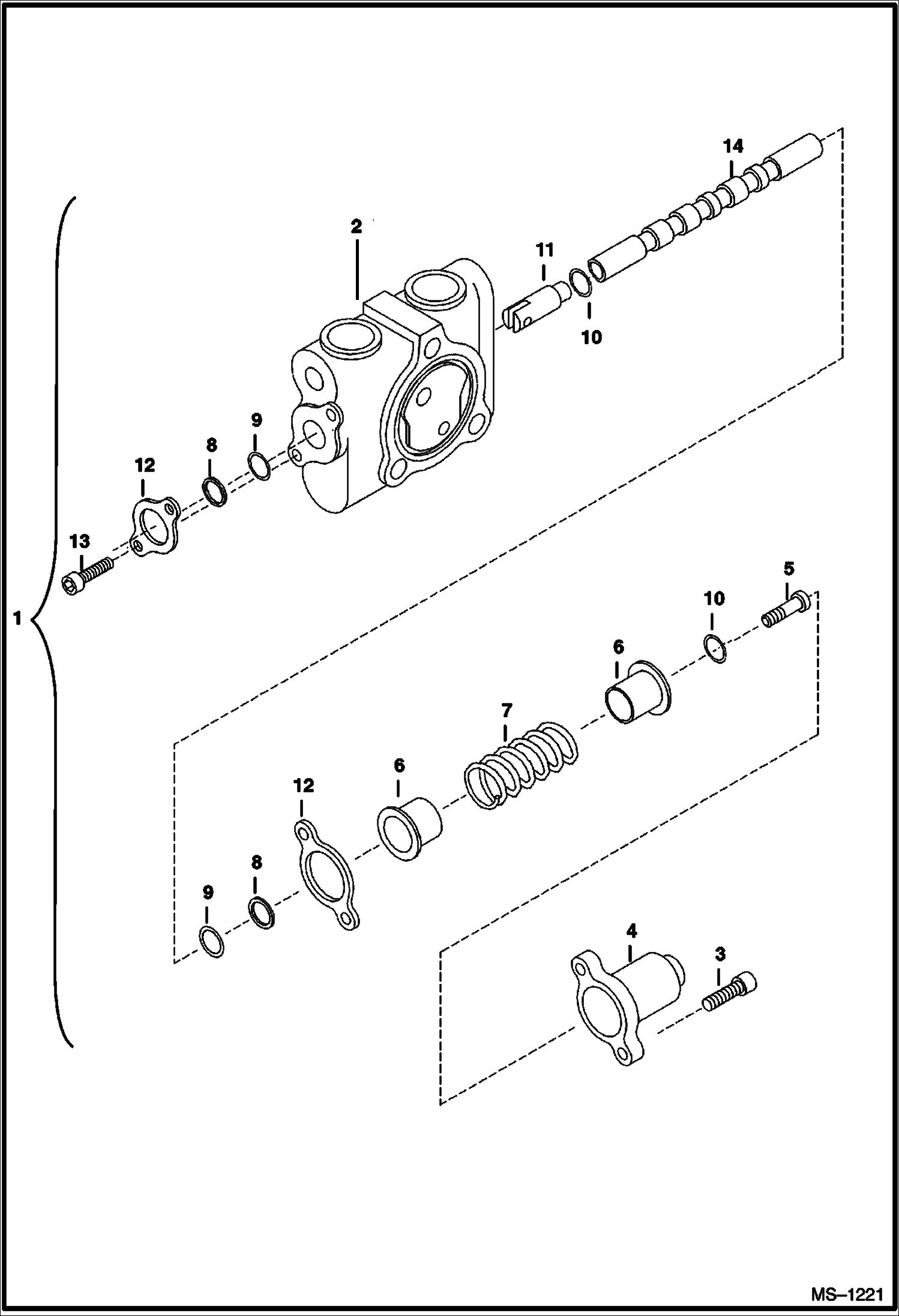

Схема запчастей Bobcat 334 - VALVE SECTION (Left Travel) (S/N 232511812 & Below, 232711136 & Below, 232611452 & Below) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6677990

VALVE section - Ref. 2 - 14

2

BLOCK NSS - order Ref. 1

3

73G414

CAPSCRW10 Was 6518610 - A

4

948192

CAP

5

SPOOL END NLA - order 6679106 - Was 6668962 - A

5

6679106

BOLT

6

6668963

SEAT spring

6

6668963

SEAT spring

6

6679108

SEAT spring

7

948018

SPRING

8

948021

SEAL wiper

9

6668972

O-RING

10

91F2

O-RING

11

6677998

SPOOL END clevis

12

948016

PLATE

13

6671684

SCREW

14

SPOOL NSS - order Ref. 1

Выбрано товаров: 17
