Запчасти Bobcat 334 VALVE SECTION (Boom) (S/N 232512782 & Below, 232711433 & Below, 232612157 & Below) HYDRAULIC SYSTEM

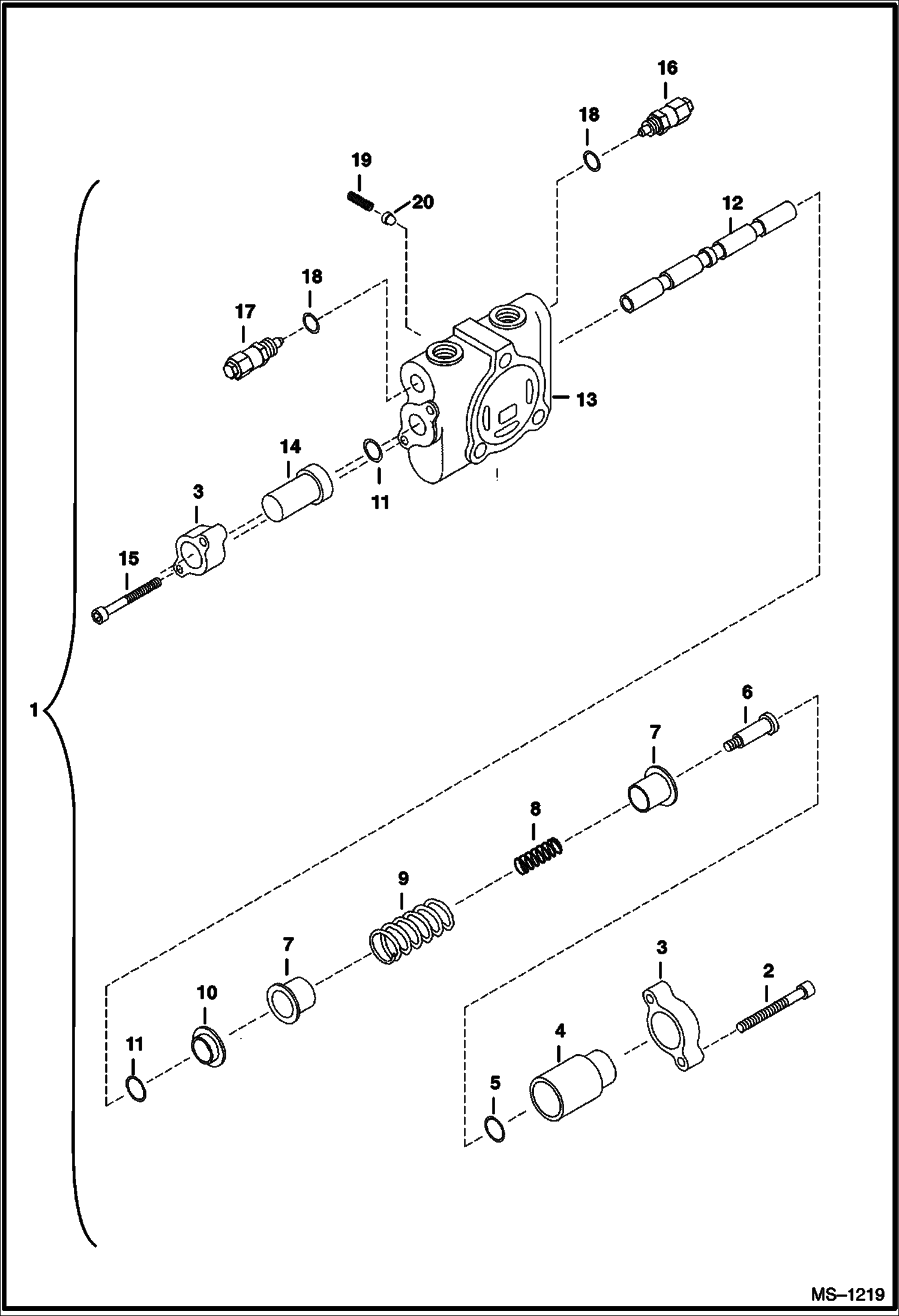

Схема запчастей Bobcat 334 - VALVE SECTION (Boom) (S/N 232512782 & Below, 232711433 & Below, 232612157 & Below) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6677991

VALVE boom - section - Ref. 2 - 15

2

6665439

SCREW

3

6665442

PLATE

4

6668964

END COVER

5

6665435

O-RING

6

6668967

BOLT

7

6677997

SEAT spool

8

6668968

SPRING small

9

6677996

SPRING large

10

6665443

RETAINER

11

6665432

O-RING

12

SPOOL NSS - order Ref. 1

13

BLOCK NSS - order Ref. 1

14

6668965

END COVER

15

73G424

SCREW Was 11G-424 - B

16

6674259

VALVE relief - 2950 PSI

16

6665458

SEAL KIT

17

6674260

RELIEF VALVE relief - 3400 PSI

17

6665458

SEAL KIT

18

961240

O-RING

19

6630966

SPRING

20

6630965

POPPET

Выбрано товаров: 22
