Запчасти Bobcat 334 HYDRAULIC CONTROL VALVE (S/N 232512782, 232711433, 232612157 & Below) HYDRAULIC SYSTEM

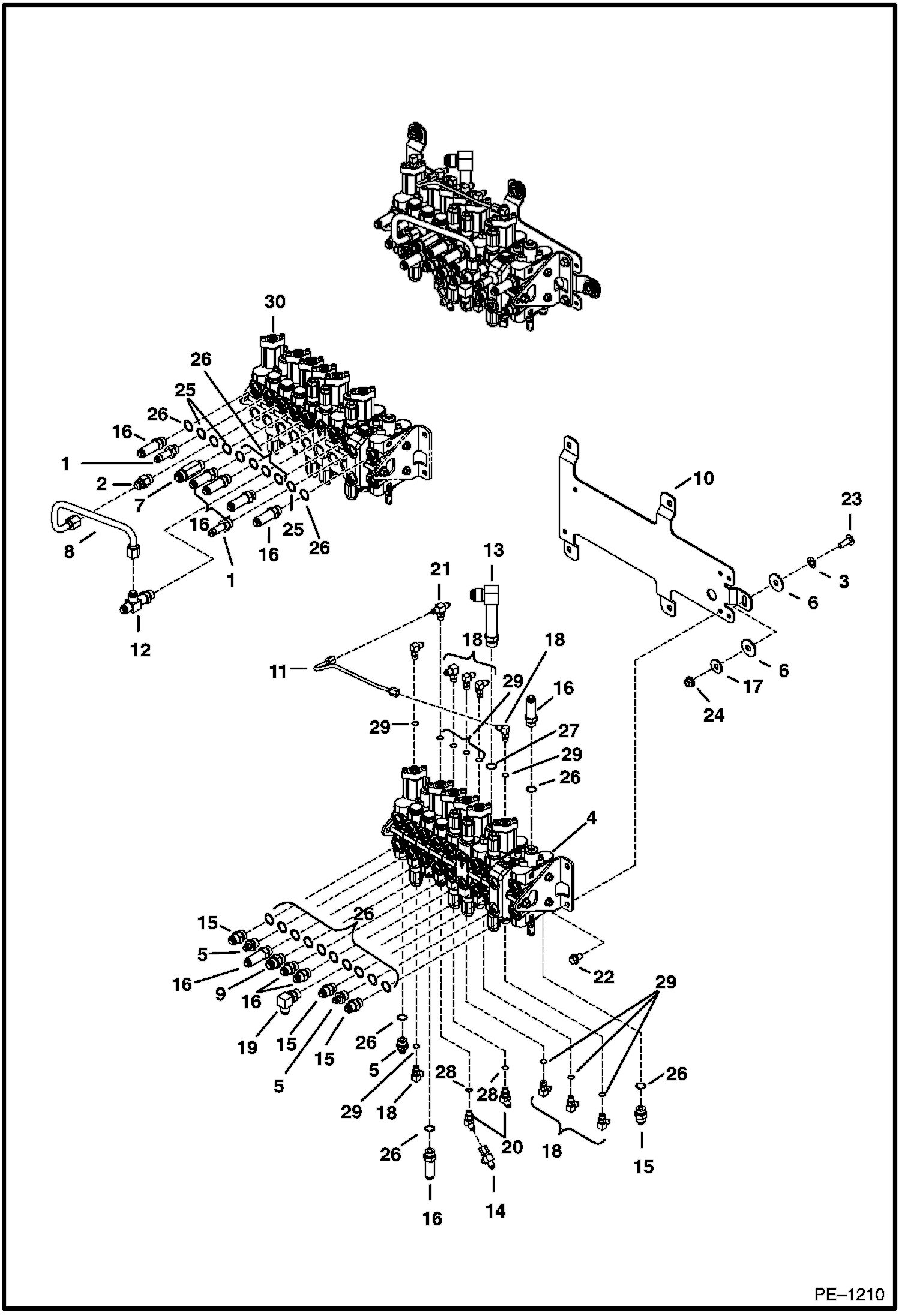

Схема запчастей Bobcat 334 - HYDRAULIC CONTROL VALVE (S/N 232512782, 232711433, 232612157 & Below) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

16KB0608

FITTING, HYD CONNECTOR W/Ref. 25 - Was 6587170 - A

2

6656391

CHECK VALVE

3

6674264

RETAINER NUT

4

6677107

VALVE assy

5

CONNECTOR NLA - W/Ref. 26 - tapered boss face - Was 6715649 - A

5

97K6

O RING flare end

5

15KB0608

FITTING, HYD CONNECTOR W/Ref. 26 - flat boss face

6

6806720

INSULATOR

7

ADAPTER NLA - W/Ref. 25 - tapered boss face - Was 6807448 - A

7

97K10

O-RING 10 flare end

7

16KB1008

FITTING, HYD ELBOW W/Ref. 25 - flat boss face

8

6808279

TUBELINE

9

ADAPTER NLA - W/Ref. 26 - tapered boss face - Was 6808514 - A

9

97K10

O-RING 10 flare end

9

15KB1008

FITTING, HYD CONNECTOR W/Ref. 26 - flat boss face

10

6808592

MOUNT

11

6808676

TUBELINE

12

TEE NLA - W/Ref. 26 - tapered boss face - Was 6808972 - A

12

97K8

O-RING flare end

12

6812827

TEE W/Ref. 26 - flat boss face

13

6809049

ELBOW W/Ref. 27

13

97K12

O'RING flared end

14

13K3

TEE Was 13KN00003B - A

14

97K4

O'RING flare end

15

15KB0808

FITTING, HYD CONNECTOR W/Ref. 26 - Was 15KN00006B - A

15

97K8

O-RING flare end

16

16KB0808

FITTING, HYD CONNECTOR W/Ref. 26 - Was 16KN00006B - A

16

97K8

O-RING flare end

17

17EM100

WASHER

18

17KB0404

FTG HYD ELBOW 90 W/Ref. 29 - Was 17KV00003B - A

18

97K4

O'RING flare end

19

17KB0808

FITTING, HYD ELBOW W/Ref. 26 - Was 17KV00006B - A

19

97K8

O-RING flare end

20

18KB0404

FTG HYD ELBOW 45 W/Ref. 28 - Was 18KN00003B - A

20

97K12

O'RING flared end

21

19KB0404

FITTING, HYD TEE W/Ref. 29 - Was 19KN00003B - A

21

97K4

O'RING flare end

22

26GM10020

BOLT

23

28CM1030

BOLT

24

51DM10

NUT

25

79K8

O RING 10

26

99K8

O-RING tapered boss face

26

79K8

O RING 10 flat boss face

27

99K10

O'RING

28

98K12

O-RING

29

99K4

O'RING

30

6677107

VALVE See Illustration VALVE SECTION/ MS1227 See Illustration CONTROL VALVE/ D2440 - control
