Запчасти Bobcat 334 LH JOYSTICK (S/N 232512782 & Below, 232711433 & Below, 232612158 & Below) HYDRAULIC SYSTEM

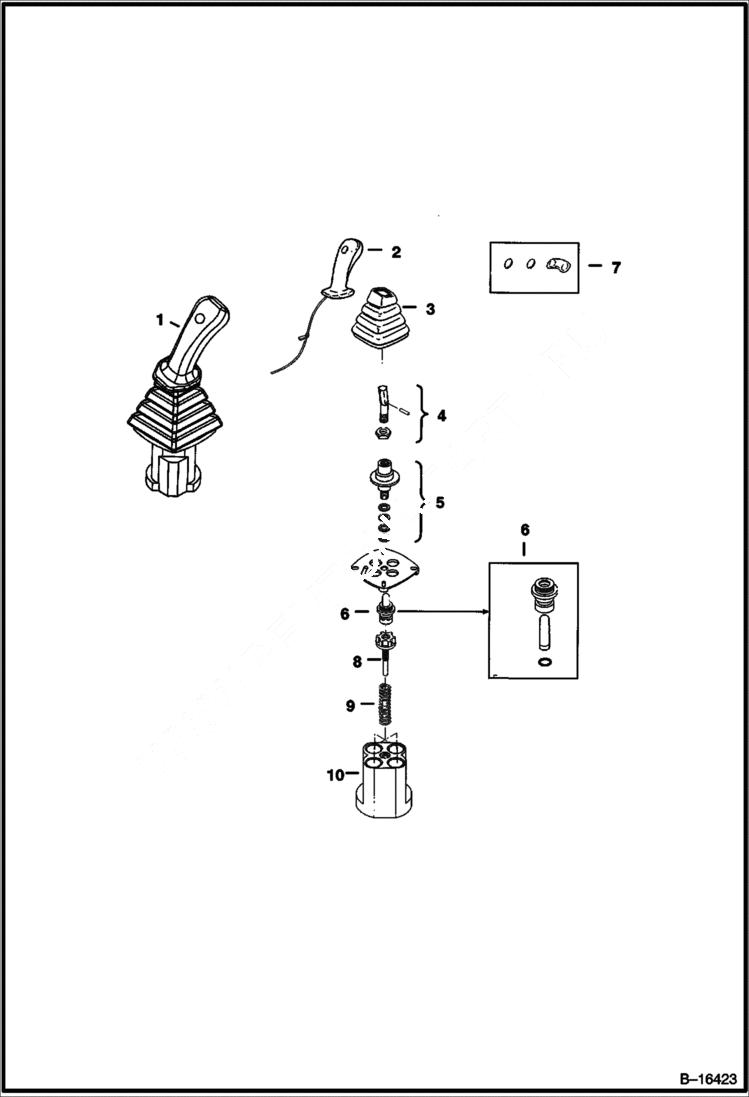

Схема запчастей Bobcat 334 - LH JOYSTICK (S/N 232512782 & Below, 232711433 & Below, 232612158 & Below) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6675296

JOYSTICK assy. - Ref. 2 - 9

2

6677110

GRIP

3

6677126

BOOT

4

6677125

LEVER KIT

5

6677127

CAM KIT

6

6677128

PLUNGER KIT

7

6677112

KIT,PUSH BUTTON

8

6678786

REGULATOR KIT Was 6678766 - D

9

SPRING NSS - order Ref, 1

10

BODY NSS - order Ref. 1

Выбрано товаров: 10
