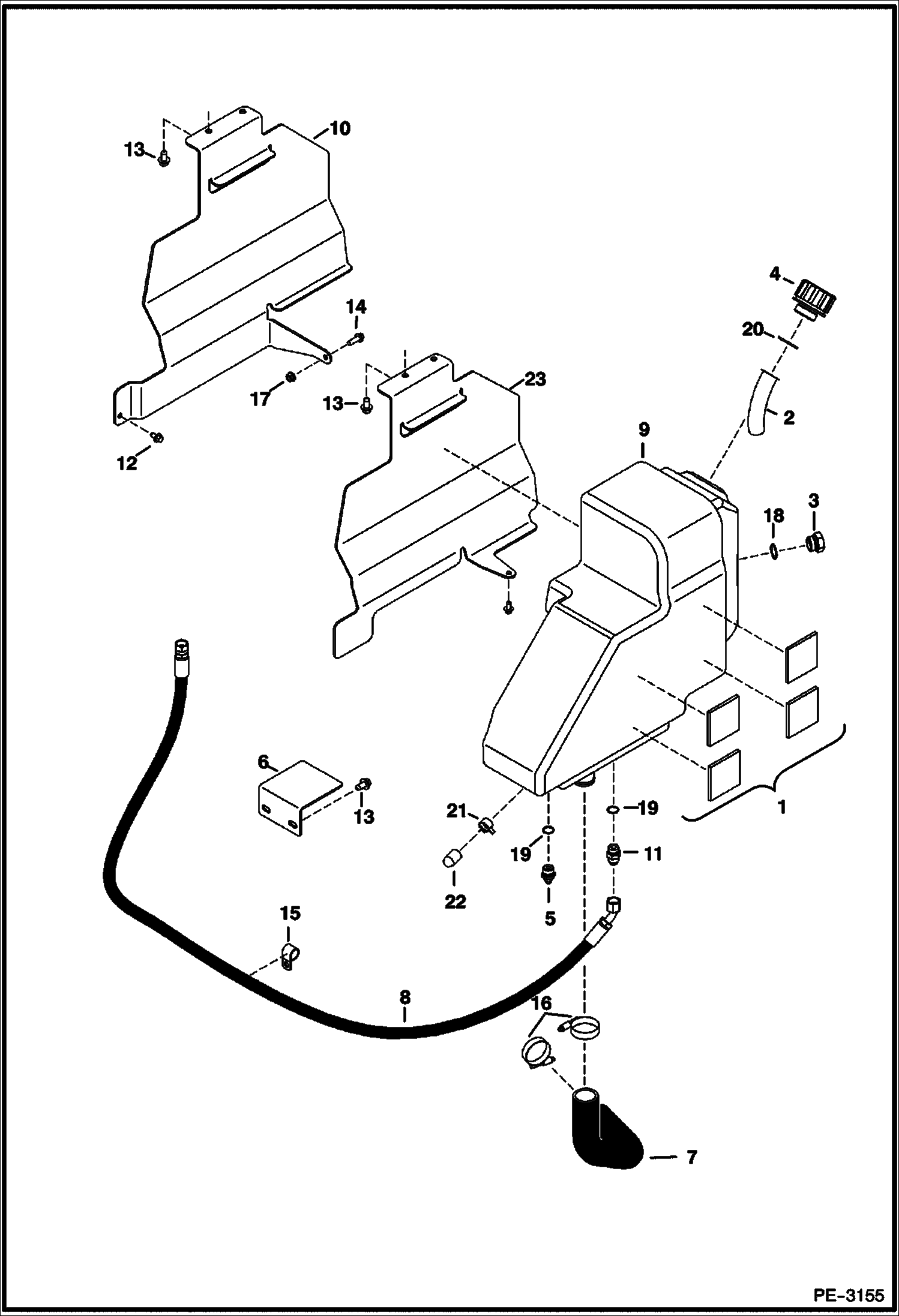

Запчасти Bobcat 334 HYDRAULIC CIRCUITRY (Hydraulic Tank) HYDRAULIC SYSTEM

1

6578278

PAD

2

7134222

SCREEN fill - Was 6587168 - A

3

6665915

GAUGE

4

6692836

CAP, HYDRAULIC TANK W/Ref. 20 - Was 6674690 - B,D

5

CONNECTOR NLA - W/Ref. 19 - tapered boss - Was 6715649 - A

5

15KB0608

FITTING, HYD CONNECTOR W/Ref. 19 - flat boss

5

97K6

O RING flare end

6

7101356

MOUNT Was 6806623 - A

7

6808526

HOSE

8

6808691

HOSE

9

TANK NLA - Order 7125940 tank & 6680398 cap, 5HM20 clamp, and 15KB0404 & 15KB0604 fittings - Was 6810307 - A

9

TANK NLA - Order 7125940 tank, 15KB0404, & 15KB0604 fittings - Was 6813966 - A

10

6809439

BRACKET

11

CONNECTOR NLA - W/Ref. 19 - tapered boss - Was 15KN00006B - A

11

15KB0808

FITTING, HYD CONNECTOR W/Ref. 19 - flat boss

11

97K8

O-RING flare end

12

26GM8016

SCREW

13

26GM10020

BOLT

14

29CM825

BOLT

15

30H65

CLIP

16

42HC200

CLAMP

17

43DM8

NUT

18

79K12

O RING 10

19

99K8

O-RING tapered boss

19

79K8

O RING 10 flat boss

20

79K20

O RING 10

21

5HM20

CLAMP

22

6680398

CAP

23

7125941

BRACKET Was 6810193 - A
