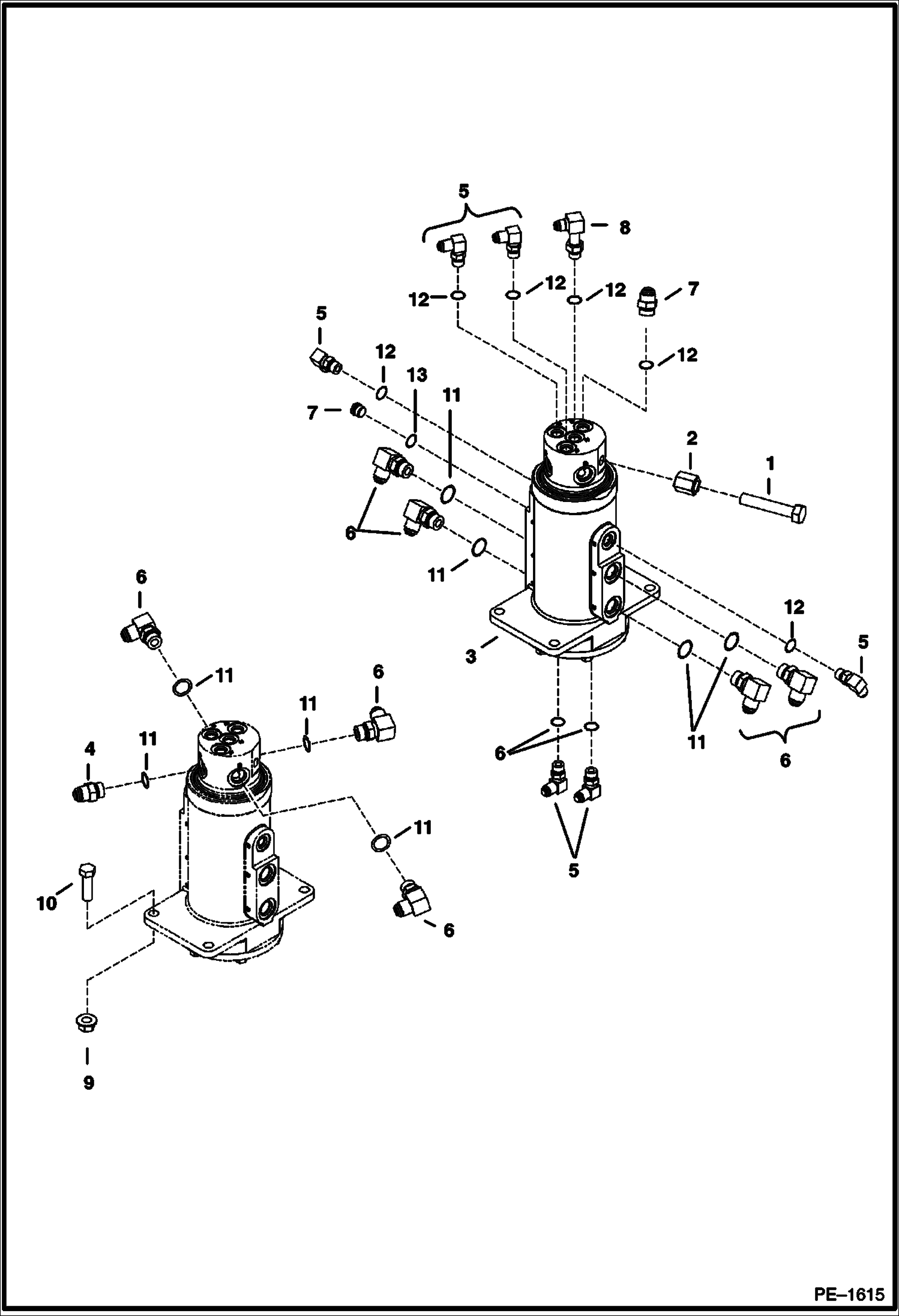

Запчасти Bobcat 334 HYDRAULIC CIRCUITRY (Swivel Joint) HYDRAULIC SYSTEM

1

BOLT See Illustration SWIVEL JOINT/ PE3057 - NLA - Use W/NLA 6536478 nut - Order 6810029 swivel stop - Was 6536147 - A

2

NUT Use W/NLA 6536147 screw - Was 6536748 - B

3

7123864

SWIVEL ASSY See Illustration SWIVEL JOINT/ PE3057 - Was 6800524 - A

4

15KB0808

FITTING, HYD CONNECTOR W/Ref. 11 - Was 15KN00006B - A

4

97K8

O-RING flare end

5

17KB0606

FITTING W/Ref. 12 - Was 17KV00005B - A

5

97K6

O RING flare end

6

17KB0808

FITTING, HYD ELBOW W/Ref. 11 - Was 17KN00006B - A

7

19KB0606

TEE W/Ref. 12 - Was 15KV00005B - B,D

7

97K6

O RING flare end

8

ELBOW NLA - Was 6805242 - A

8

97K8

O-RING flare end

8

6812815

FITTING

9

51DM12

NUT

10

7CM1240

SCREW

11

79K8

O RING 10

12

79K6

O RING 10

13

79K6

O RING 10
