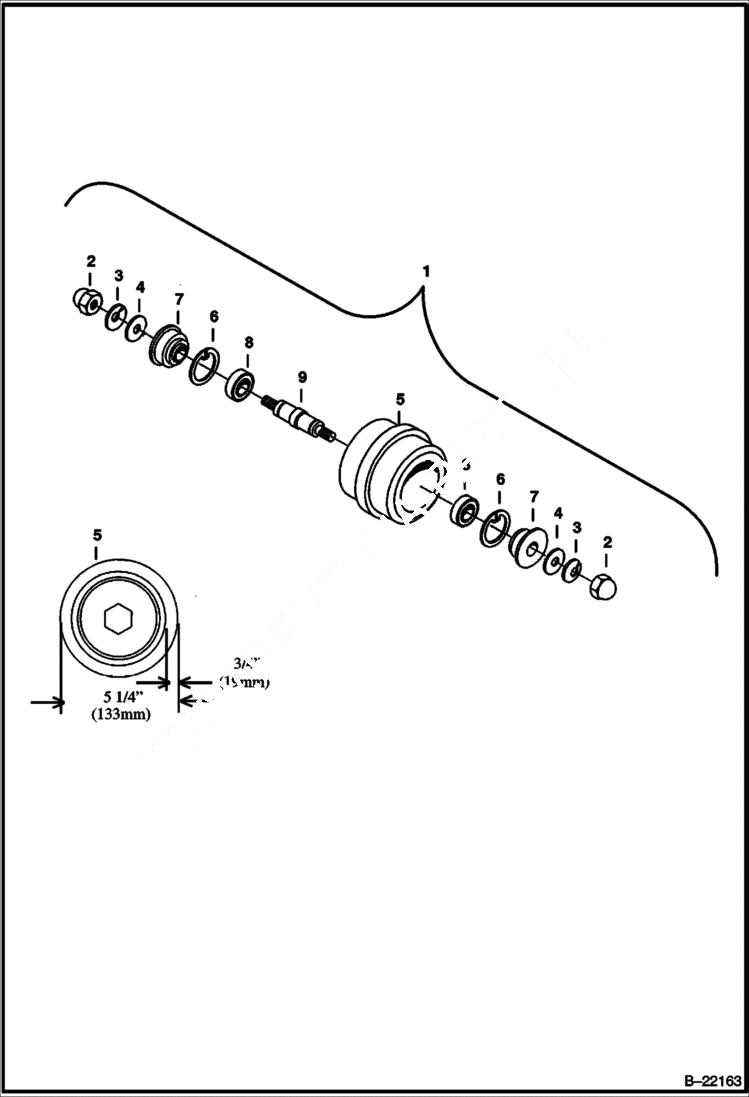

Запчасти Bobcat 334 TRACK ROLLER (Rubber Tracks) (S/N & Above) UNDERCARRIAGE

1

ROLLER ASSY See Illustration TRACK ROLLER/ NA2024 - NLA - Ref. 2-9 - Was 6814882 - A

2

1DM20

NUT

3

6EM200

WASHER

4

15EM200

WASHERS

5

6815120

ROLLER See Illustration TRACK ROLLER/ B17000 - Check outer diameter before ordering parts - for additional rooler - Was 6814883 - A

6

7JM72

SNAP RING

7

6679881

SEAL, OIL

8

6680291

BEARING

9

6810769

SHAFT
