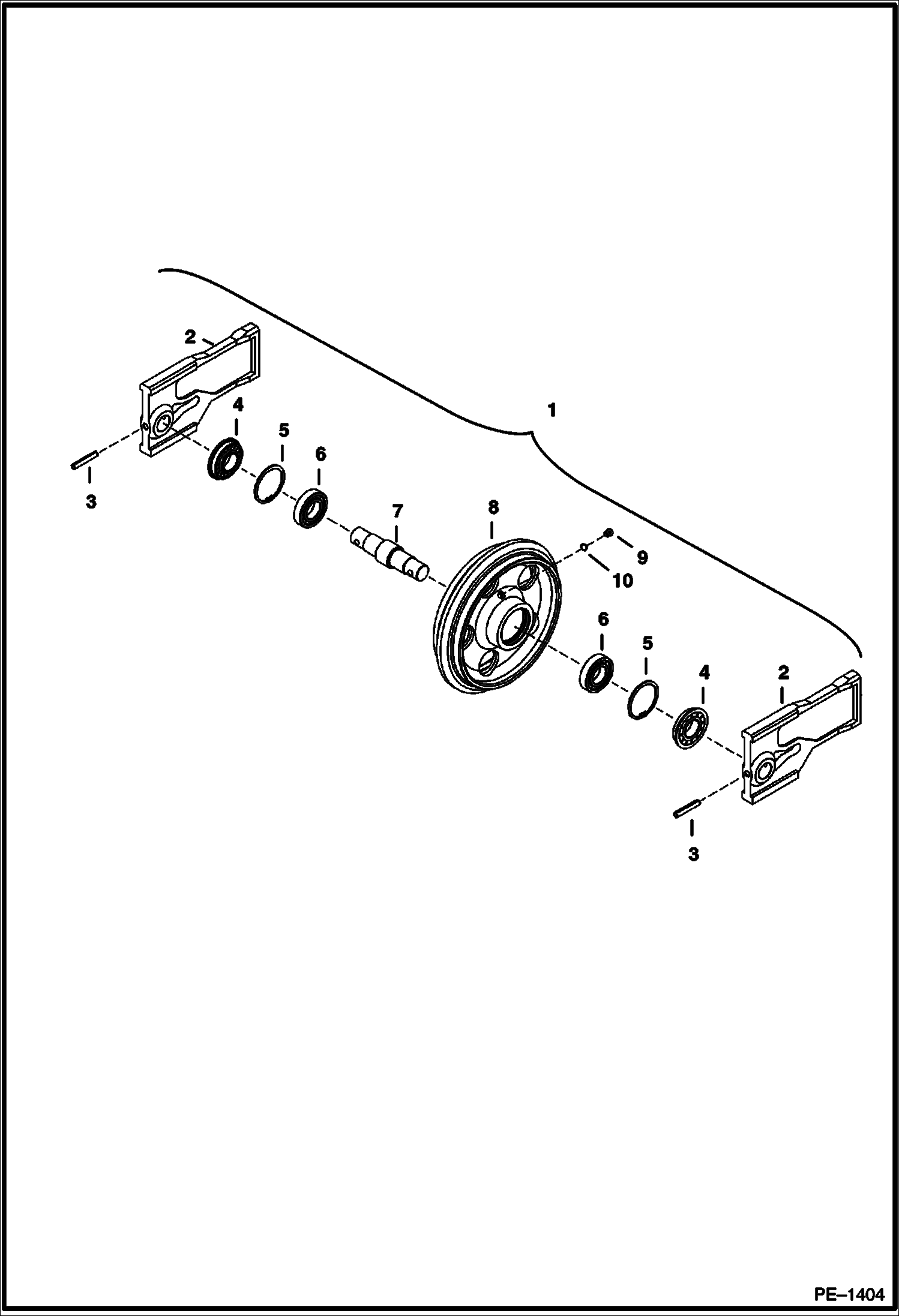

Запчасти Bobcat 334 FRONT IDLER (W/ Holes In Idler) (S/N 232511001-13787, 232711001-11616 & 232611001-12803) UNDERCARRIAGE

1

FRONT IDLER See Illustration FRONT IDLER/ NA6085 NLA - assy - Ref. 2-8 - rubber track - Was 6807909 - A

1

FRONT IDLER See Illustration FRONT IDLER/ NA6085 NLA - assy - Ref. 2-8 - steel track - Was 6807924 - A

2

6596481

BLOCK

3

2JM1060

PIN

4

SEAL NLA - order 6679881 - Was 6725082 - A

5

7JM72

SNAP RING

6

6684339

BEARING Was 6655856 - A

7

6588997

SHAFT

8

IDLER NLA - W/12 -3/16''(309mm) diameter - (check outer diameter before ordering) - rubber track - order 6814881 & (seal) 6679881 - Was 6807910 - A

8

IDLER NLA - W/11-3/4'' diameter - steel track - order 6814885 & (seal) 6679881 - Was 6588998 - A

9

90K3

PLUG W/Ref.10 - Was 90KV3 - D

10

95K4

O-RING
