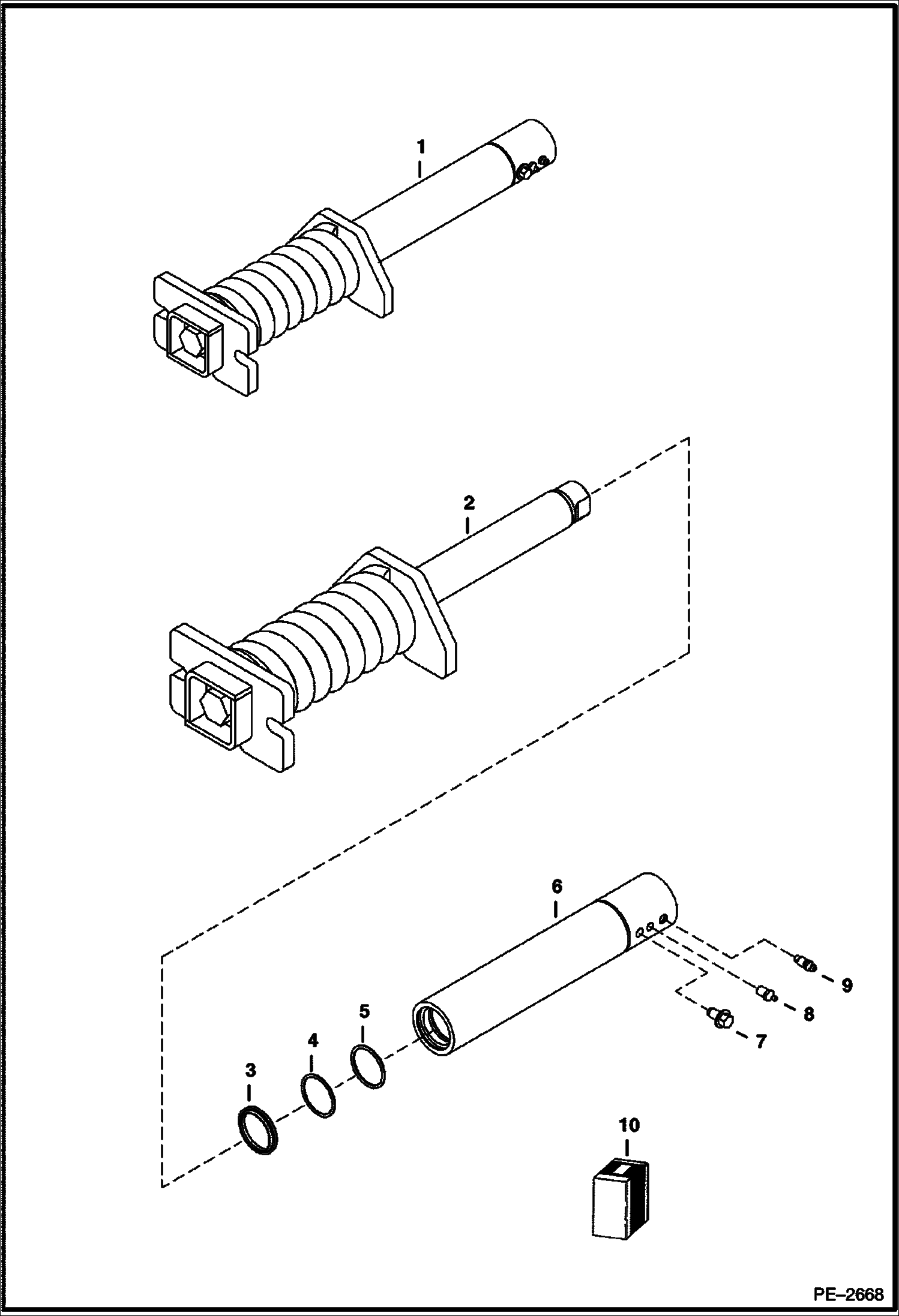

Запчасти Bobcat 334 TRACK TENSIONER (With 1.75 (44.5 mm) O.D. Non-replaceable Shaft) (S/N 232514715, 232613506, & 232711753 & Above) UNDERCARRIAGE

1

CYLINDER See Illustration TRACK TENSIONER/ PE3895 NLA - Ref. 2-9 - Order 7181326 - for rubber tracks only - Was 6817235 - A

1

CYLINDER See Illustration TRACK TENSIONER/ PE3895 NLA - Ref. 2-9 - Order 7181326 cylinder & 7164410 spacer - for steel tracks only - Was 6817652 - A

2

SHAFT NSS - Order Ref. 1

3

6686999

WIPER, ROD CYL

4

6684445

RING back-up

5

6689672

O-RING Was 6684446 - A

6

TUBE NLA - 2.5'' (64 mm) O.D. & 12.97'' (329 mm) long - Order 7181326 track tensioner assy - Was 7151636 - A

7

26GM10020

BOLT

8

6655752

FITTING 68,900 kpa (10,000 psi) - DO NOT SUBSTITUTE

9

6645812

SCREW, BLEED

10

7107719

KIT seal - w/Ref. 3, 4, & 5
