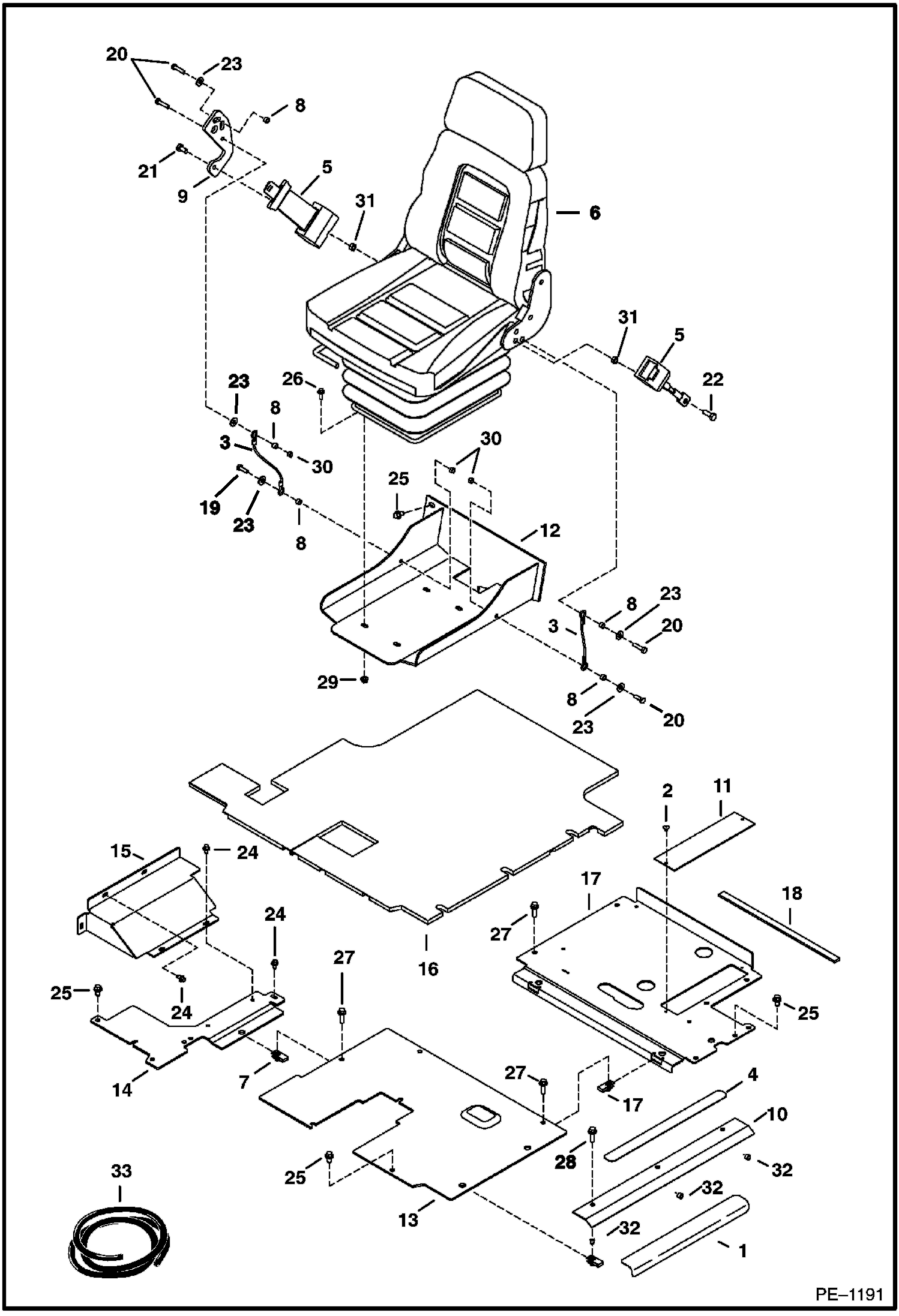

Запчасти Bobcat 334 OPERATOR AREA & SEAT MAIN FRAME

1

6588953

TREAD

2

6589675

SCREW

3

6589689

TETHERS

4

6593245

TREAD

5

6670865

SEAT BELT

6

SEAT NLA - vinyl - Order 6685657 & redrill mounting holes as required - Was 6672520 - A

7

6675722

NUT

8

6802539

SPACER

9

6803068

BRACKET

10

6808077

ANGLE

11

6808416

COVER

12

6808586

MOUNT

13

6815988

PLATE floor - Was 6808933 - A

14

6808934

PLATE floor

15

6808937

COVER

16

6809136

MAT canopy

17

6809916

PLATE floor

18

INSULATION NLA - use 17' of Ref. 33 - Was 6809703 - A

19

1CM825

BOLT

20

1CM835

BOLT

21

1CM1020

BOLT

22

1CM1030

BOLT

23

25E16

WSHR

24

26GM8016

SCREW

25

26GM10020

BOLT

26

29CM816

SCREW Was 29CM00820B - B

27

29CM1025

BOLT

28

29CM1045

BOLT Was 29CM01030B - B

29

51DM8

NUT

30

53DM8

NUT

31

53DM10

NUT

32

6503451

SPACER

33

7001454

SEAL, BULK/FT bulk - sold per foot - Was 6803188 - A
