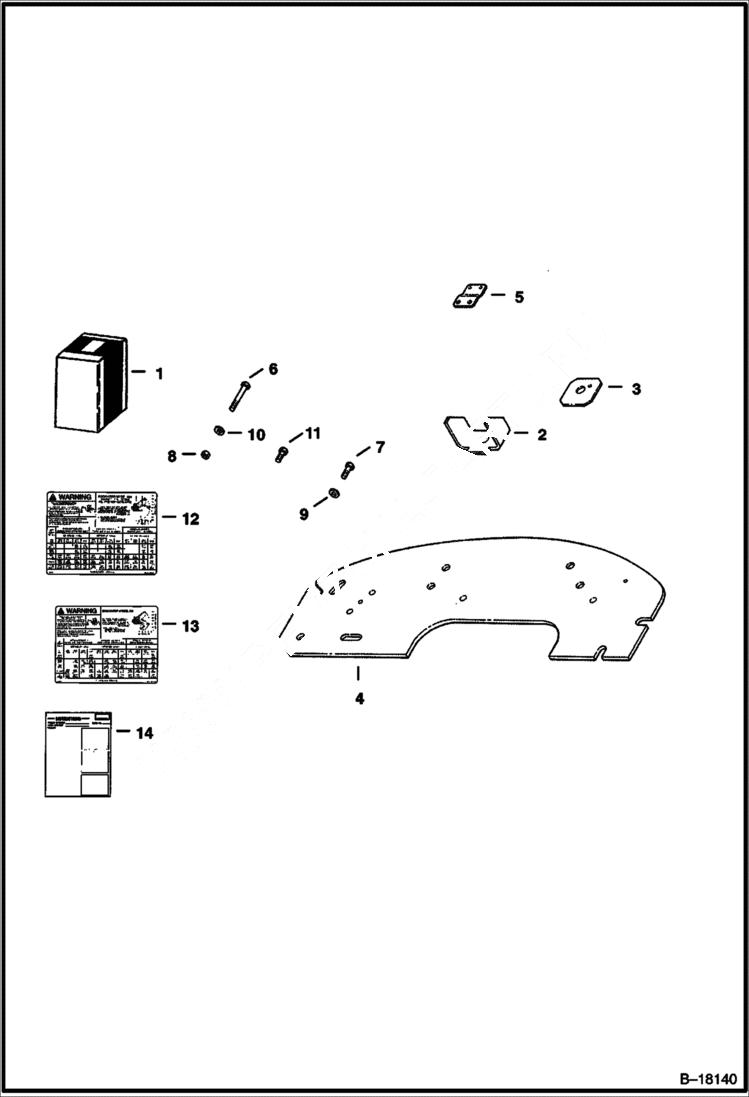

Запчасти Bobcat 334 COUNTERWEIGHT ACCESSORIES & OPTIONS

1

KIT NLA - SALES - Order components - Was 6805640 - A

2

6805557

BRACKET

3

6805558

PLATE

4

PLATE NLA - .25'' thick, 43lbs. - Order 6807155 - Was 6805559 - A

4

PLATE NLA - 1'' thick, 171lbs. - Order 6807155

4

6807155

PLATE 2'' thick, 334lbs.

5

6805620

PLATE

6

17C1680

BOLT

7

17C648

BOLT 5

8

61D16

LCKNUT

9

61D6

NUT 5

10

28E16

WASHER

11

26GM8016

SCREW

12

6805626

DECAL

13

6805625

DECAL

14

6900813

INSTRUCTIONS Was 6900814 - D
