Запчасти Bobcat 334 ENGINE STOP LEVER POWER UNIT

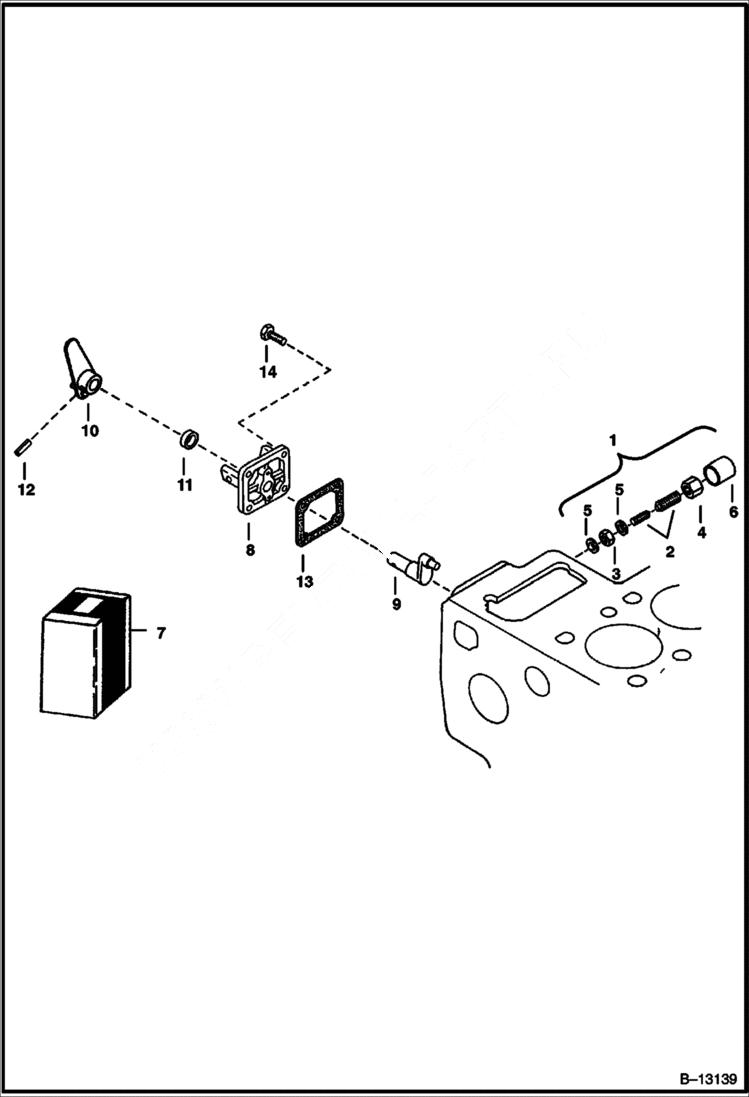

Схема запчастей Bobcat 334 - ENGINE STOP LEVER POWER UNIT

Артикул

Название

Примечание

Количество

1

3974975

IDLER Assy., idle - Ref. 2 - 6

2

6653906

BOLT ASSY. Adjusting

3

2DM8

NUT Adjusting

4

3974978

NUT

5

3974095

MET-GASK

6

3974979

CAP

7

6676060

LEVER ASSY. eng. stop - Ref. 8-12 - Was 6655879 - A

8

6655230

COVER Injection pump

9

6655231

SHAFT Lever

10

6655232

LEVER Engine stop

11

6685476

SEAL oil - Was 6598703 - B

12

6598098

PIN Spring

13

6666783

GASKET Pump cover

14

6652580

BOLT

Выбрано товаров: 14
