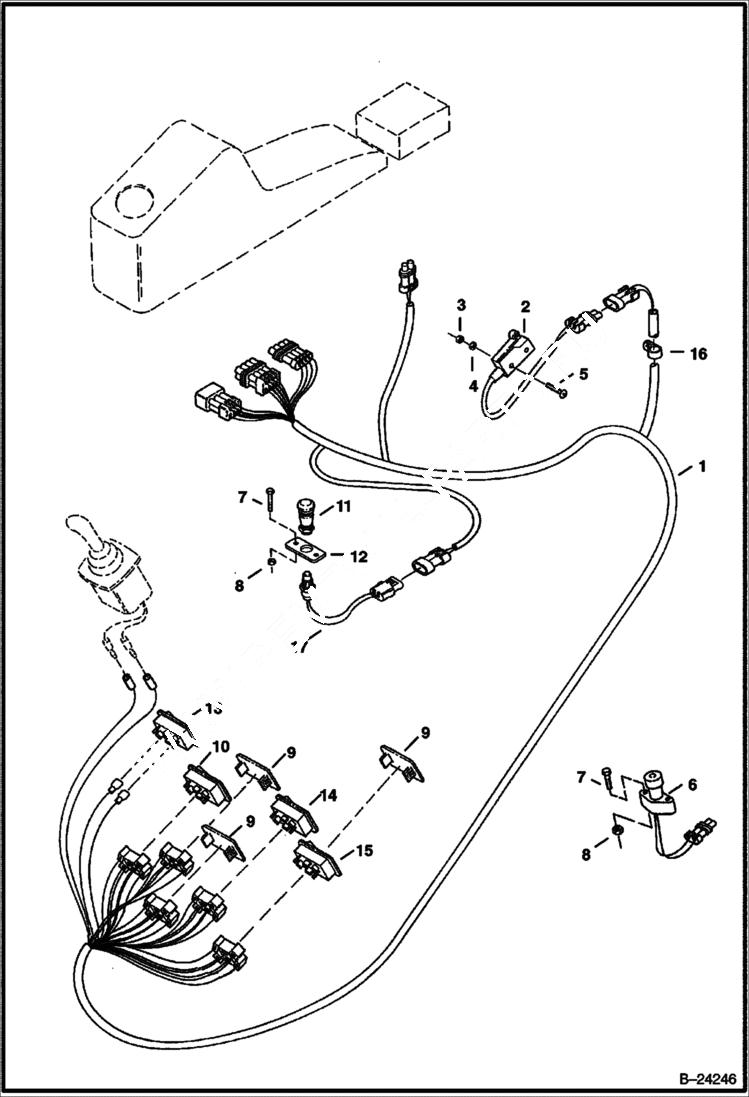

Запчасти Bobcat 334 ELECTRICAL SYSTEM (Left Hand Console) (S/N 512915200 & Above, 516711001 & Above, 517711001 & Above) ELECTRICAL SYSTEM

1

6802683

HARNESS L.H. Console

2

6661150

SWITCH, ROLLER MICRO Micro - Console Lock-out

3

12D6

NUT 10

4

12E6

WASHER

5

85G616

SCREW 10

6

SWITCH NLA - Two Speed - Order Refs. 11, 12 & 17 - Was 6667705 - A

7

1CM625

BOLT Was 6667705 - D

8

1DM6

NUT

9

6665314

PLUG Switch Hole

10

6665315

SWITCH Light

11

6673974

ACTUATOR Two speed

12

6804965

BRACKET For adapting old style switch to new style two speed switch - not factory installed

13

6671113

SWITCH if equipped - wiper/washer

14

6668816

SWITCH if equipped - beacon light

15

6677112

KIT,PUSH BUTTON for future functions - attachments

16

30H50

CLIP Was 31H000042B - B

17

6673973

SWITCH Two speed
