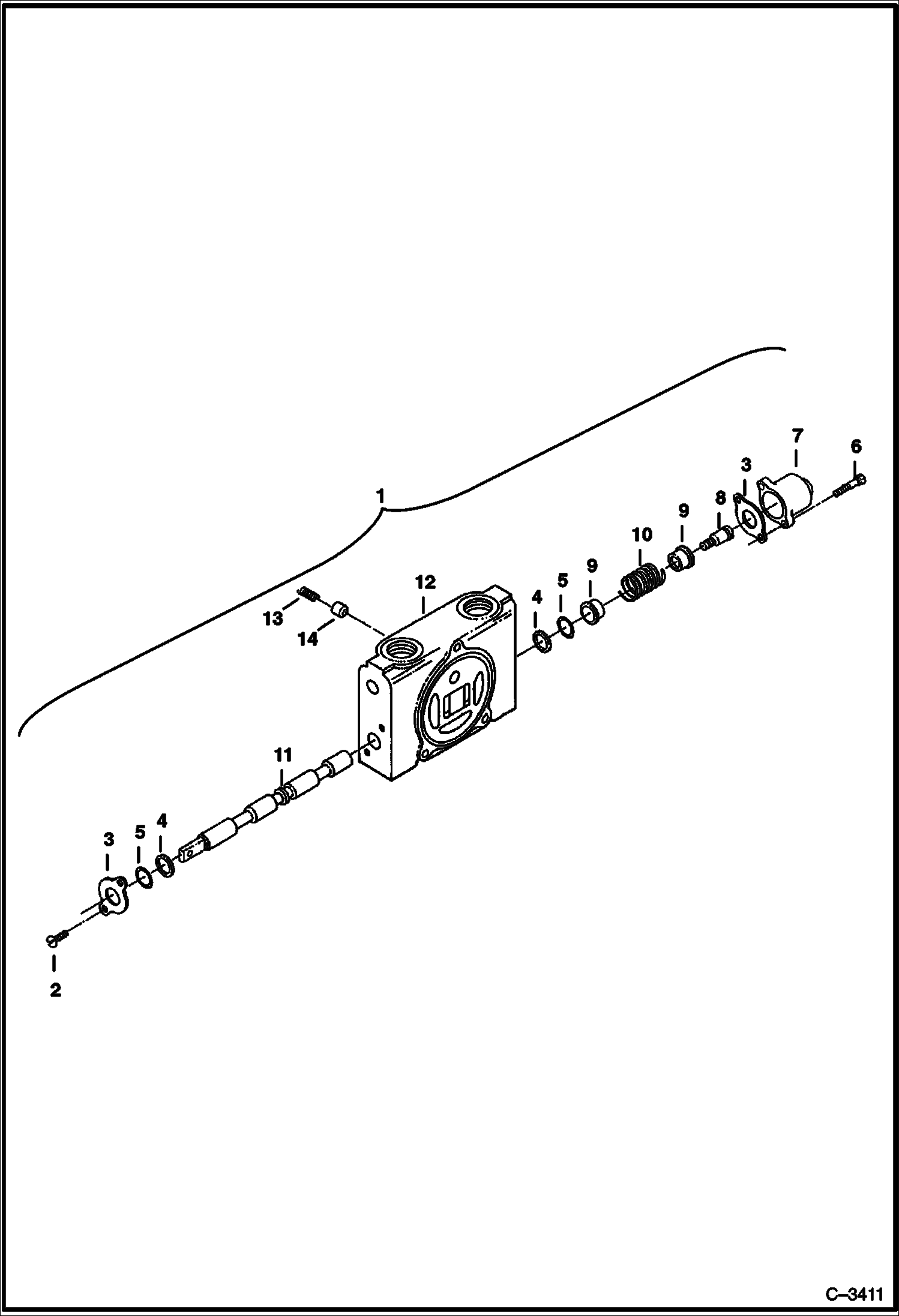

Запчасти Bobcat 334 VALVE SECTION (Blade) HYDRAULIC SYSTEM

1

6668983

VALVE Section - Blade - W/Ref. 2-14

2

93G406

SCREW

3

948016

PLATE

4

6668972

O-RING

5

948021

SEAL wiper

6

73G412

SCREW

7

948192

CAP

8

6665434

BOLT

9

948017

SEAT Spring

10

948018

SPRING

11

SPOOL NSS - Order Ref. 1

12

HOUSING NSS - Order Ref. 1

13

6630966

SPRING

14

6630965

POPPET
