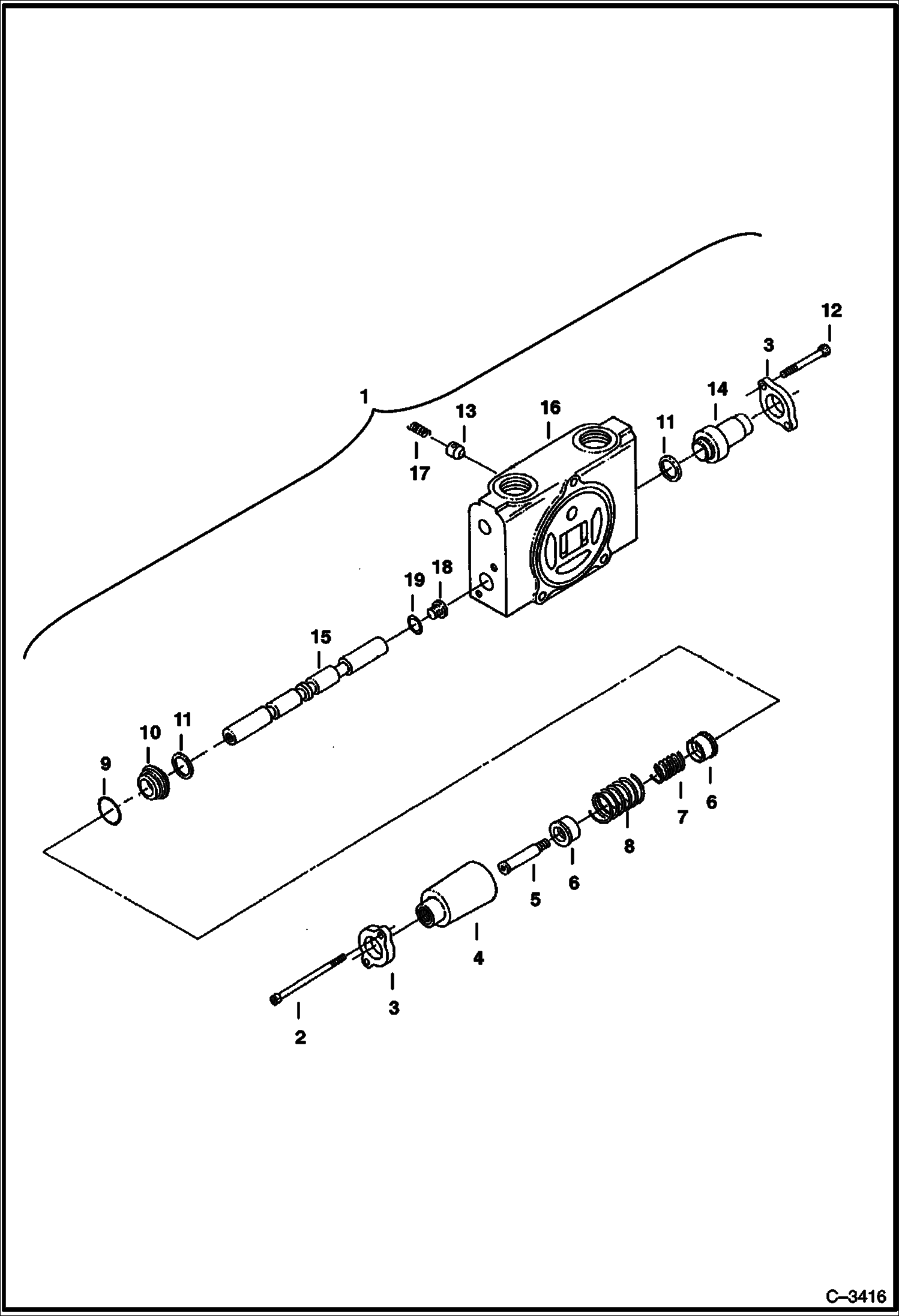

Запчасти Bobcat 334 VALVE SECTION (Swing) HYDRAULIC SYSTEM

1

6668976

VALVE Section - Swing - W/Ref. 2-19

2

6665439

SCREW

3

6665442

PLATE

4

6668964

END COVER

5

6668966

BOLT

6

6668970

SEAT Spring

7

6668968

SPRING Inner

8

6668969

SPRING Outer

9

6665435

O-RING

10

6665443

RETAINER

11

6665432

O-RING

12

73G424

SCREW

13

6630965

POPPET

14

6668965

END COVER

15

SPOOL NSS - Order Ref. 1

16

HOUSING NSS - Order Ref. 1

17

6630966

SPRING

18

6668958

PLUG

19

79K3

O RING 10
