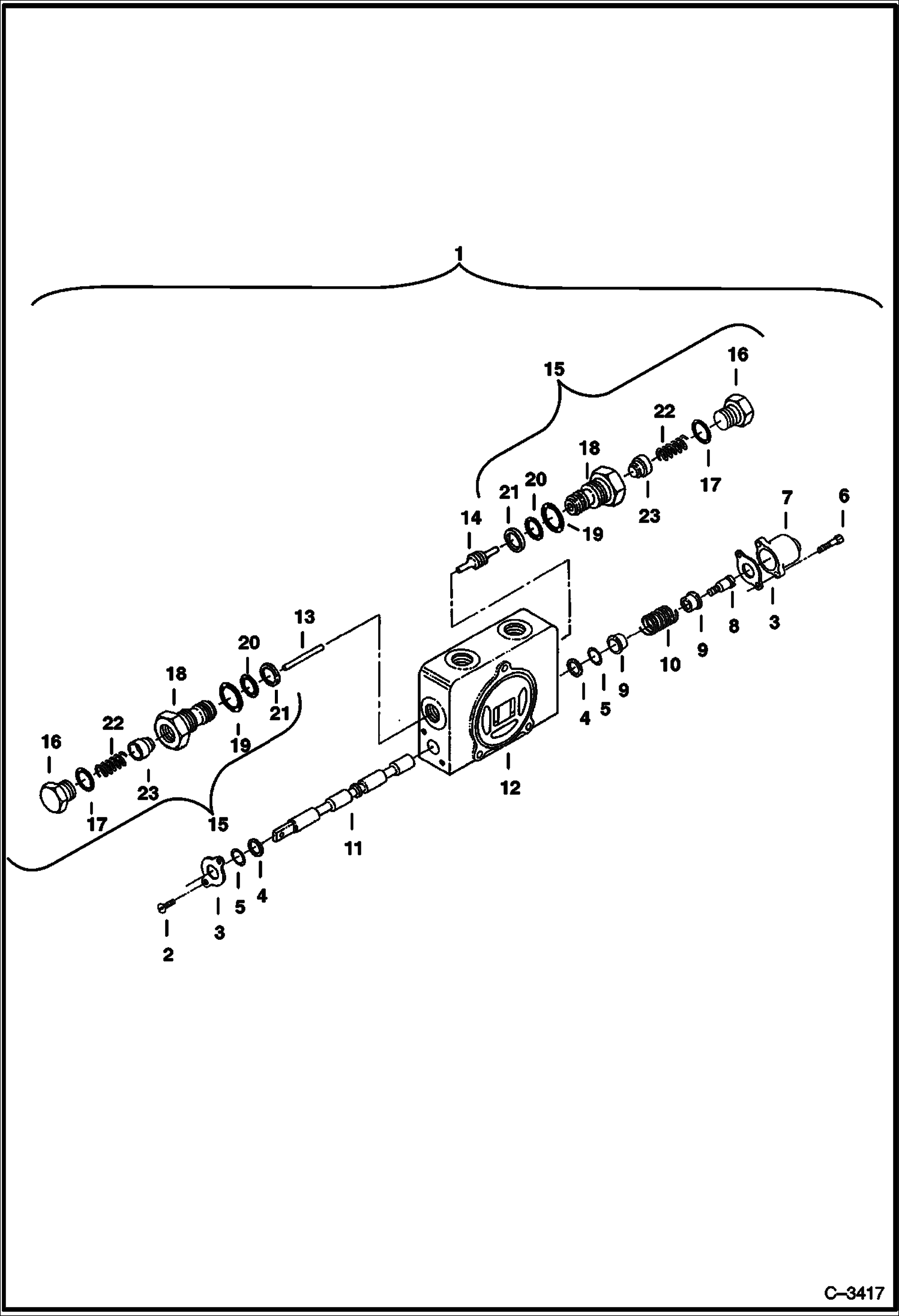

Запчасти Bobcat 334 VALVE SECTION (Boom Swing) HYDRAULIC SYSTEM

1

6668985

VALVE Section - Boom Swing - W/Refs. 2-11

2

93G406

SCREW

3

948016

PLATE

4

6668972

O-RING

5

948021

SEAL wiper

6

73G412

SCREW

7

948192

CAP

8

6665434

BOLT

9

948017

SEAT Spring

10

948018

SPRING

11

SPOOL NSS - Order Ref. 1

12

HOUSING NSS - Order Ref. 1

13

6665464

PIN

14

6665462

SPOOL

15

6665463

VALVE ASSY. Lock Out - W/Ref. 8, 11, 17 & 19-23

16

6665470

PLUG

17

6665471

O-RING

18

HOUSING NSS - Valve - Order Ref. 16

19

79K10

O RING 10

20

6665473

O-RING

21

6665474

BACK-UP RING

22

6665472

SPRING

23

6670696

POPPET Order Ref. 16
