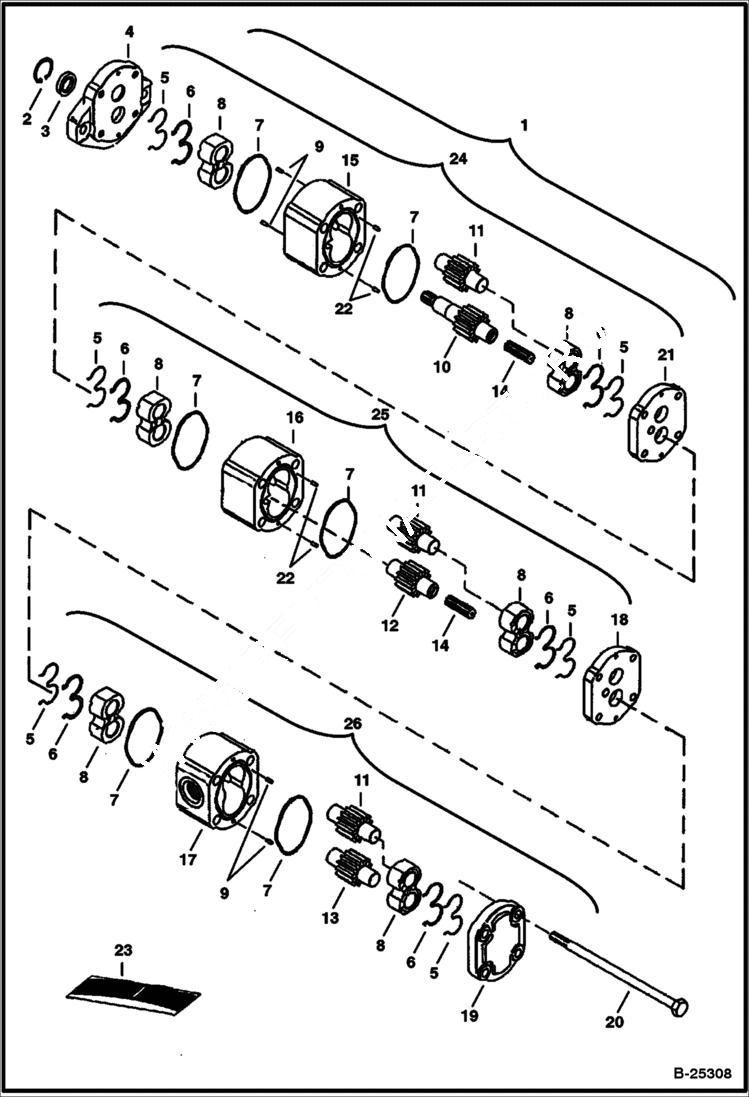

Запчасти Bobcat 334 TRIPLE GEAR PUMP (S/N 512913001 - 512915199) HYDRAULIC SYSTEM

1

6668699

PUMP, GEAR TRIPLE Assy.

2

6662925

SNAP RING

3

6662926

SEAL Incl. W/Ref. 23

4

6663978

COVER front

5

BACK-UP RING NSS - Incl. W/Ref. 23

6

SEAL NSS - Incl. W/Ref. 23

7

O-RING NSS - Incl. W/Ref. 23

8

6663979

BEARING

9

6662929

DOWEL PIN .403'' (10,25 mm) long

10

GEAR NLA - Drive - Incl. W/Ref. 24

11

GEAR NLA - Idler - Incl. W/Ref. 24-26

12

GEAR NLA - Center pump - Incl. W/Ref. 25

13

GEAR NLA - End pump - Incl. W/Ref. 26

14

6670632

SHAFT drive - Was 6663984 - B

15

HOUSING NLA - Front - Order Ref. 24

16

HOUSING NLA - Center - Order Ref. 25

17

HOUSING NLA - End - Order Ref. 26

18

6663989

PLATE

19

6662932

COVER End

20

6674159

BOLT

21

6664583

PLATE

22

6665621

DOWEL PIN .716'' (18,20 mm) long

23

6663990

SEAL KIT Includes Refs. 3 (1), 5 (6), 6 (6) & 7 (6)

24

SECTION KIT NLA - Front - Incl. Refs. 5 (2), 6 (2), 7 (2), 8 (2), 9 (2), 10 (1), 11 (1), 14 (1), 15 (1) & 22 (2) - Was 6663986 - A

25

SECTION KIT NLA - Center - Incl. Refs. 5 (2), 6 (2), 7 (2), 8 (2), 9 (2), 11 (1), 12 (1), 14 (1), 16 (1) & 22 (2) - Was 6669606 - A

26

SECTION KIT NLA - End - Incl. Refs. 5 (2), 6 (2), 7 (2), 8 (2), 9 (2), 11 (1), 13 (1) & 17 (1) - Was 6669607 - A
