Запчасти Bobcat 334 HYDRAULIC CIRCUITRY (L.H. Joystick Controls - W/ISO/Standard Selector Valve) (S/N 512917113 & Above, 516711271 & Above, and 517711001 & Above) HYDRAULIC SYSTEM

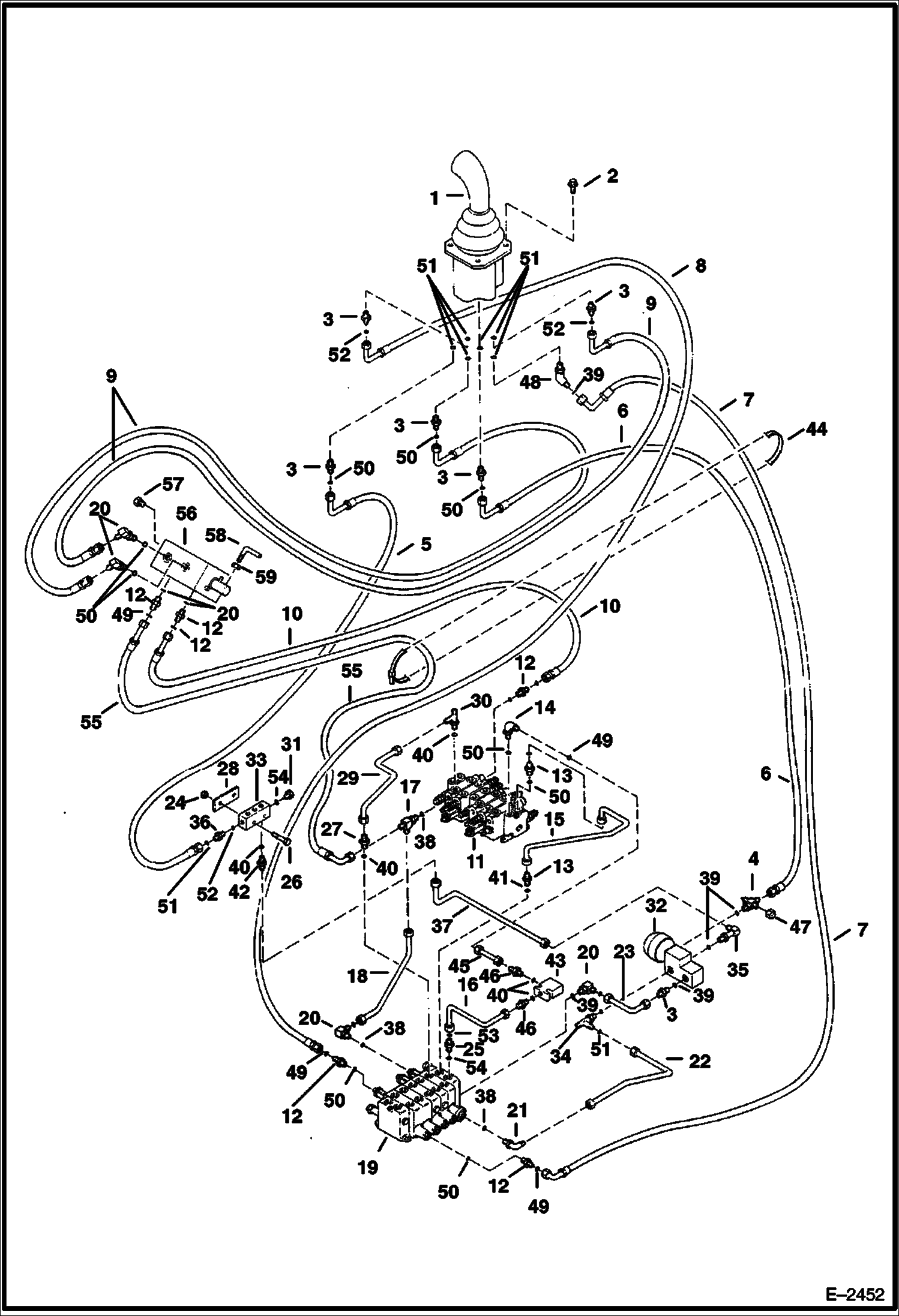

Схема запчастей Bobcat 334 - HYDRAULIC CIRCUITRY (L.H. Joystick Controls - W/ISO/Standard Selector Valve) (S/N 512917113 & Above, 516711271 & Above, and 517711001 & Above) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6667721

JOYSTICK See Illustration L.H. JOYSTICK CONTROLS/ B14600 - LH

2

26GM8020

SCREW

3

CONNECTOR NLA - W/Ref. 51 & 52 - tapered boss face - Was 6804359 - A

3

15KB0406

FTG HYD S CONNECTOR W/Ref. 52 - flat boss face

4

6578209

TEE W/Ref. 39

5

6804000

HOSE

6

6804001

HOSE

7

6804106

HOSE Was 6804006 - D

8

6804002

HOSE

9

6805427

HOSE

10

6805426

HOSE

11

6670320

VALVE See Illustration CONTROL VALVE/ B25309 - Control

12

15KB0404

FTG HYD S Connector W/Ref. 49 & 50

13

6800567

ADAPTER W/Ref. 41

14

17KB0404

FTG HYD ELBOW 90 W/Ref. 49 & 50 - Was 17KN00003B - A

15

6628471

TUBE

16

6801029

TUBE

17

21K3

CONNECTOR W/Ref. 38 - flat boss face

18

6628672

TUBE

19

6670319

VALVE See Illustration CONTROL VALVE/ D2339 Control

20

17K3

ELBOW W/Ref. 49 & 50

21

17KB0604

ELBOW UNION W/Ref. 38 - Was 6579647 - A

22

6628671

TUBE

23

6800090

TUBE

24

4DM8

NUT

25

15KB1010

FITTING, HYD CONNECTOR W/Ref. 53 & 54 - Was 15KN00007B - A

26

1CM885

BOLT

27

6656391

CHECK VALVE W/Ref. 40

28

6628721

PLATE

29

6628464

TUBE

30

21KB0808

FTG HYD STRAIGHT TEE Was 21KN00006B - A

31

24K5

PLUG W/Ref. 54 - Was 24KN00005B - A

32

6667819

VALVE See Illustration ACCUMULATOR VALVE/ C3418 - Accumulator

33

6667830

DRAIN BLOCK

34

21KB0606

FTG HYD STRAIGHT TEE W/Ref. 51 & 52 - Was 21KN00005B - A

35

6558510

ELBOW W/Ref. 39

36

15KB0606

FITTING, HYD CONNECTOR W/Ref. 51 & 52

37

6628562

TUBE

38

79K4

O RING 10 flat boss face

39

79K6

O RING 10

40

79K8

O RING 10

41

79K10

O RING 10

42

743108

FITTING W/Ref. 40

43

6676658

VALVE assy - Was 6669593 - A

43

6672514

VALVE check

43

6672515

KIT, SEAL

44

6624289

STRAP, TIE

45

6628551

TUBE 50 & 51

46

731793

CONNECTR W/Ref. 40

47

36K5

CAP

48

6707895

ELBOW W/Ref. 39

49

97K4

O'RING 37 degree Flare End

50

99K4

O'RING O-Ring Boss End

51

97K6

O RING 37 degree Flare End

52

99K6

O RING O-Ring Boss End - tapered boss end

52

79K6

O RING 10 flat boss end

53

97K8

O-RING 37 degree Flare End

54

99K8

O-RING O-Ring Boss End

55

6805425

HOSE

56

6805768

VALVE See Illustration ISO/STD CONVERSION KIT/ TS1631 - ISO/Standard Selector - Was 6805257 - A

57

29CM812

BOLT

58

6804251

HANDLE

59

62D4

NUT
