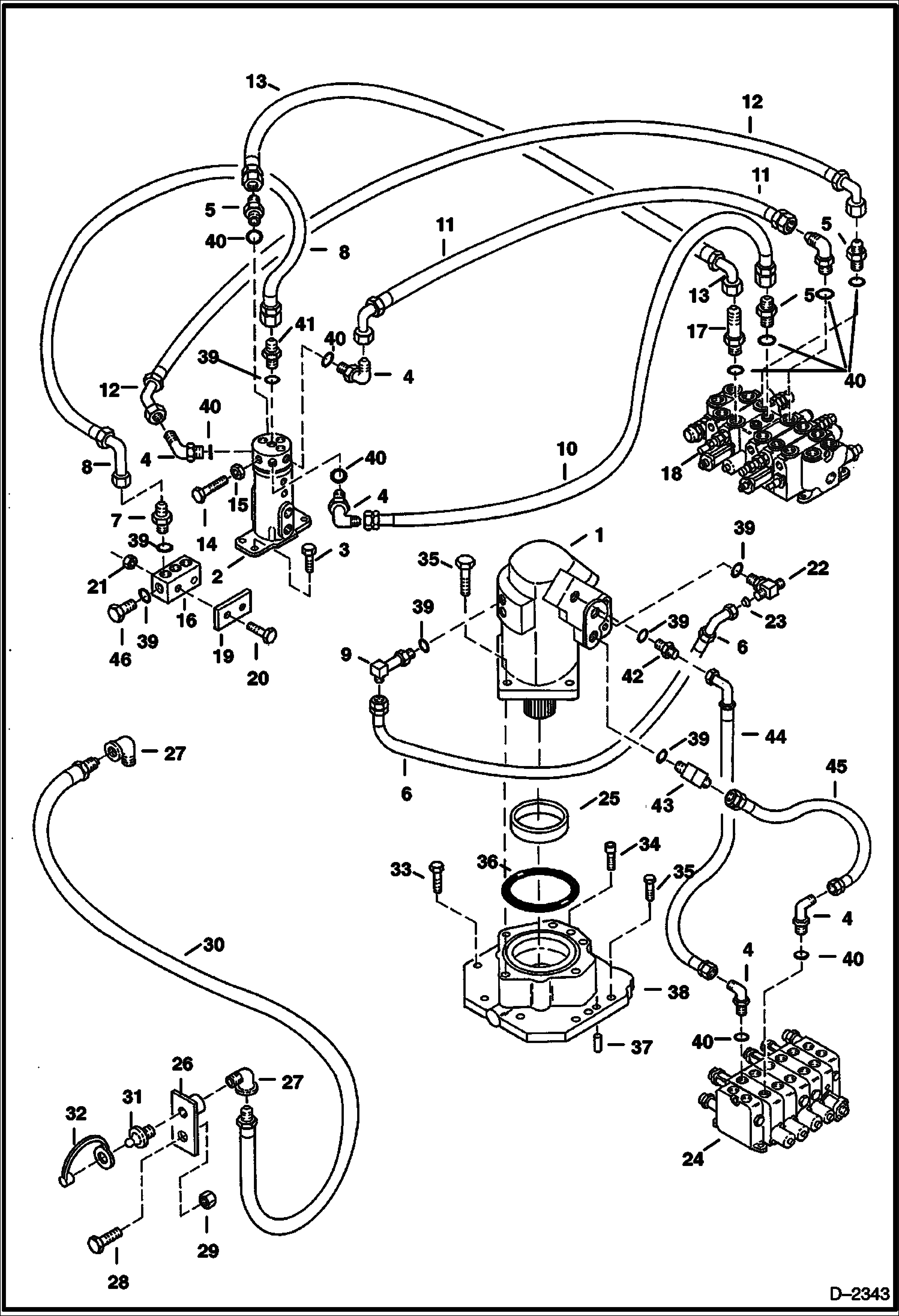

Запчасти Bobcat 334 HYDRAULIC CIRCUITRY (Valve to Swivel Joint to Drain Block) (S/N 512913001 - 512915199) HYDRAULIC SYSTEM

1

6667882

MOTOR, DRIVE HYD See Illustration SWING MOTOR/ C3421 - Swing

2

7123864

SWIVEL ASSY See Illustration SWIVEL JOINT/ PE3057 - Was 6800524 - A

3

1CM1230

BOLT

4

17K6

ELBOW W/Ref. 40

5

15K6

ADAPTER W/Ref. 40

6

6708457

HOSE

7

15K5

FITTING W/Ref. 39

8

6628589

HOSE

9

6558510

ELBOW W/Ref. 39

10

6628801

HOSE

11

6628800

HOSE

12

6628782

HOSE

13

6628583

HOSE

14

BOLT See Illustration SWIVEL JOINT/ PE3057 - NLA - Use W/NLA 6536478 nut - Order 6810029 swivel stop - Was 6536147 - A

15

NUT Use W/NLA 6536147 screw - Was 6536748 - B

16

6675142

BLOCK Was 6667830 - A

17

16K6

FITTING W/Ref. 40

18

6668197

VALVE See Illustration CONTROL VALVE/ B25309 - Control

18

6670320

VALVE See Illustration CONTROL VALVE/ B25309 - Control

19

6628721

PLATE

20

1CM870

BOLT

21

4DM8

NUT

22

19K5

FITTING W/Ref. 39

23

6595256

ORIFICE .052 inch (1.32mm) long

24

6670319

VALVE See Illustration CONTROL VALVE/ D2339 - Control

25

6513681

BEARING

26

6586104

PLATE

27

26F1

PIPE FITG

28

29CM1025

BOLT

29

4DM10

NUT

30

6628633

HOSE

31

10H25

FITTING, GREASE 5 Grease

32

6652943

COVER grease fitting

33

7CM1250

BOLT

34

3GM12100

BOLT

35

7CM1240

SCREW

36

25K30508

O-RING, 10

37

20JM1025

DOWEL PIN

38

6628417

MOUNT See Illustration MOUNT ASSY/ C3393 - Assy.

39

79K6

O RING 10 flat boss face

39

99K6

O RING tapered boss face

40

79K8

O RING 10

41

16K5

FITTING W/Ref. 39 - flat boss face

41

16KB0606

FTG HYD L CONNECTOR W/Ref. 39 - tapered boss face - Was 16KN00005B - A

41

97K6

O RING flared end

42

87F5

FITTING Use W/Hose 6800537 only

43

18K5

ELBOW W/Ref. 39

44

6800323

HOSE

45

6800324

HOSE

46

24K5

PLUG W/Ref. 39
