Запчасти Bobcat 334 HYDRAULIC CIRCUITRY (R.H. Joystick Controls - Bucket & Arm) (Standard Control Pattern) (S/N 512913001 - 512915199) HYDRAULIC SYSTEM

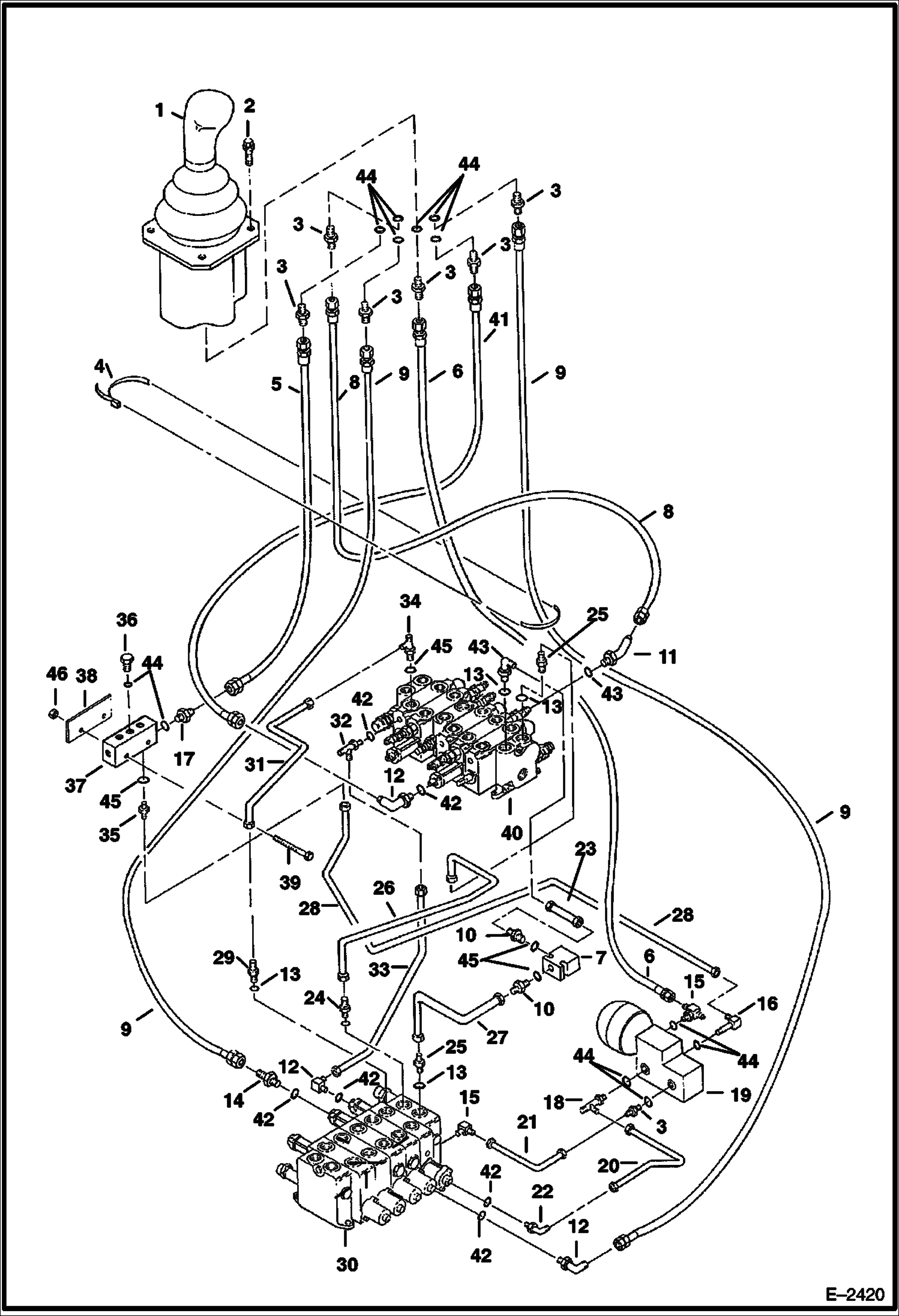

Схема запчастей Bobcat 334 - HYDRAULIC CIRCUITRY (R.H. Joystick Controls - Bucket & Arm) (Standard Control Pattern) (S/N 512913001 - 512915199) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6667722

JOYSTICK, RH See Illustration R.H. JOYSTICK CONTROLS/ B14601 - RH

2

26GM8020

SCREW

3

1308081

ADAPTER W/Ref. 44

4

6624289

STRAP, TIE

5

6628670

HOSE

6

6539284

HOSE

7

6676658

VALVE assy - Was 6669593 - A

7

6672514

VALVE check

7

6672515

KIT, SEAL

8

6597588

HOSE

9

6597818

HOSE

10

731793

CONNECTR W/Ref. 45

11

18K3

ELBOW W/Ref. 43

12

17K3

ELBOW W/Ref. 43

13

79K10

O RING 10

14

15K3

CONNECTOR W/Ref. 43

15

19K5

FITTING W/Ref. 44

16

6558510

ELBOW W/Ref. 44

17

15K5

FITTING W/Ref. 44

18

21K5

TEE W/Ref. 44

19

VALVE See Illustration ACCUMULATOR VALVE/ C3418 NLA - Accumulator - Was 6667819 - A

19

6675141

VALVE See Illustration ACCUMULATOR VALVE/ C3418 - Accumulator - Order 6675141

20

6628671

TUBE

21

6800090

TUBE

22

17KB0604

ELBOW UNION W/Ref. 42 - Was 6579647 - A

23

6628551

TUBE

24

6800567

ADAPTER W/Ref. 13

25

15K7

FITTING W/Ref. 13

26

6628471

TUBE

27

6801029

TUBE

28

6628562

TUBE

29

6656391

CHECK VALVE W/Ref. 13

30

6670319

VALVE See Illustration CONTROL VALVE/ D2339 - Control

31

6628464

TUBE

32

21K3

CONNECTOR W/Ref. 43 - flat boss face

32

21KB0404

FITTING, HYD TEE W/Ref. 43 - tapered boss face - Was 21KN00003B - A

32

97K4

O'RING flared end

33

6628672

TUBE

34

21K6

FITTING W/Ref. 45

35

743108

FITTING W/Ref. 45

36

24K5

PLUG W/Ref. 44

37

6675142

BLOCK Was 6667830 - A

38

6628721

PLATE

39

1CM875

BOLT

40

6668197

VALVE See Illustration CONTROL VALVE/ B25309 - Control

40

6670320

VALVE See Illustration CONTROL VALVE/ B25309 - Control

41

6597584

HOSE

42

79K4

O RING 10 flat boss face

42

99K4

O'RING tapered boss face

43

17K7

ELBOW W/Ref. 13

44

79K6

O RING 10

45

79K8

O RING 10

46

4DM8

NUT

Выбрано товаров: 53
