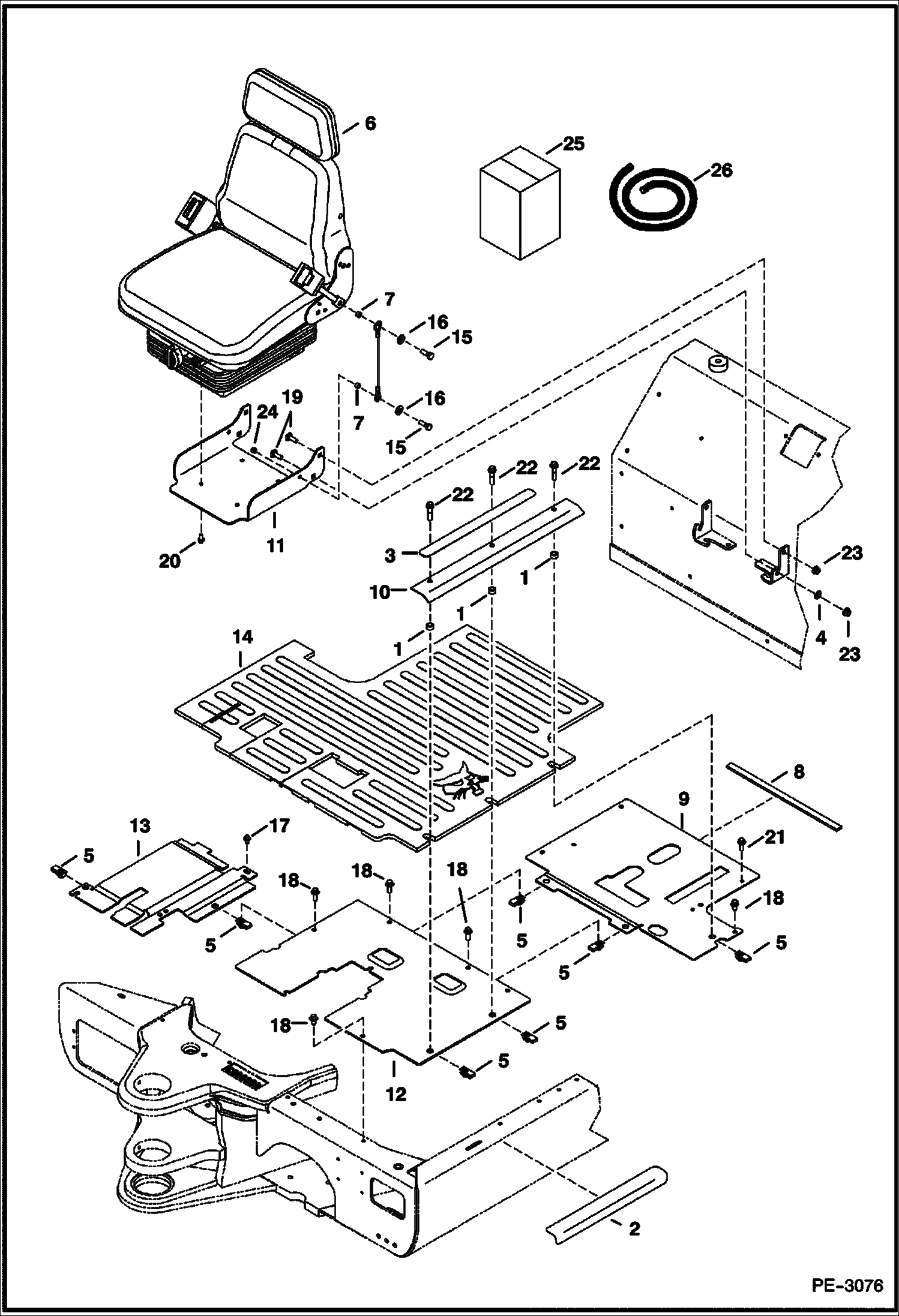

Запчасти Bobcat 331 OPERATOR AREA & SEAT MAIN FRAME

1

6503451

SPACER

2

6588953

TREAD

3

6593245

TREAD

4

6674264

RETAINER NUT

5

6675722

NUT

6

6685657

SEAT, OPERATOR VINYL - EXCAVATOR See Illustration SEAT SUSPENSION/ PE2300 Was 6679464 - A

7

6802539

SPACER

8

INSULATION NLA - 17'' (432 mm) long - Order Ref 26

9

6815965

PLATE recessed

9

7135886

FLOORPLATE flat

10

6816423

ANGLE

11

6816778

SEATPAN

12

7109688

PLATE floor

13

7126871

PLATE floor

14

7130441

MAT canopy - Was 7109818 - A

14

7144684

MAT, FLOOR CANOPY

15

1CM825

BOLT

16

25E16

WSHR

17

26GM8016

SCREW

18

26GM10020

BOLT

19

28CM1030

BOLT

20

29CM816

SCREW

21

29CM1025

BOLT

22

29CM1045

BOLT

23

43DM10

NUT

24

53DM8

NUT

25

6690059

SEAT RAIL KIT seat rail - slide, handle, knob

26

7001454

SEAL, BULK/FT bulk - sold per foot - Was 6803188 - A
