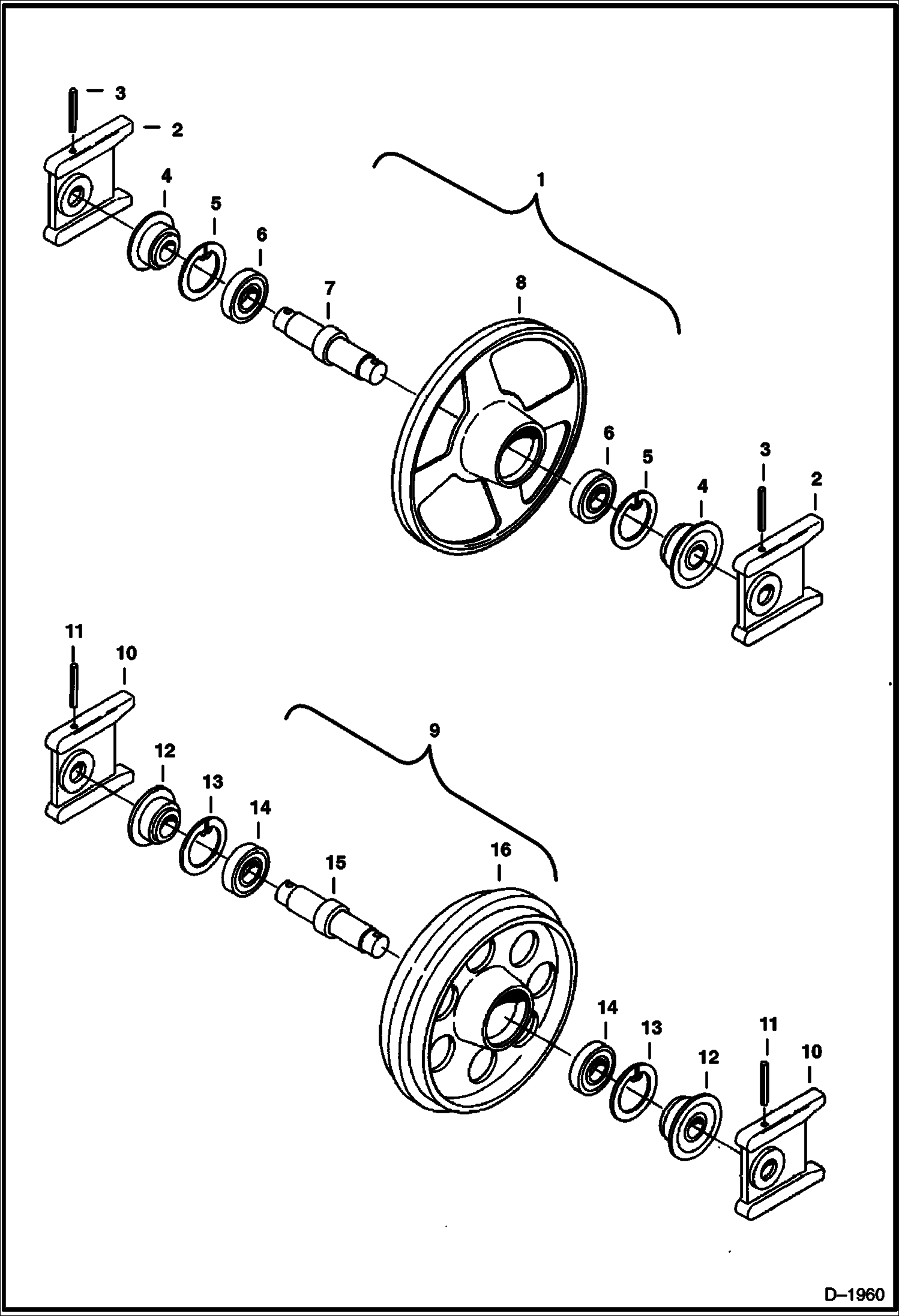

Запчасти Bobcat 331 FRONT IDLER (For All Steel Tracks & For Rubber Tracks on European Models) (W/O Oil Plug) UNDERCARRIAGE

1

FRONT IDLER See BTIE-030 - NLA - Assy. - Ref. 2-8 - For Rubber track - execpt for rubber track 6663906 - See remarks for steel idler also - Order components - Was 6534238 - A

2

6588995

BLOCK Was 6535559 - A

3

2JM1060

PIN

4

6717802

SEAL Was 6655061 - A

5

7JM72

SNAP RING Was 6655060 - A

6

6684339

BEARING Was 6655856 - A

7

6588997

SHAFT Was 6535558 - A

8

6535560

IDLER rubber track

9

IDLER ASSY. NLA - W/Ref. 10-16 - Order 6808250 - Was 6588994 - A

10

6588995

BLOCK

11

2JM1060

PIN

12

6655061

SEAL

13

7JM72

SNAP RING Was 6655060 - A

14

6684339

BEARING Was 6655856 - A

15

6588997

SHAFT Was 6535558 - A

16

IDLER NLA - Order 6808250 - Was 6588998 - A
