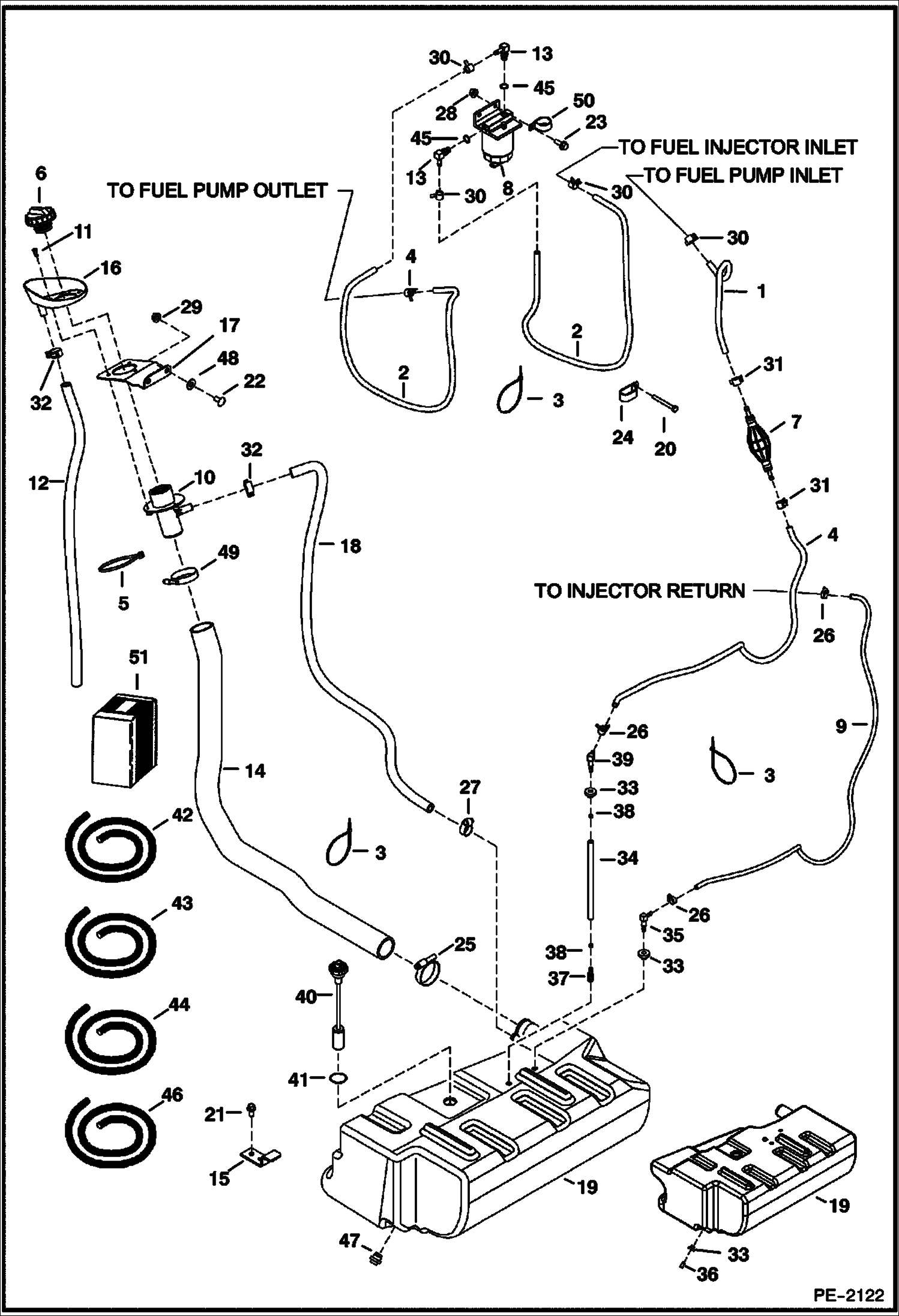

Запчасти Bobcat 331 FUEL SYSTEM POWER UNIT

1

HOSE NLA - 35'' (889 mm) long - Order Ref. 42

2

HOSE NLA - 44'' (1118 mm) long - Order Ref. 42

3

6610510

TIE nylon

4

HOSE NLA - 51'' (1296 mm) long - Order Ref. 42

5

6624289

STRAP, TIE cable

6

6661114

CAP. DIESEL

6

7113340

CAP. DIESEL Europe Only

7

6667170

PUMP 193 mm (7.6'') long

8

6667353

FILTER ASSY

8

6667352

FILTER, FUEL W/SEPARATOR 12

8

6658180

PLUG, BLEED

9

HOSE NLA - 65'' (1651 mm) long - Order Ref. 43

10

6701449

FILLER TUBE

11

7106279

BOLT

12

HOSE NLA - 38'' (966 mm) long - Order Ref. 44

13

6715183

ELBOW W/Ref. 45

14

6808377

HOSE

15

6808384

PLATE

16

6809964

GUARD splash

17

6816940

BRACKET

18

HOSE NLA - vent - 58'' (1474 mm) long - Order Ref. 44

19

NLA - Order 7109689

19

7109689

TANK fuel - Was 6816169 - B

20

1CM870

BOLT

21

26GM10020

BOLT

22

28CM1020

BOLT

23

29CM820

SCREW

24

31H42

CLIP

25

42HC250

CLAMP

26

42HS04

CLAMP, HOSE

27

42HS10

CLAMP

28

43DM8

NUT

29

43DM10

NUT

30

5HM14

CLAMP

31

5HM14

CLAMP Was 5HM15 - A

32

5HM23

CLAMP

33

6553411

BUSHING 0.38'' ID

34

HOSE NLA - 9'' (229 mm) long - Order Ref. 46

35

7101291

ELBOW Was 6681462 - A

36

6599645

PLUG, STEEL

37

6650239

SCREEN, FUEL PICKUP fuel

38

6661213

RING, COMPRESSION compression

39

6666302

FITTING, ELBOW barbed - Was 7126672 - B

40

7179838

SENSOR FUEL Was 6680437 - A

41

79K14

O RING 10

42

6577822

HOSE bulk - sold per foot

43

6578169

HOSE bulk - sold per foot - 0.19'' ID

44

6578172

HOSE bulk - sold per foot

45

79K5

O RING 10

46

6569752

HOSE BULK/FT bulk - sold per foot

47

6717402

BUSHING 0.54'' ID

48

6674264

RETAINER NUT

49

5HM55

CLAMP

50

30H57

CLAMP
