Запчасти Bobcat 331 ELECTRICAL (Engine) ELECTRICAL SYSTEM

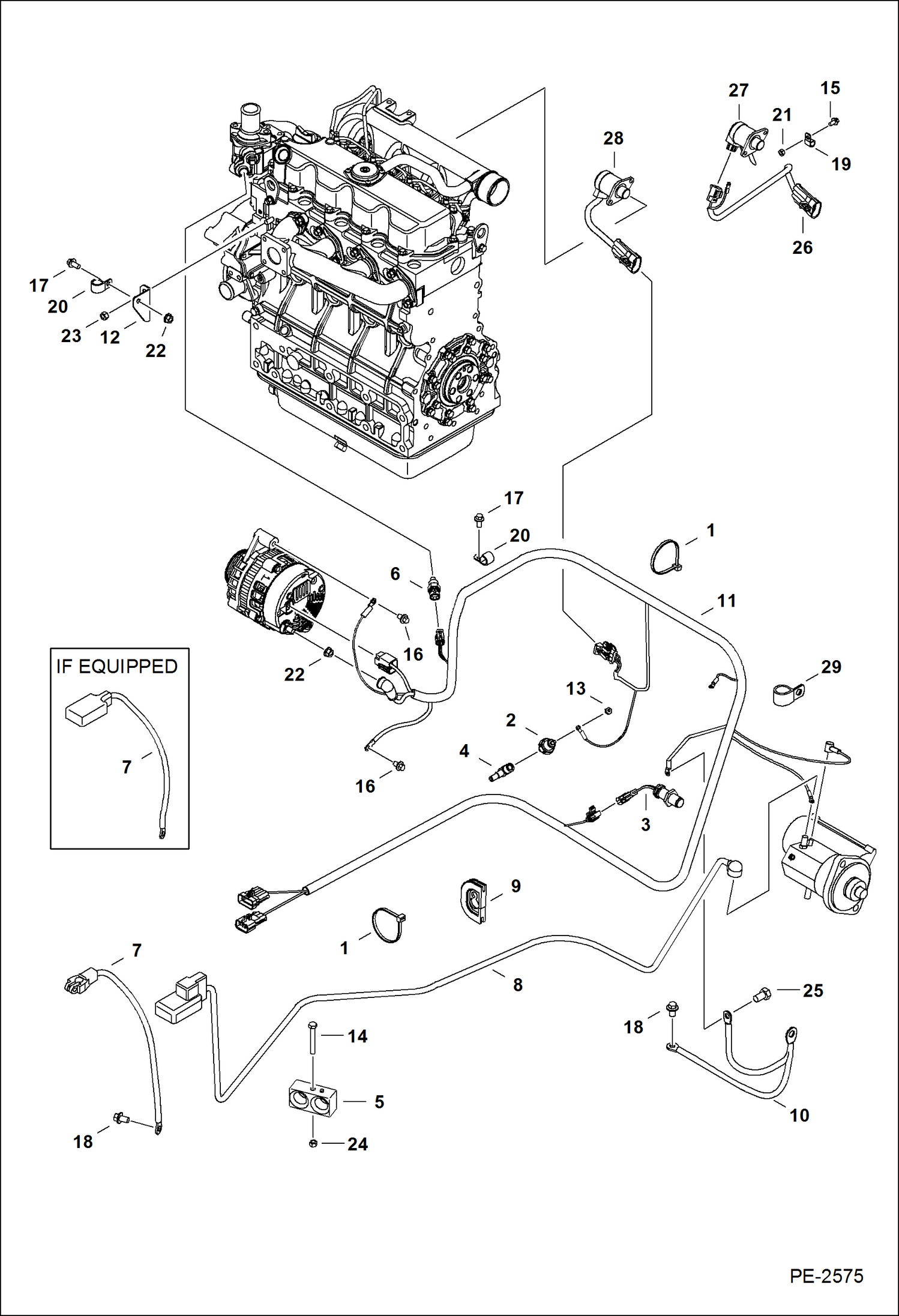

Схема запчастей Bobcat 331 - ELECTRICAL (Engine) ELECTRICAL SYSTEM

Артикул

Название

Примечание

Количество

1

6624289

STRAP, TIE

2

6631010

SWITCH, PRESS OIL ENG eng. oil press

3

6684037

SENSOR eng. speed

4

6707040

ELBOW

5

6715197

CLAMP

6

6718414

SENDER, TEMP ENG

7

6807431

CABLE

8

6809043

CABLE

9

6810364

GROMMET

10

6810763

CABLE

11

HARNESS,ENGINE NLA -W/Ref. 26- Order 6817272 harness -Also Order Ref. 26 if Ref. 27 is used - Was 6817272 - A

11

6817272

HARNESS,ENGINE W/O Ref. 26

12

7100529

BRACKET

13

12D8

NUT

14

1CM860

BOLT

15

29CM612

BOLT, FLANGED

16

BOLT NLA - Order Ref. 17 - Was 29CM812 - B

17

29CM816

SCREW

18

29CM1016

BOLT

19

30H26

CLIP Was 30H21 - B

20

30H37

CLAMP

21

43DM6

NUT

22

43DM8

NUT

23

4DM8

NUT

24

53DM8

NUT

25

6CM1220

BOLT

26

6814830

HARNESS fuel shut-off

27

SOLENOID NLA- fuel shutoff W/molded connector - Order Ref. 28 - Was 6684826 - A

28

6691498

SOLENOID, SHUTOFF FUEL 240 mm (9.45'') lead

29

30H65

CLIP

Выбрано товаров: 30
