Запчасти Bobcat 331 SWIVEL JOINT HYDRAULIC SYSTEM

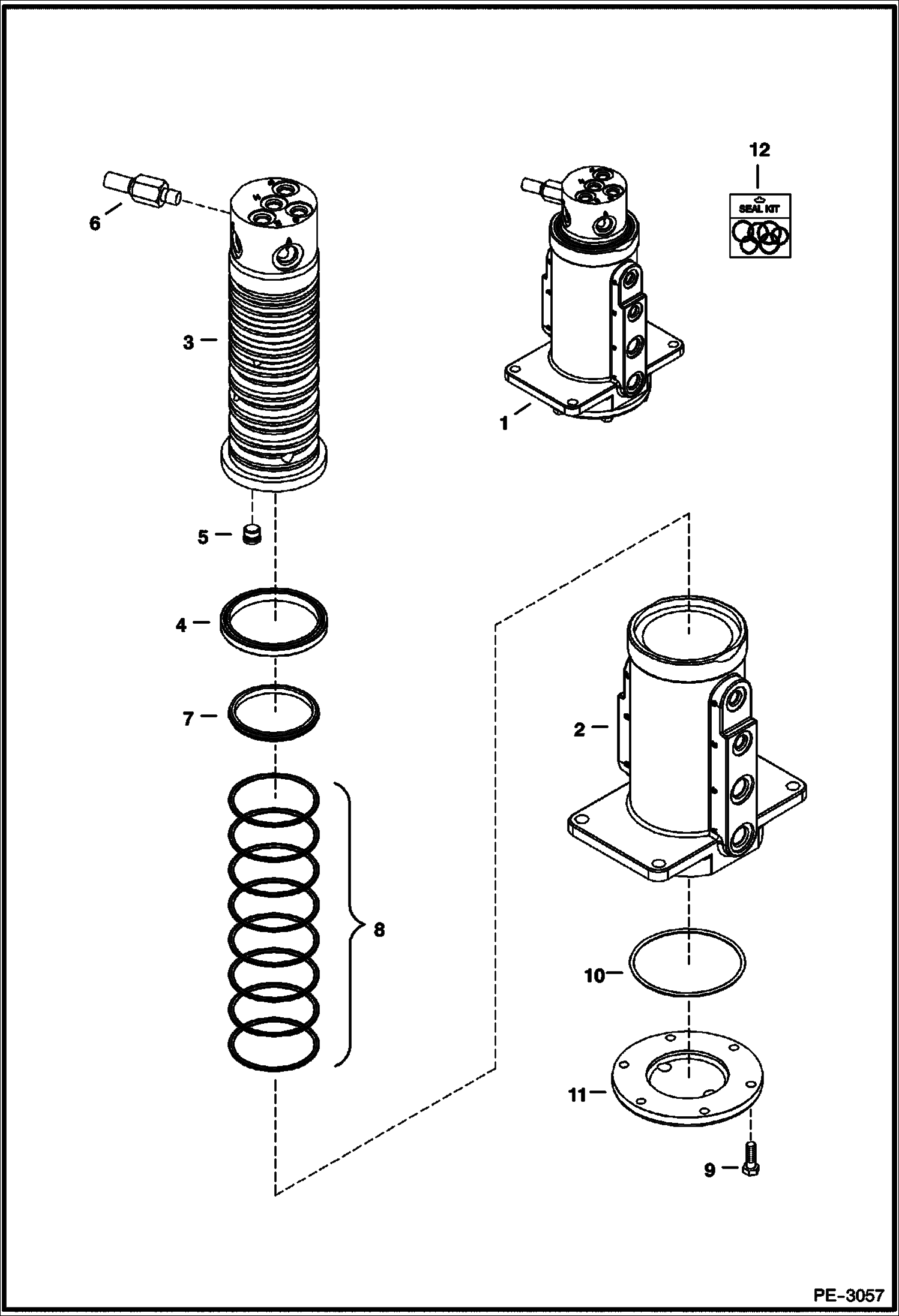

Схема запчастей Bobcat 331 - SWIVEL JOINT HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

7123864

SWIVEL ASSY W/Ref. 2-11 - Was 6800524 - A

2

7123863

BARREL Was 6664906 - A

3

6664907

ROTOR

4

6669253

SEAL

5

90KV5

PLUG Was 6809198 - D

5

79K6

O RING 10

6

6810029

STOP

7

7100535

SEAL Was 6810610 - A

8

6810813

SEAL, OIL 2 pc seal

9

1CM825

BOLT

10

58K241

O RING

11

6664905

COVER

12

6664908

KIT, SEAL W/Ref. 4, 7, 8 & 10

Выбрано товаров: 13
