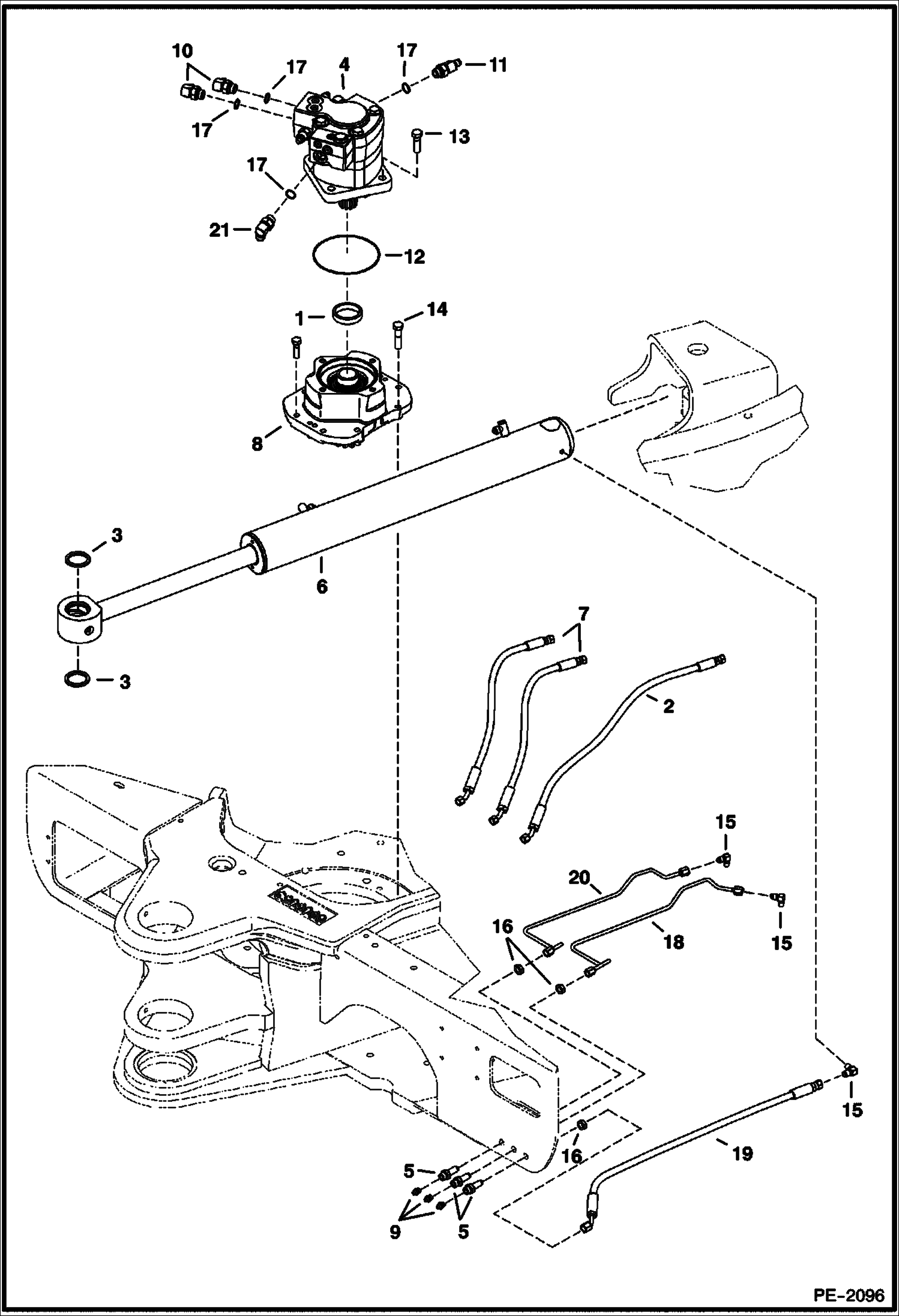

Запчасти Bobcat 331 HYDRAULIC CIRCUITRY (Upper) HYDRAULIC SYSTEM

1

6513681

BEARING

2

6578185

HOSE remote grease

3

6660075

SEAL dust

4

MOTOR See Illustration SWING MOTOR/ MS1847 - Was 6686524 - A

5

6807184

FITTING

6

CYLINDER See Illustration SWING CYLINDER/ C3287

6

6675723

LOCK W/nuts, W/O keys

7

6808692

HOSE remote grease

8

CARRIER See Illustration MOUNT ASSY/ PE1154

9

10H25

FITTING, GREASE 5

10

17KB0608

FITTING, HYD ELBOW W/Ref. 17

11

21KB0608

FTG Hyd Straight Tee straight - W/Ref. 17

12

25K30508

O-RING, 10 hydraulic - W/Ref. 17

13

55CM1240

SCREW

14

55CM1250

SCREW

15

83F3

ELBOW 5

16

86F3

LOCKNUT

17

79K8

O RING 10

18

7102802

TUBE remote grease

19

7106607

HOSE remote grease - Was 6808359 - B

20

7102801

TUBE remote grease

21

15KB0808

FITTING, HYD CONNECTOR

21

17KB0808

FITTING, HYD ELBOW

21

79K8

O RING 10
